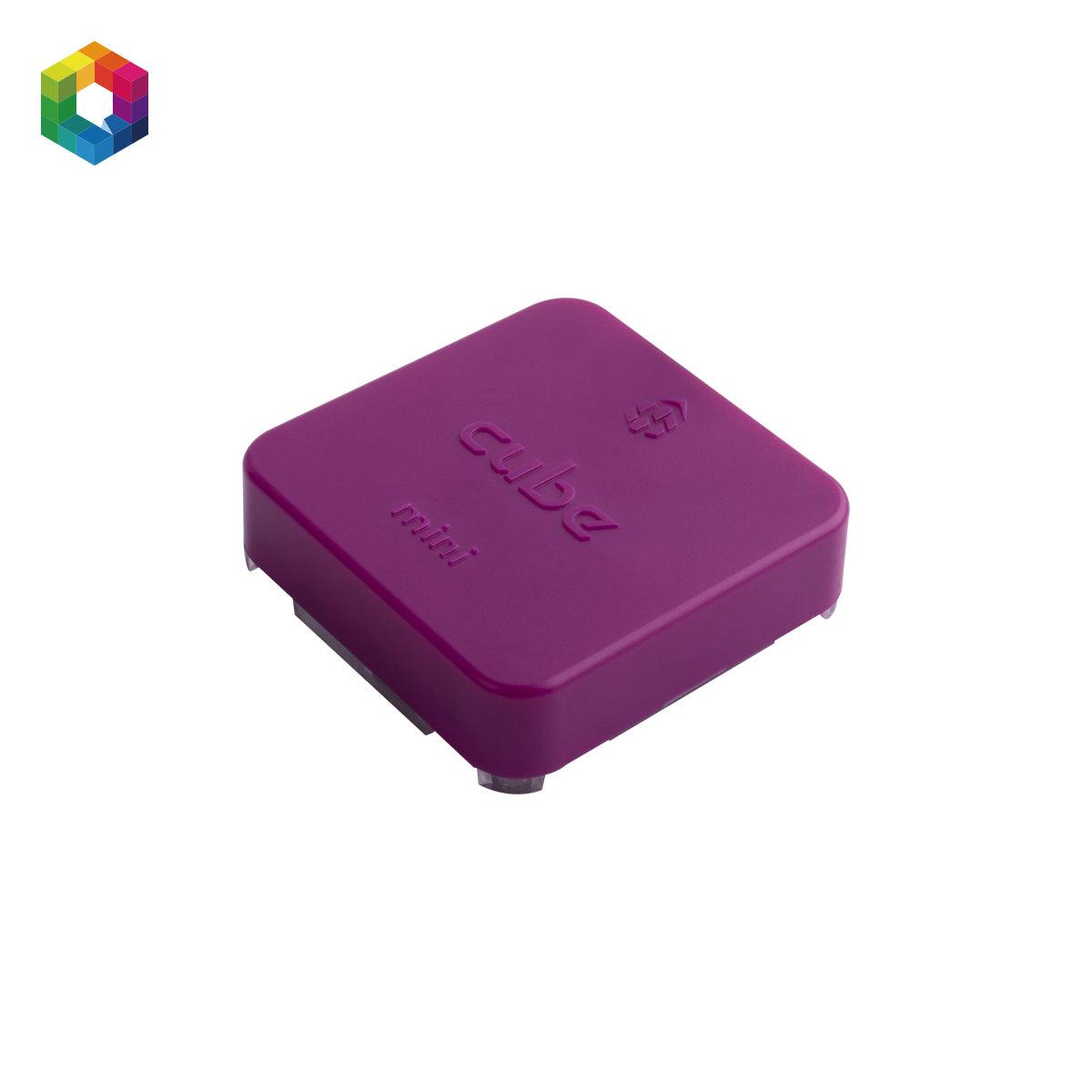

The Cube purple mini set

The Cube purple mini set

SKU:HX4-06041, HX4-06059

Regular price €379,00 EUR
Regular price Sale price €379,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Need more?

This product is available on backorder. Please note that the shipping time can take up to 2 weeks. Items in stock will be shipped directly.

Just add the amount you need and click on "Add to cart".

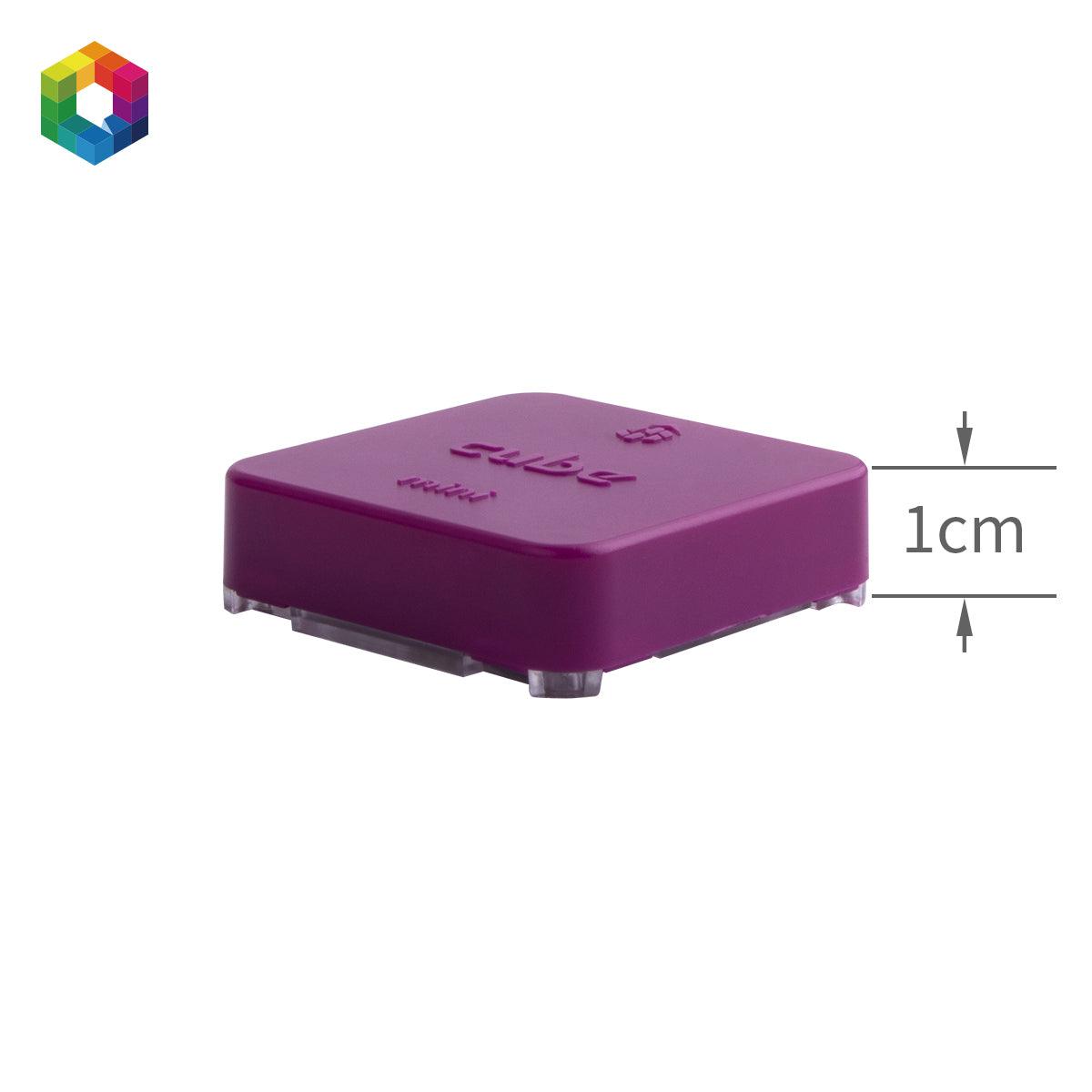

CUBE purple set is the smaller option for the cube autopilots. Its small profile allows it to be placed in smaller UAV's and drones. Single redundant for rover applications or less demanding drones.

for more information : CUBE module overview

or take a look on our support page

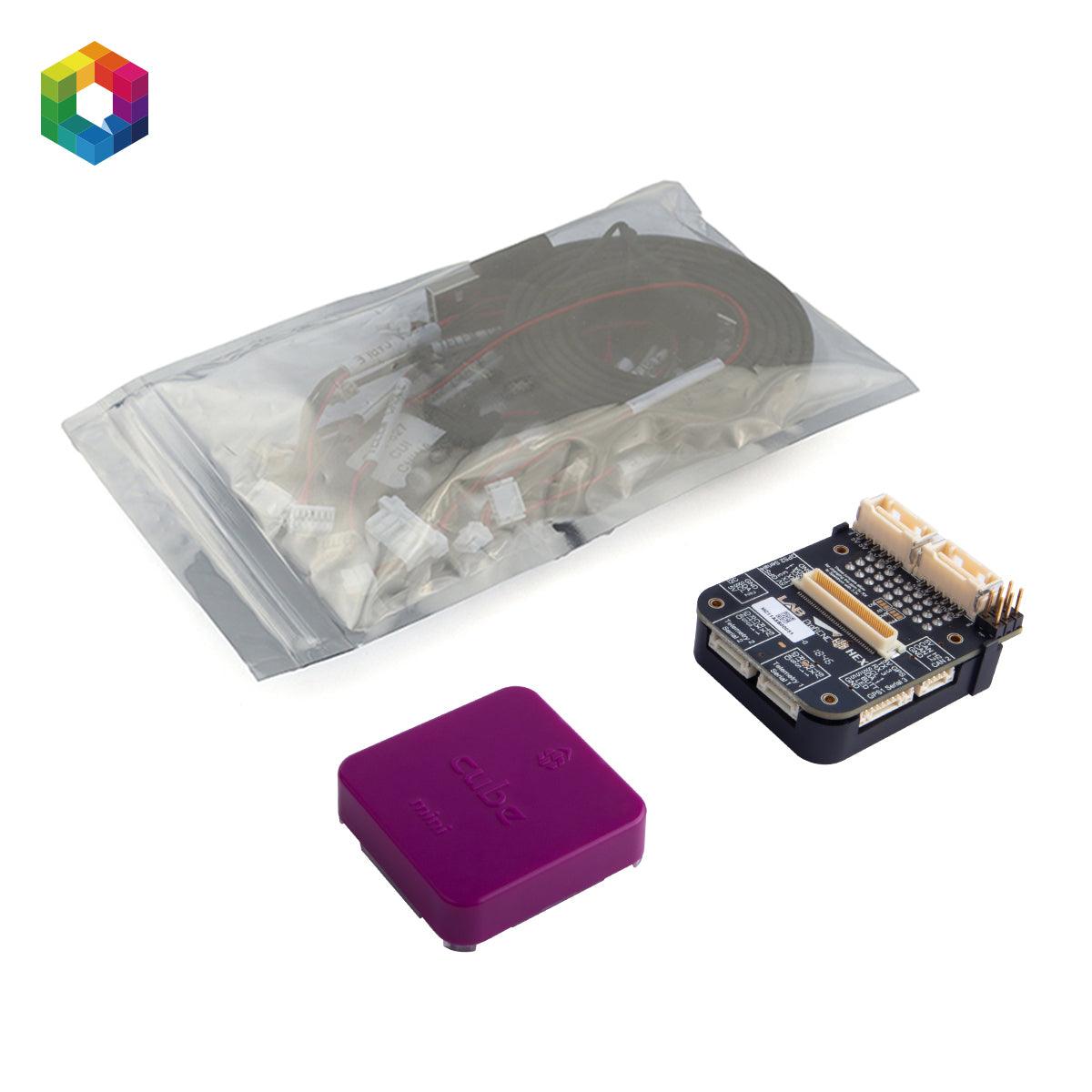

INSIDE THE CUBE Purple set

An STM32F427 Rev 3 Flight management unit. (where the flight controller lives.)

An STM32F100 I/O processor with pass through capabilities for failsafe. (deals with the Receiver and outputs )

1 Mini carrier board

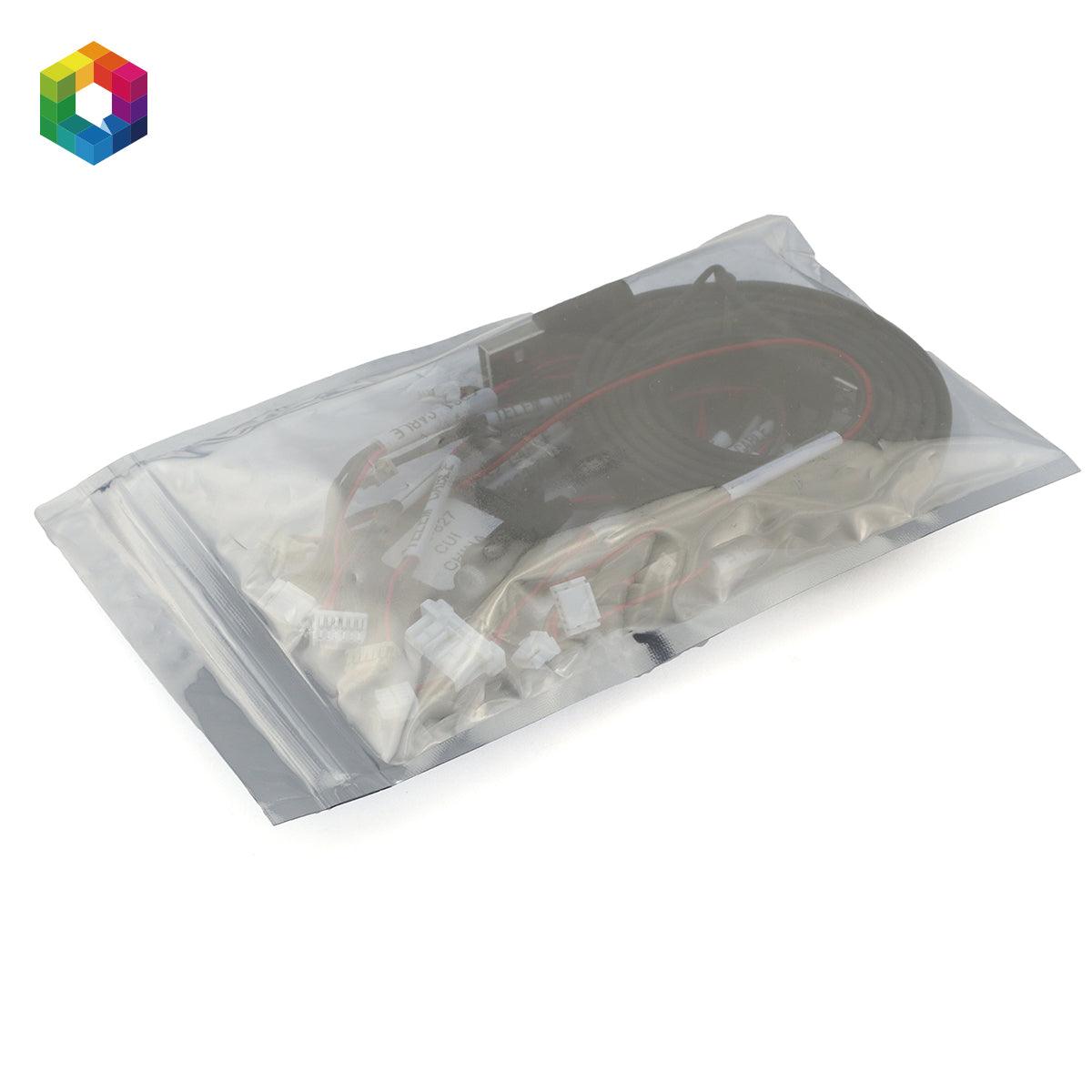

And a mini carrier board cable set

IMU's
1 Fixed 10 Axis IMU on the main Main board.

(MPU9250 3 axis Accell, 3 axis gyro, and 3 axis mag, MS5611 Barometer)

I/O ports

  • 14 PWM servo outputs (8 from IO, 6 from FMU).

  • R/C inputs for CPPM, Spektrum / DSM and S.Bus.

  • Analogue / PWM RSSI input.

  • S.Bus servo output.

  • 5 general purpose serial ports, 2 with full flow control

  • Two I2C ports

  • One SPI port (un-buffered, for short cables only not recommended for use).

  • Two CAN Bus interface. (CAN FD for BlueH7 and Orange with CubePilot Logo)

  • 3 Analogue inputs

  • High-powered piezo buzzer driver. (On expansion board)

  • High-power RGB LED. (I2C driver compatible Connected externally only)

  • Safety switch / LED.
