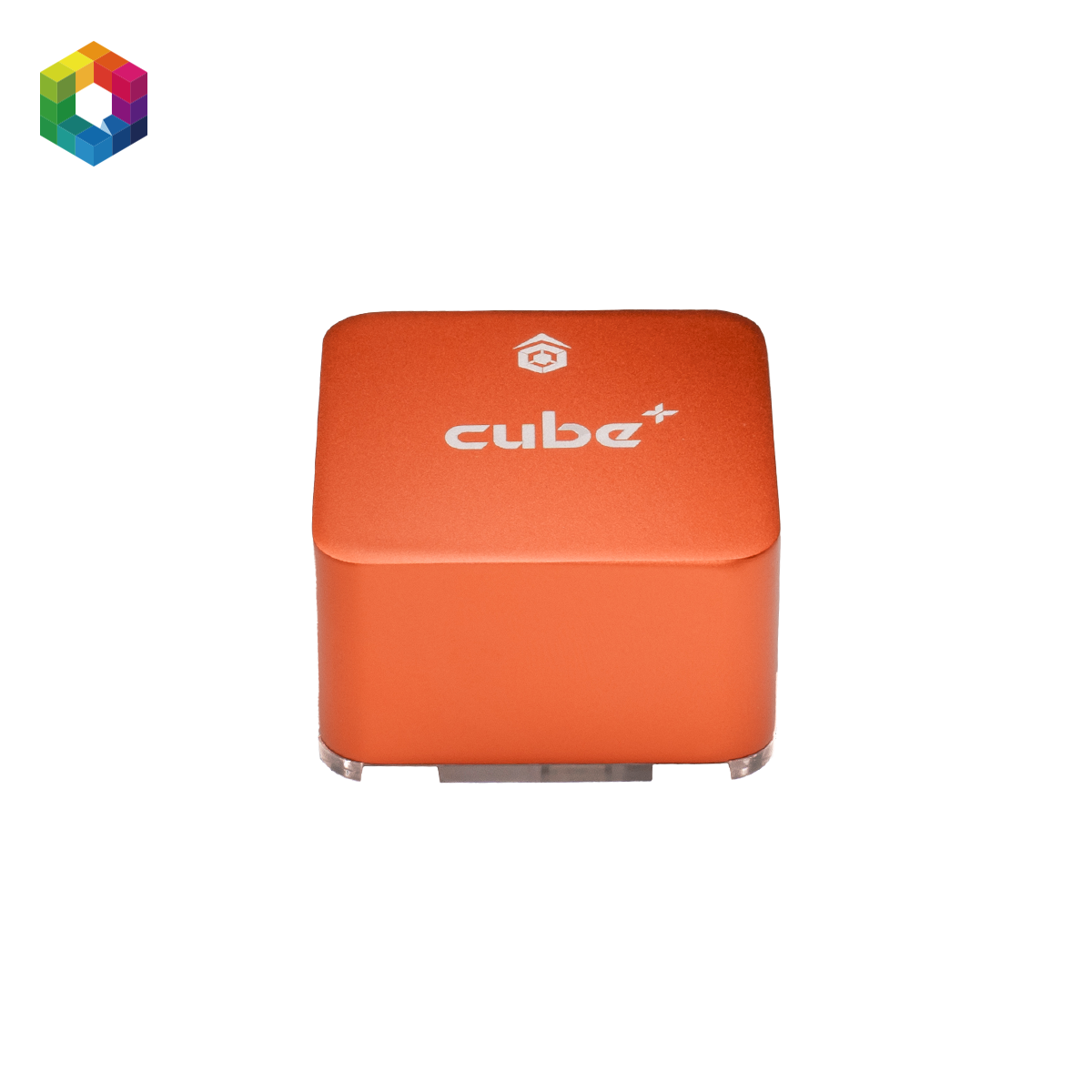

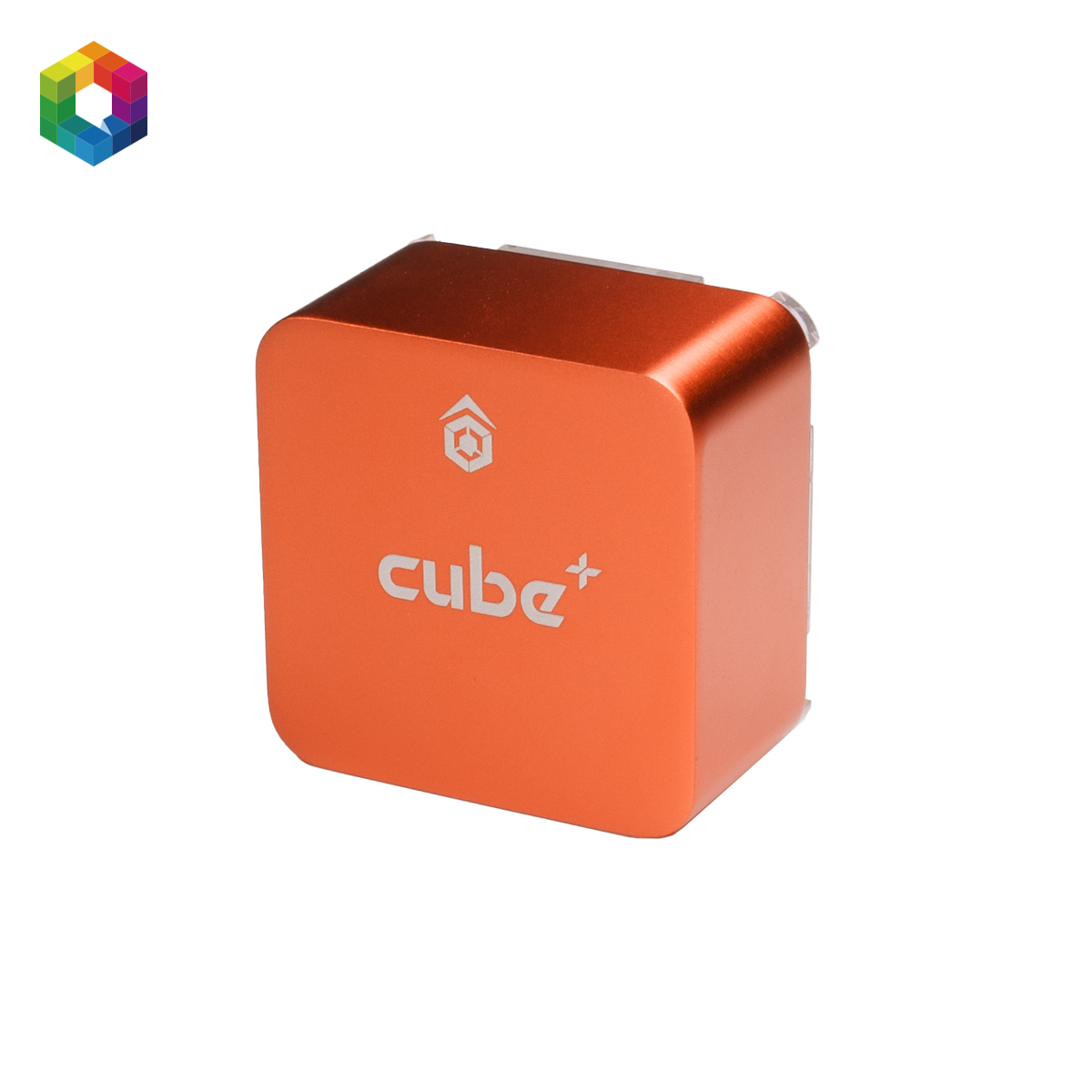

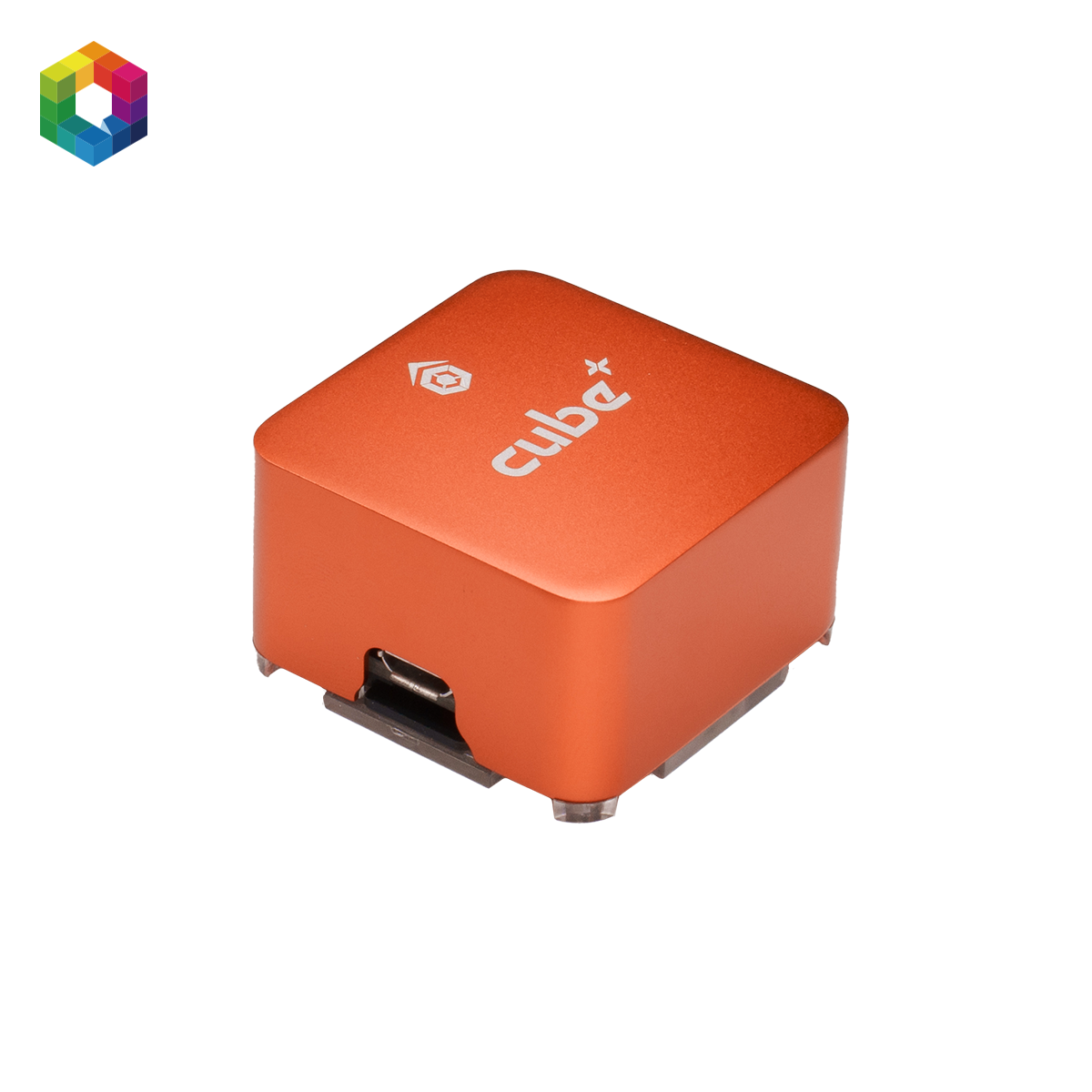

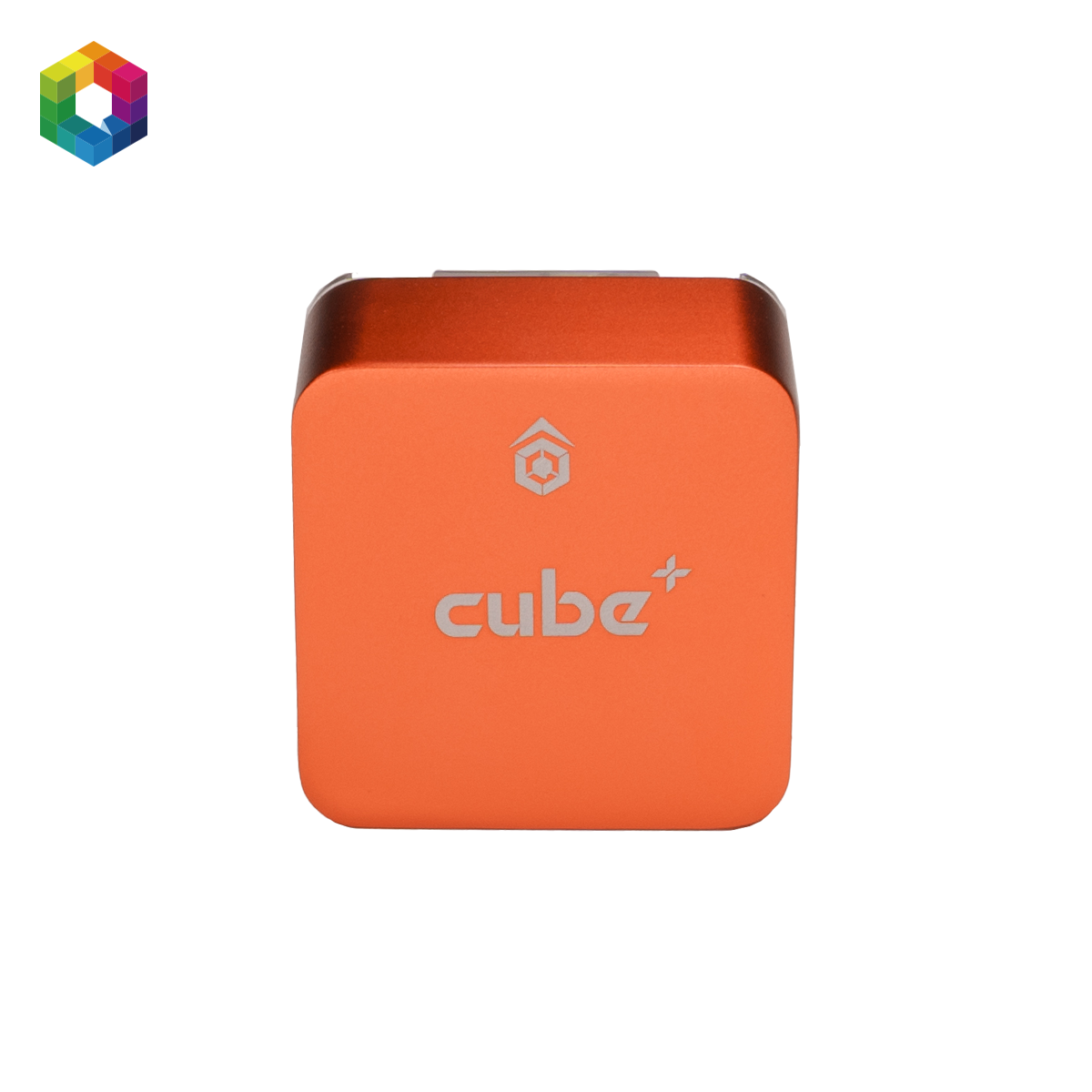

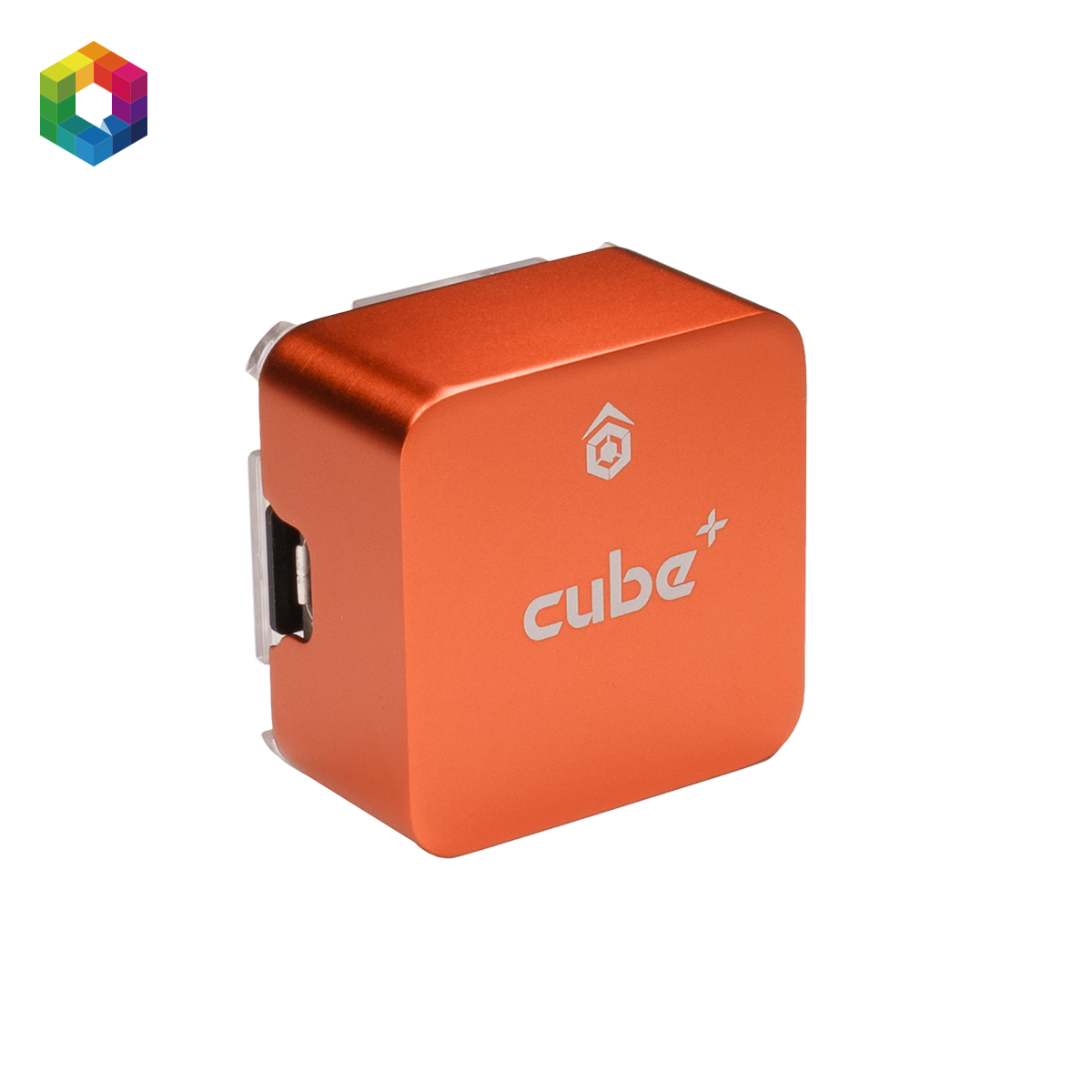

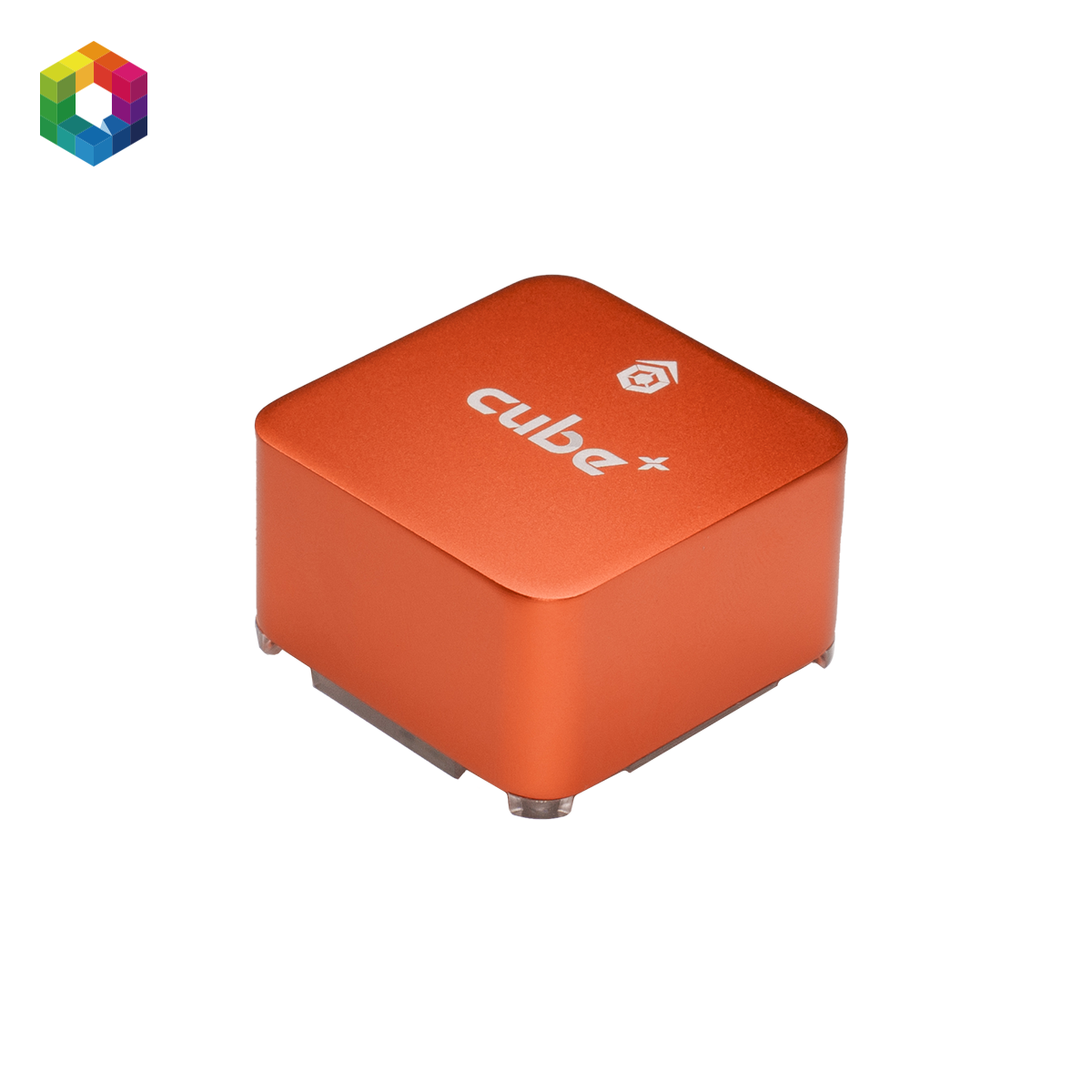

The Cube Orange+
The Cube Orange+
SKU:HX4-06214
22 in stock
Need more?
Need more?
This product is available on backorder. Please note that the shipping time can take up to 2 weeks. Items in stock will be shipped directly.
Just add the amount you need and click on "Add to cart".
Cube Orange+ Autopilot: exceptional reliability and control
Elevate Your Drone's Performance with Cube Orange
The Cube Orange+ (IMU v8) Autopilot represents the cutting edge in autopilot technology, tailored for use with Ardupilot or PX4 systems. Featuring triple-redundant sensors, it ensures reliable and precise control for the most demanding drones and UAVs. Please note that this package includes the autopilot unit only; you will need a compatible carrier board. We recommend the ADS-B carrier board set or the Kore carrier board, with the ADS-B set being the more economical option.
Key Features of the Cube Orange+
Triple-redundant sensors for reliability
- Provides exceptional reliability and accuracy, reducing worries about sensor failure and enhancing flight stability.
Designed for effortless Compatibility
- Specifically designed for seamless integration with Ardupilot and PX4 systems, unlocking your drone's full potential.
Advanced control capabilities
- Ideal for high-demand UAV and drone applications, offering the precision needed for complex missions.
Economical options available
- Choose between the cost-effective ADS-B carrier board set or the Kore carrier board, both designed to meet different budget needs.
What's inside
- 1x Cube Orange+ autopilot unit
Note: required carrier board is not included, but essential for operation. Recommended options are the ADS-B carrier board set or the Kore carrier board.
Specifications
- IMU Board: Vibration Damped IMU board version 2 (compatible with Cube Orange, Cube BlueH7, and Cube Yellow)
-
Sensors:
- ICM20602
- ICM 20948
- MS5611 Barometer
- All sensors connected via SPI
-
I/O Ports:
- 14 PWM servo outputs (8 from IO, 6 from FMU)
- R/C inputs for CPPM, Spektrum/DSM, and S.Bus
- Analogue/PWM RSSI input
- S.Bus servo output
- 5 general-purpose serial ports (2 with full flow control)
- Two I2C ports
- One SPI port (un-buffered, for short cables only)
- Two CAN Bus interfaces (CAN FD for BlueH7 and Orange with CubePilot Logo)
- 3 Analogue inputs
- High-powered piezo buzzer driver (on expansion board)
- High-power RGB LED (I2C driver compatible, connected externally only)
- Safety switch/LED
Support and assistance
For detailed information on installation and operation, please visit CubePilot's user guide. If you need personalized advice on your drone build and autopilot selection, feel free to contact us.
Manufactured by CubePilot
