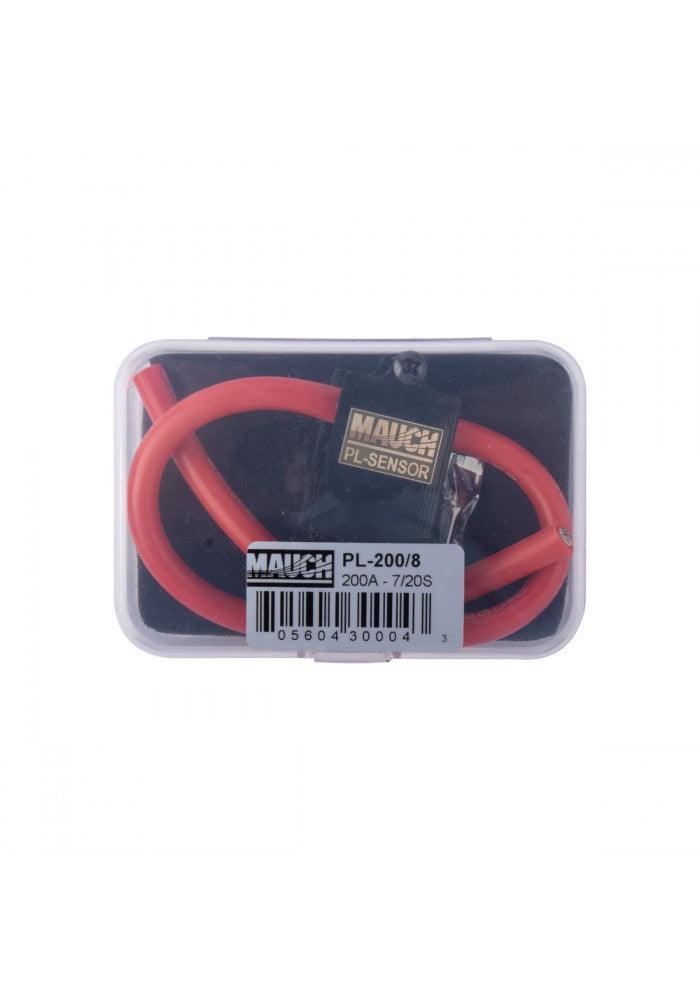

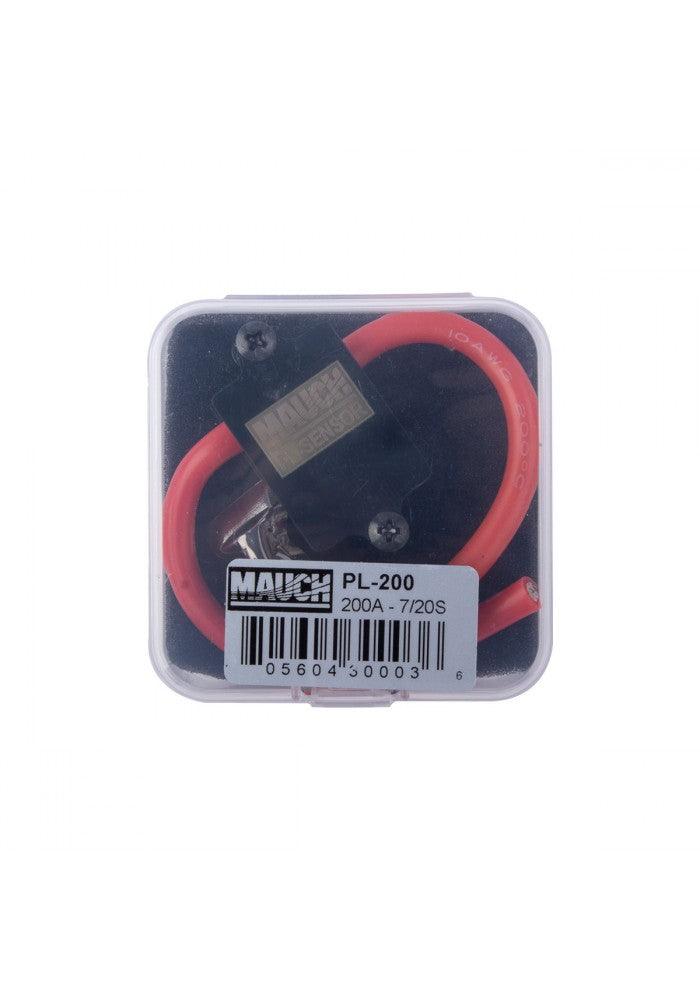

Mauch PL-200 200A Current and Voltage Sensor
The Mauch PL-200 is a 200A current and voltage measurement sensor board for professional UAV power systems. It is based on the Allegro ACS770-250U Hall sensor and is designed for high-current drone, VTOL, and robotics applications.
This sensor board connects directly to compatible Mauch Premium-Line BEC modules or the Mauch Sensor Hub X2-V2. It is supplied with two 10 cm red 10 AWG wires as standard.
Key Features
- 200A current measurement – Designed for high-current UAV power monitoring.
- Allegro Hall sensor – Based on the ACS770-250U current sensor.
- Voltage measurement support – Supports up to 14S / 60 V with solder bridge open, or up to 7S / 30 V with solder bridge closed.
- Mauch system compatibility – Connects directly to Premium-Line BEC modules and Sensor Hub X2-V2.
- 10 AWG wiring included – Supplied with two 10 cm red 10 AWG wires.
- Available with or without CFK enclosure – Choose the version that fits your integration requirements.
Technical Specifications
| Product type | Current and voltage measurement sensor board |
| Current measurement | Up to 200A |
| Sensor | Allegro ACS770-250U Hall sensor |
| Voltage range | Up to 14S / 60 V with solder bridge open; up to 7S / 30 V with solder bridge closed |
| Compatibility | Mauch Premium-Line BEC and Sensor Hub X2-V2 |
| Connector | Molex / Clik-Mate / 1.25 mm / 4-pin, 5023800400 |
| Wire | 2x 10 cm red 10 AWG wire |
Size and Weight
| Without CFK enclosure | 27.5 x 19.5 x 10.5 mm / 17 g, including 2x 10 cm 10 AWG wires |
| With CFK enclosure | 43.5 x 23.0 x 15 mm / 22 g, including 2x 10 cm 10 AWG wires |
| Delivery box | 55 x 55 x 20 mm / 40 g |
Recommended Use
The Mauch PL-200 is suitable for professional UAVs and high-current power systems where accurate current and voltage telemetry is required. It is especially useful for larger multirotors, VTOL aircraft, robotics platforms, and payload-heavy builds using compatible Mauch BEC or sensor hub hardware.
For related Mauch sensors, BECs, and power modules, view our Power Management for Drones collection.
Support and Assistance
Please check the official manual for solder bridge configuration and installation details. If you need help choosing the right Mauch sensor or power module for your drone project, please contact Aeroboticshop.
Manufactured by Mauch.
