Hexsoon PDB
Hexsoon PDB
SKU:HS011
Low stock: 10 left
Need more?
Need more?
This product is available on backorder. Please note that the shipping time can take up to 2 weeks. Items in stock will be shipped directly.
Just add the amount you need and click on "Add to cart".
Couldn't load pickup availability

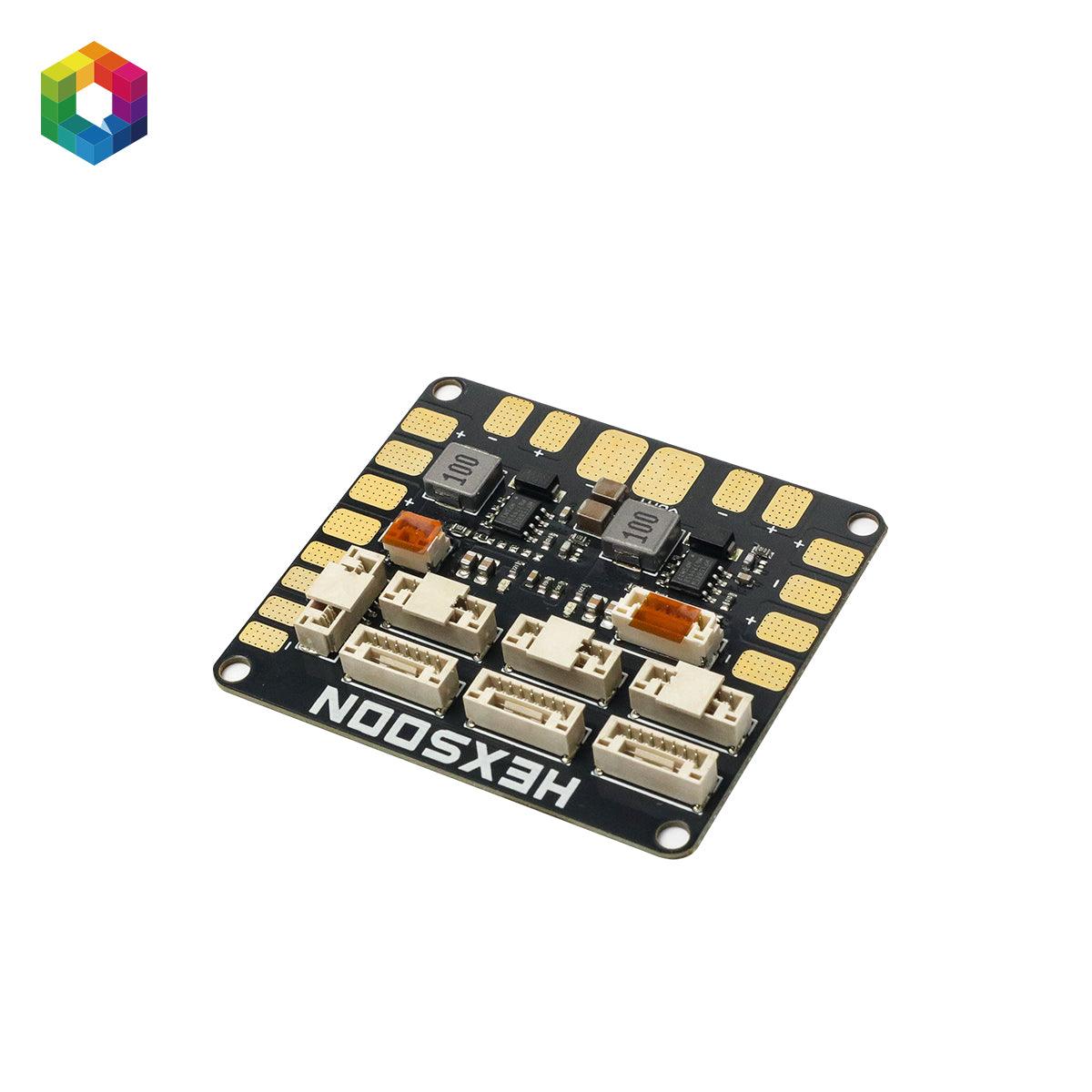

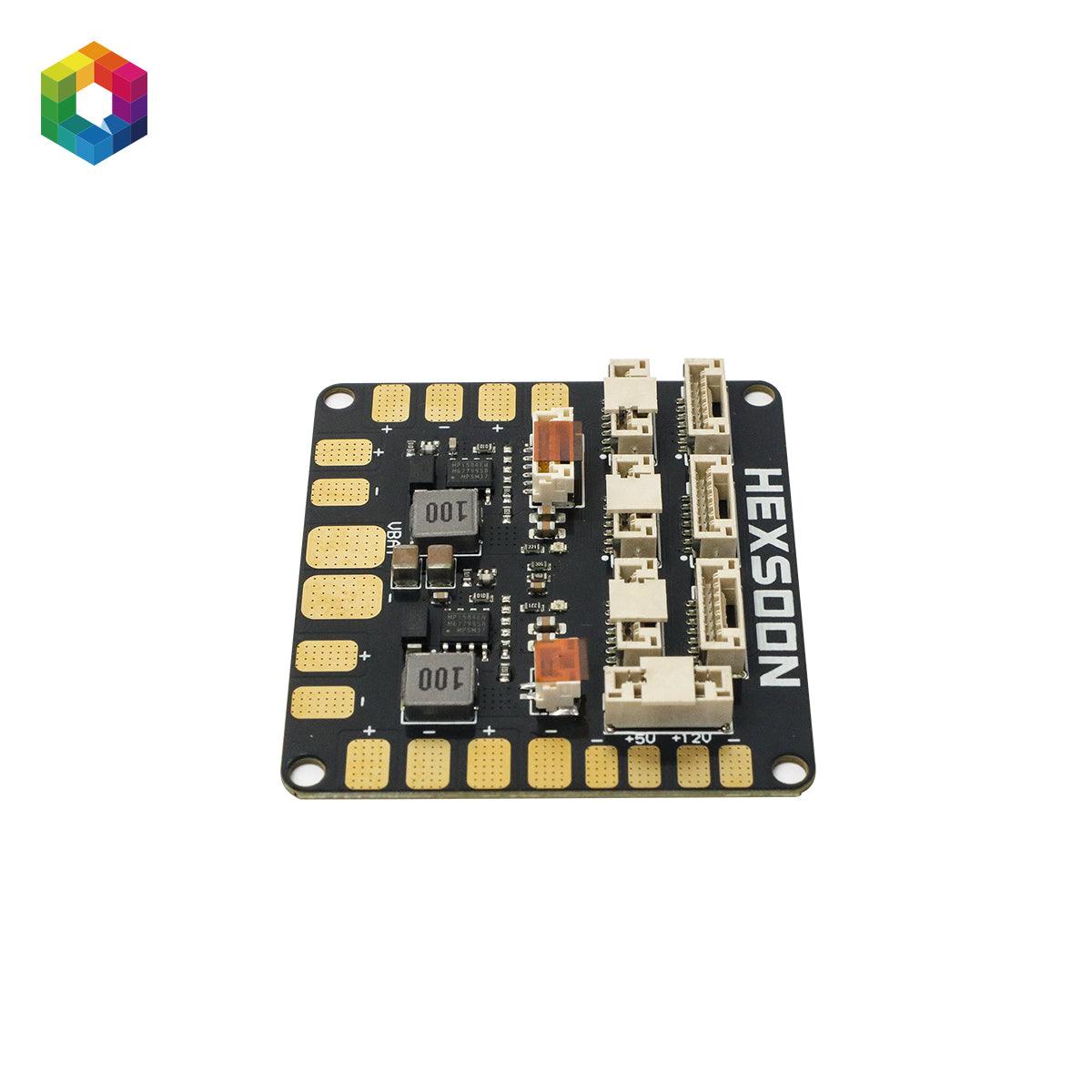

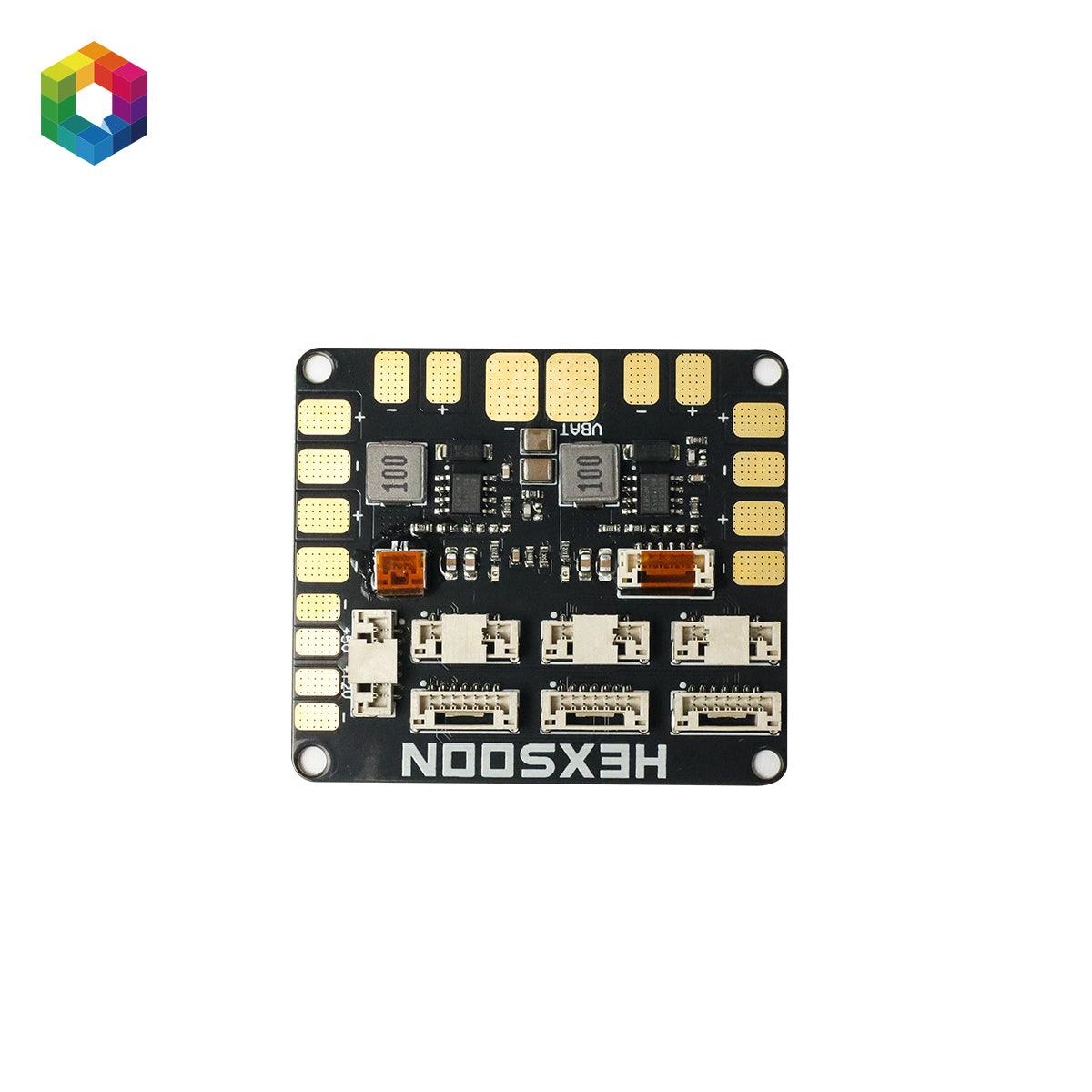

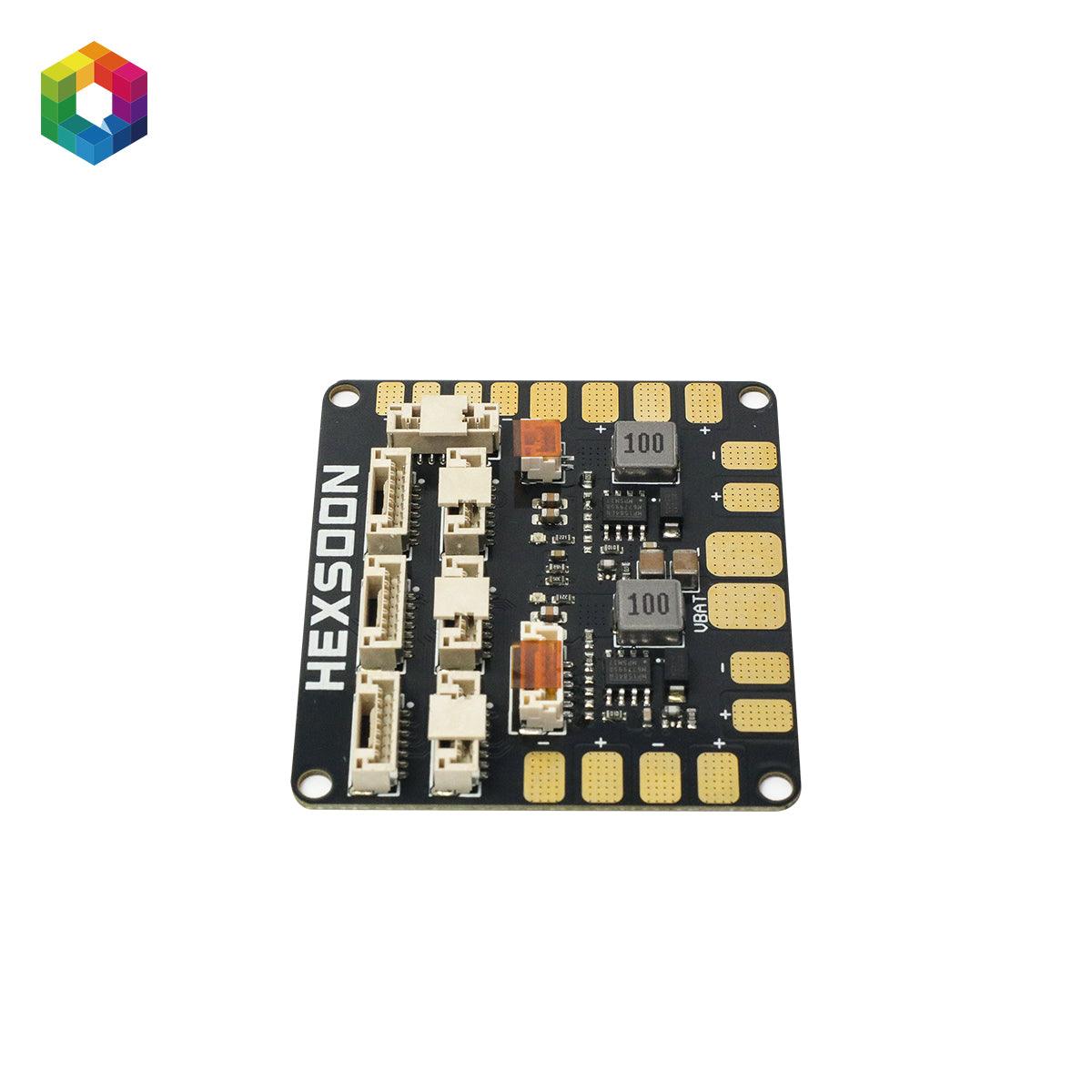

The Hexsoon PDB-40A offers an all-in-one solution with a power distribution board (PDB) and multiple BECs. It is designed for use with the EDU450 frame and the Cube Orange+ standard set but is also a cost-effective and reliable option for various drone projects.
Specifications
- Dimensions: 57.2 x 50.5 x 5.2 mm
- Mounting: 52 x 45.3 mm, Φ3 mm
- Total Weight: 14.5 g
- Construction: 4oz copper, 4-layers & 1.0mm PCB
- ESC Solder Tabs: Total 6 pairs
- Output Indicators: 5V & 12V LED indicators
- ESC Peak Current: 6x40A
- ESC Continuous Current: 6x25A
Compatibility
The Hexsoon PDB-40A is specifically designed for the EDU 450 frame and the Cube Orange+ standard set, but its versatile design makes it suitable for many other drone projects as well.
Support and assistance
If you need any advice or additional information about this product or your drone project, feel free to contact us.
Manufactured by CubePilot
