HereFlow optical flow sensor
HereFlow optical flow sensor
SKU:HX4-06076
Regular price
€89,00 EUR
Regular price
Sale price
€89,00 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Need more?
Need more?
This product is available on backorder. Please note that the shipping time can take up to 2 weeks. Items in stock will be shipped directly.
Just add the amount you need and click on "Add to cart".
Couldn't load pickup availability

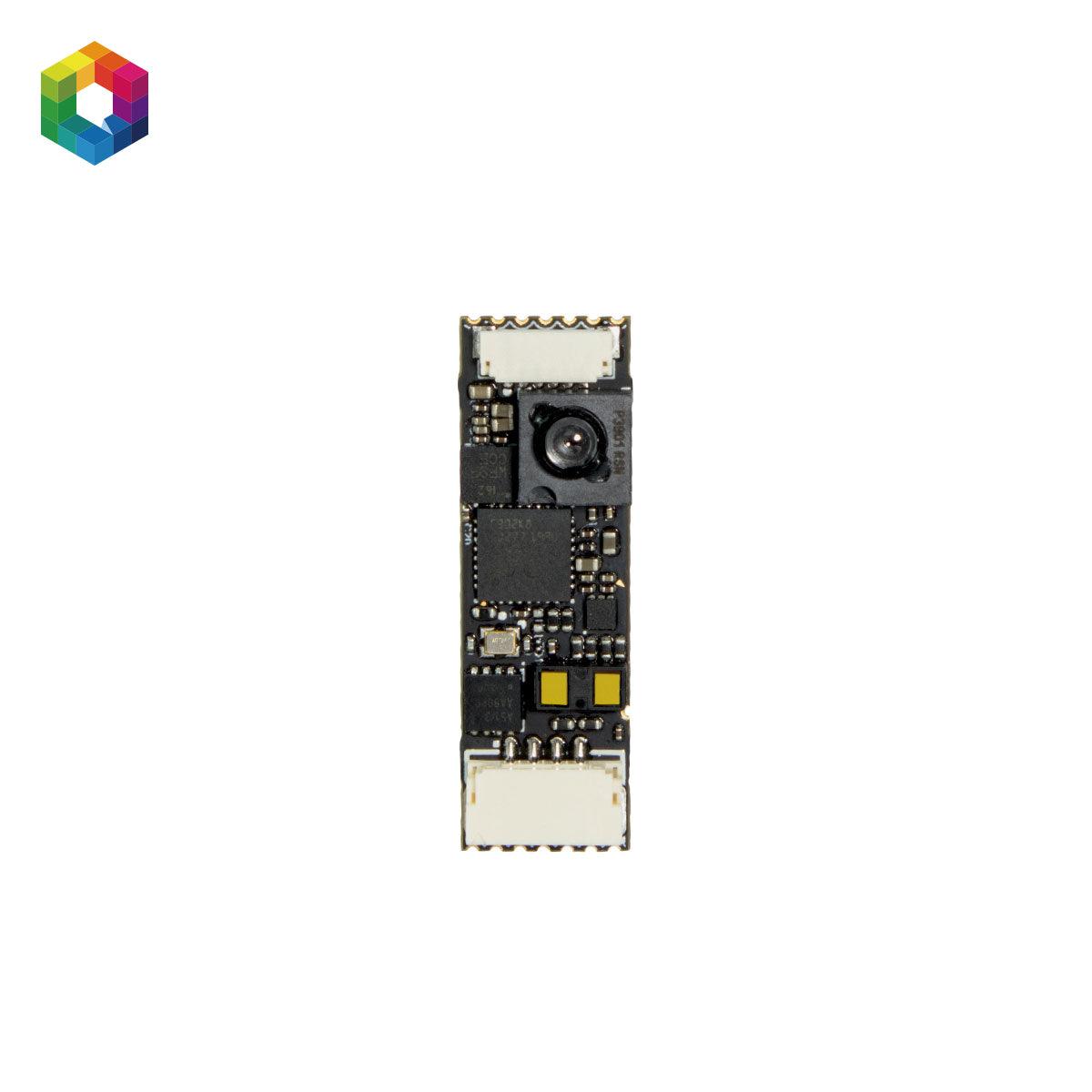

The Here Flow drone optical flow sensor is specially designed for Ardupilot and PX4. This ultra-small lidar and optical module provides reliable horizontal navigation in areas where GPS signals are unavailable, making it an essential tool for drones and UAVs.
- Ultra small lidar module: provides precise horizontal navigation without GPS.
- CAN protocol: ensures more reliable communication.
- Built-in IMU module: enhances stability and navigation accuracy.
- Wide effective range: optical Here Flow Sensor ranges from 80 mm to infinity.
- Specialized design: tailored for use with Ardupilot and PX4 systems.

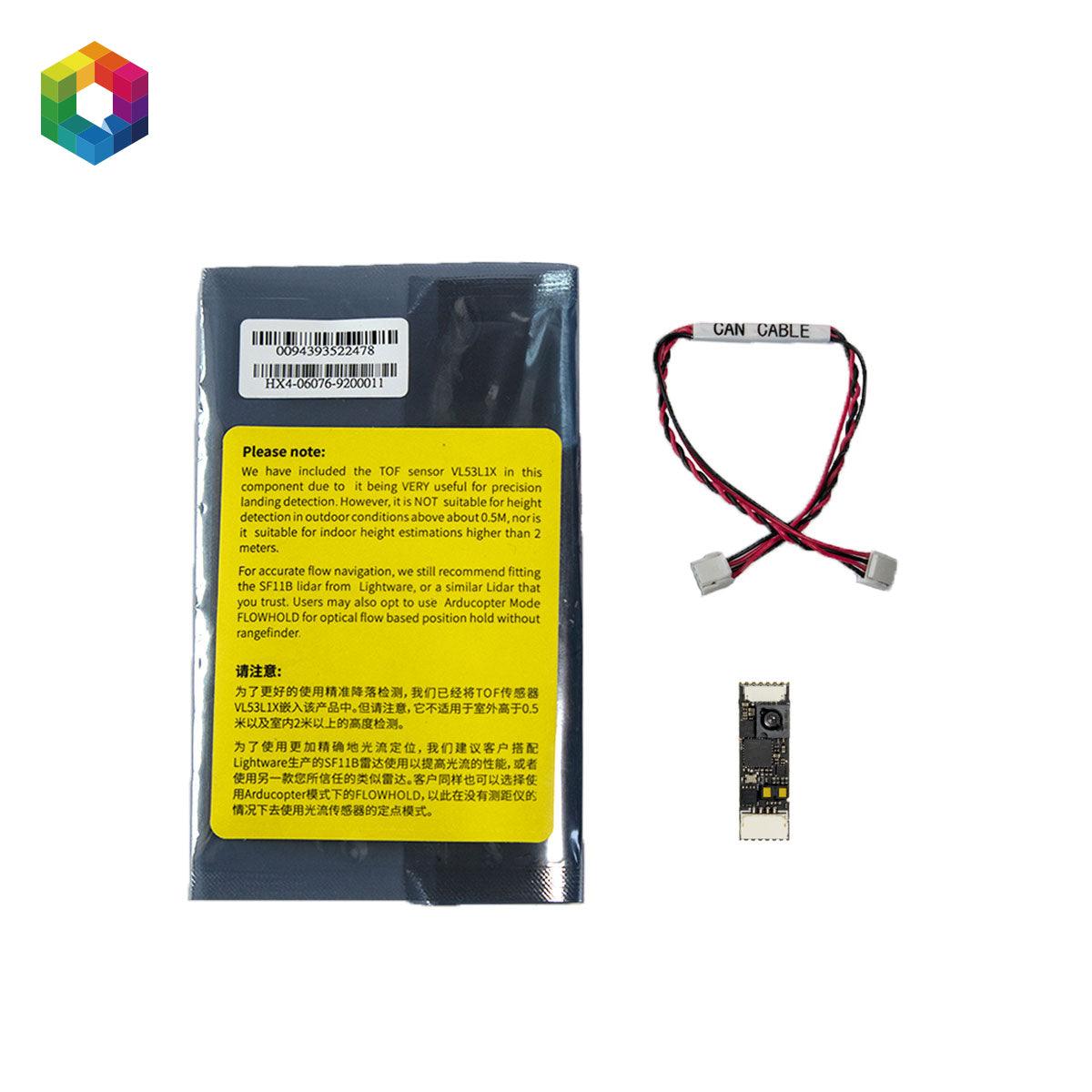

What's inside
- 1x Optical Here Flow sensor
- 1x Built-in Ultra small lidar module
- 1x Built-in IMU module
- 1x PMW3901 optical sensor
Specifications
Optical Here Flow Sensor
- Range: 80 mm to infinity
- Field of view: 42 degrees
- Maximum movement speed: 7.4 rad/s
- Minimum illumination: >60 lux
- Infrared emitter: 940 nm invisible light emission (Class1)
- Operating temperature: -20 to +70 °C
- Interface: CAN
- Power supply: 5V
Lidar Specification
- Measuring frequency: Up to 50 Hz
- Field of view: 27 degrees
- Longest distance: 2m
- Accuracy: ±3%
- Infrared emitter: 940 nm invisible light emission (Class1)
- Operating temperature: -20 to +70 °C
- Interface: CAN
- Power supply: 5V
Support and assistance
For more information, visit the ArduPilot documentation or contact us.
Manufactured by CubePilot
