CubePilot EDU450 Carrier Board
Important: carrier board only.
This product is the EDU450 carrier board. A Cube autopilot, GPS module, ESCs, motors, batteries, and other drone components are not included unless explicitly listed.

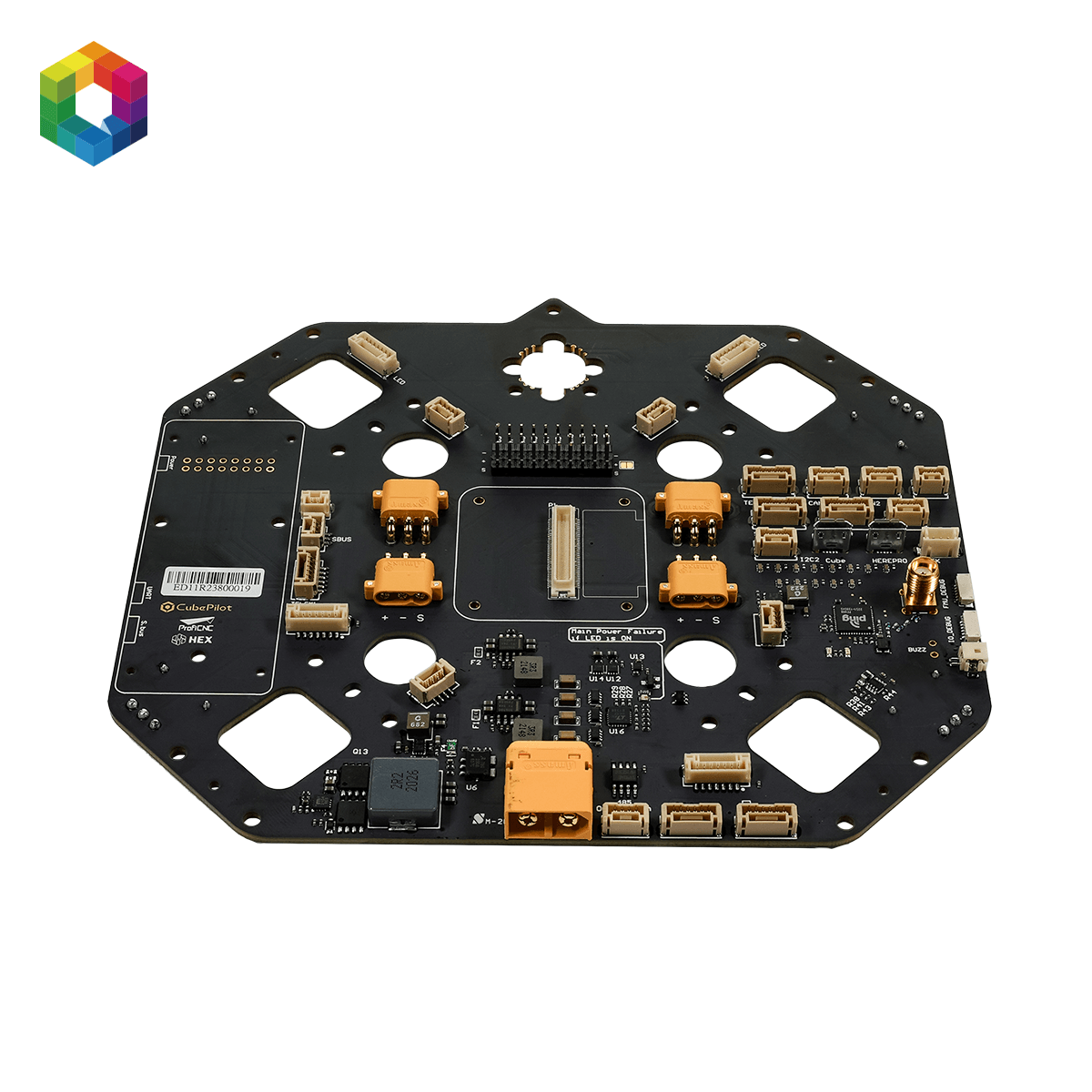

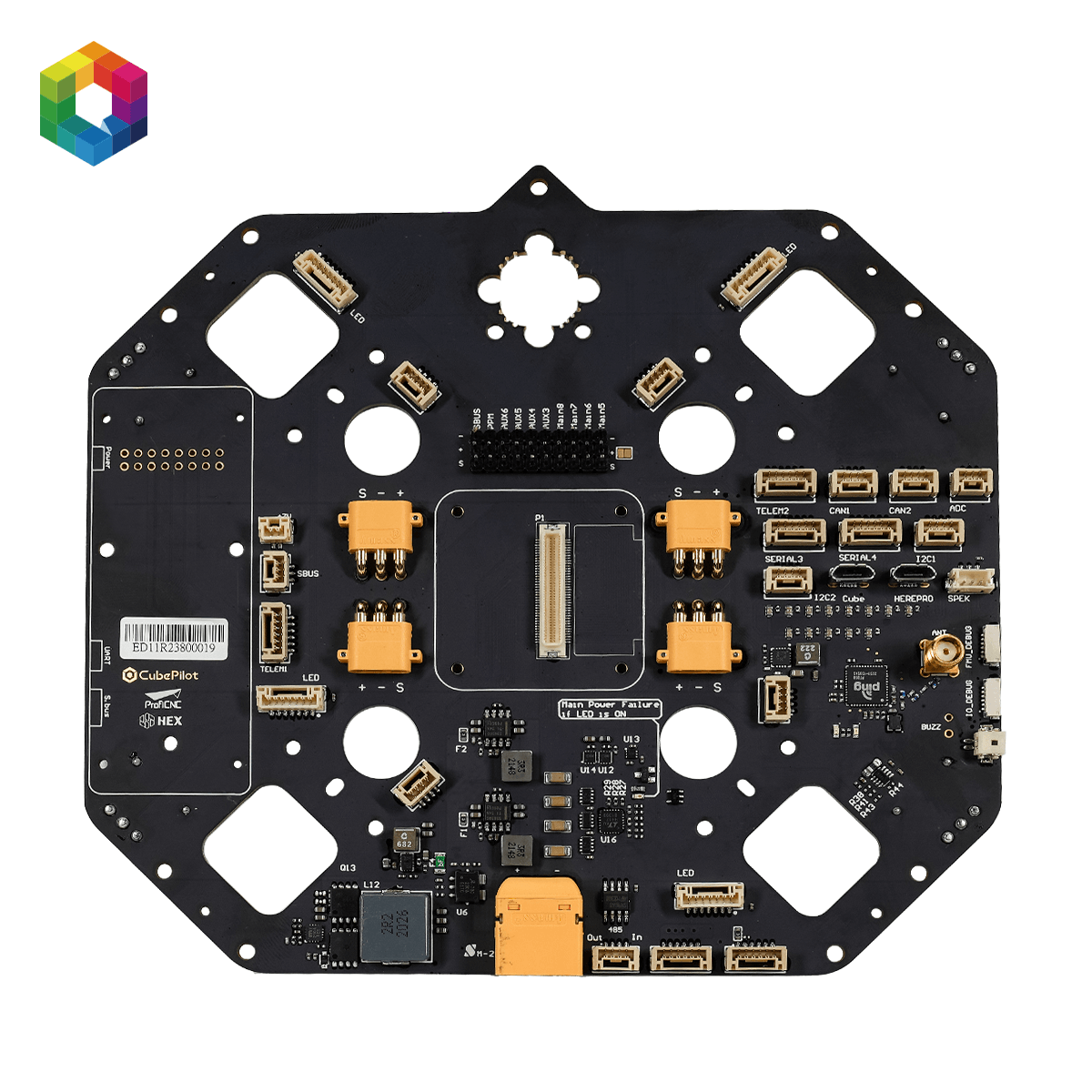

The CubePilot EDU450 Carrier Board is an integrated carrier board for Cube flight controllers, including the Cube Orange+. It is designed for professional UAV builds that need robust power distribution, redundant power input, and clean connectivity in one central electronics platform.
With support for up to 8-cell lithium batteries, 100 A continuous current, built-in voltage and current sensing, and interfaces for ESCs, RS485, SPI, HerePro, ProfiLED, and ADS-B antenna connection, the EDU450 carrier board is suitable for quadcopters, X8 platforms, and octocopters.
Key Features
- Integrated Cube carrier board – Designed for Cube Orange+ and other compatible Cube flight controllers.
- Built-in power distribution – Supports high-current UAV power wiring in a clean all-in-one layout.
- Redundant power supply support – Includes automatic fail-over power selection for added system reliability.
- Up to 8S battery support – Suitable for lithium battery setups up to 36 V.
- 100 A continuous current capacity – Designed for demanding multirotor and professional UAV applications.
- Built-in voltage and current sensing – Uses Hall effect sensors for power monitoring.
- Versatile connectivity – Includes RS485, SPI, ESC outputs, ProfiLED interfaces, and ADS-B antenna connection.
Technical Specifications
| Product type | Cube carrier board with integrated power distribution |
| Compatible autopilots | Cube Orange+ and other compatible Cube flight controllers |
| Board size | 170 x 145 mm |
| Weight | Approx. 185 g, including carbon fiber plate |
| Battery support | Up to 8S lithium battery, 36 V |
| Continuous current | Up to 100 A to ESCs at normal room temperature |
| Main battery connector | XT60 MAIN PWR connection |
| ESC connectors | Amass MR30 connectors for up to 8 ESCs |
| Power output | 5 V BEC for main and AUX rail |
| Operating temperature | -20°C to +70°C |
Interfaces and Connectivity
- RS485 and SPI ports – For robust communication and high-speed peripheral connections.
- HerePro interface – Supports compatible CubePilot navigation hardware.
- ProfiLED interfaces – Four interfaces for navigation light control.
- ADS-B external antenna connection – Standard SMA interface for improved data range.
- ESC ports – Amass MR30 connectors for up to 8 ESCs.
Typical Applications
- Professional multirotors – Suitable for quadcopters, X8 platforms, and octocopters.
- Cube Orange+ integrations – Build a clean and robust Cube-based autopilot system.
- Inspection and mapping UAVs – Centralize power distribution and autopilot connectivity.
- Research and development platforms – Useful for repeatable, well-organized UAV electronics layouts.
Compatible Products
For a complete autopilot setup, combine this carrier board with a compatible Cube flight controller. View related products in our autopilot collection and drone electronics collection.
Support and Assistance
For installation guidance, refer to the official EDU450 carrier board setup guide. If you need help checking compatibility with your Cube autopilot, ESCs, or UAV power setup, please contact Aeroboticshop before ordering.
Manufactured by CubePilot.
