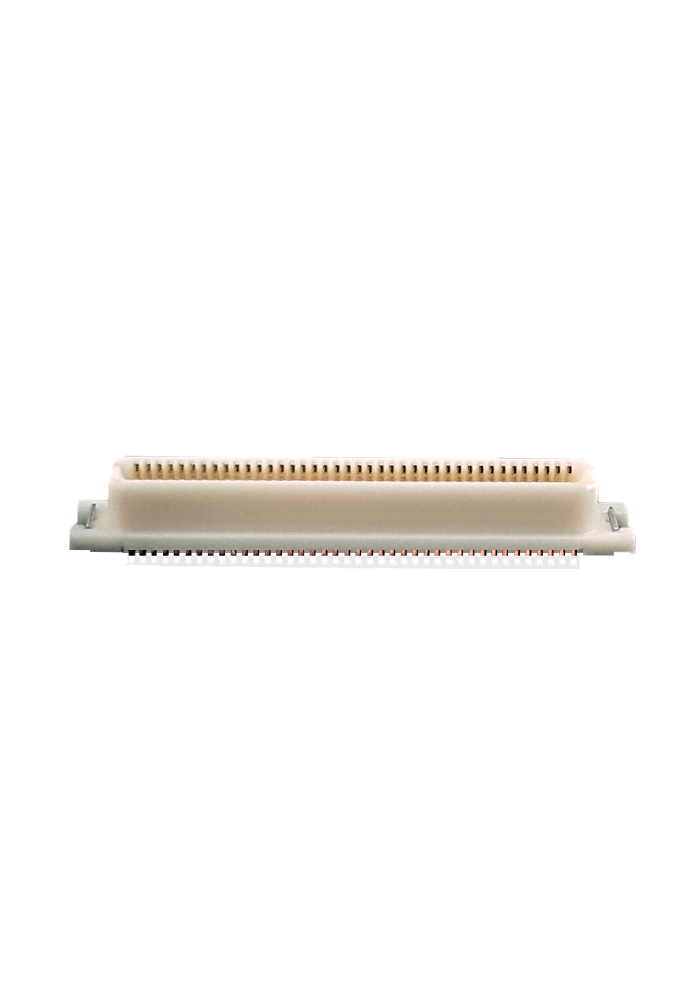

DF17 (1.0H)-80DP-0.5V(57)

DF17 80-Pin Connector for CubePilot Carrier Board Design

The DF17 (1.0H)-80DP-0.5V(57) connector is used for custom CubePilot carrier board designs. It provides the correct mating height for integrating a Cube autopilot module into your own hardware project.

This connector is intended for developers, hardware designers, and UAV integrators working on custom carrier boards or embedded CubePilot integrations. It is a technical component for design and prototyping rather than a plug-and-play drone accessory.

Key Features

• 80-pin DF17 connector – Suitable for CubePilot carrier board integration.
• Correct mating height – Provides the required height for Cube module connection in custom designs.
• Useful for custom carrier boards – Intended for hardware developers building their own CubePilot-compatible boards.
• Suitable for prototyping – Practical for small development runs and integration testing.

Technical Specifications

Design and Production Notes

This connector is useful for custom CubePilot carrier board development. For larger production quantities, we recommend sourcing directly from a bulk electronic component supplier where appropriate.

For related CubePilot autopilots and carrier boards, view our Autopilots and Controllers for Drones collection.

Support and Assistance

If you need help choosing the right connector, CubePilot autopilot, or carrier board design path, please contact Aeroboticshop.

Manufactured by CubePilot.
