AMASS XT90-S

AMASS XT90-S

€2,90 EUR
€2,90 EUR
Aanbieding Uitverkocht
Belastingen inbegrepen. Verzendkosten worden berekend bij de checkout.

Lage voorraad: nog maar 10
Version

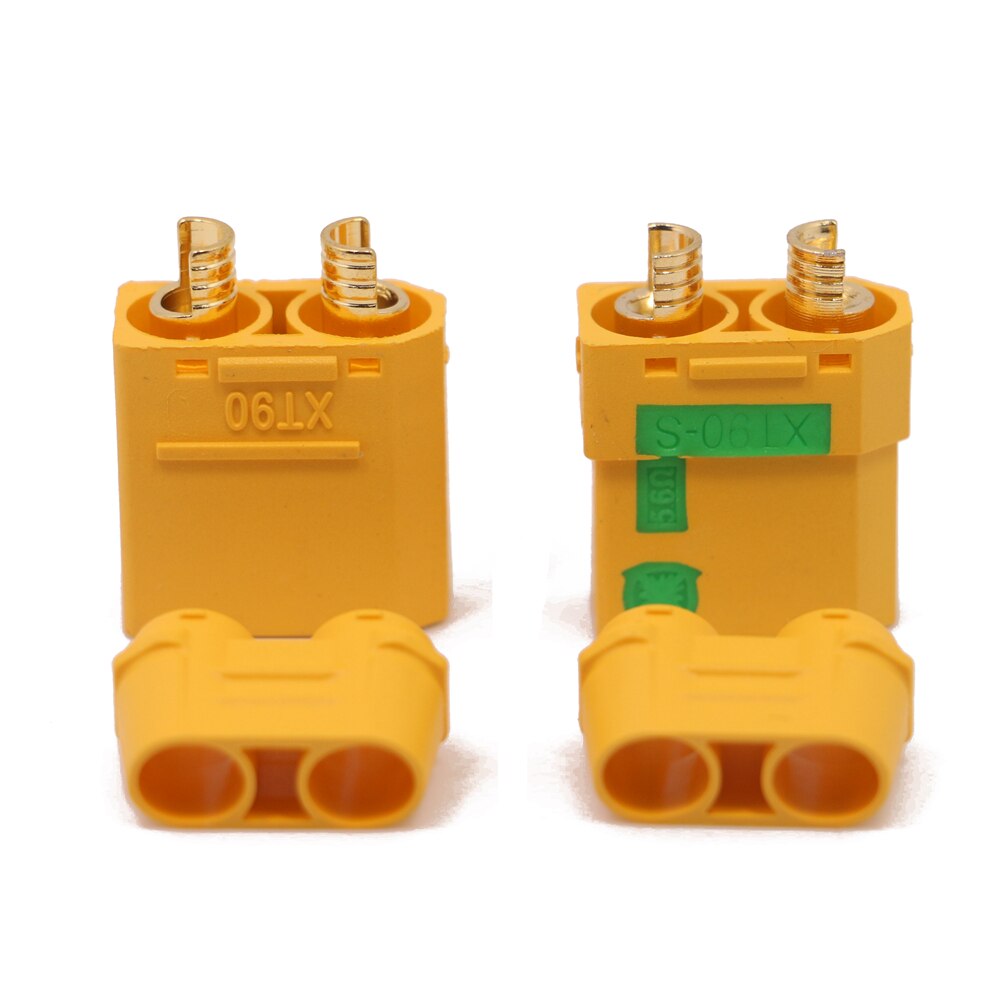

AMASS XT90-S Anti-Spark Connector for UAV Power Systems

The AMASS XT90-S is the anti-spark version of the well-known XT90 power connector. It is designed for high-current UAV, RC, battery, and electronics power systems where a reliable connector and reduced spark during connection are important.

With a maximum current rating of 90A and support for 10 AWG wire, the XT90-S is suitable for higher-power drone builds, battery leads, ESC connections, and other DC power applications.

Key Features

  • XT90-S anti-spark connector – Designed to reduce spark during battery connection.
  • Up to 90A maximum current – Suitable for demanding high-current applications.
  • 40A nominal current – Reliable for continuous power use within rated limits.
  • Supports 10 AWG wire – Suitable for higher-power UAV and RC wiring.
  • 500 VDC maximum voltage – Built for robust DC power connections.

Technical Specifications

Product type XT90-S anti-spark power connector
Maximum current 90A
Nominal current 40A
Maximum voltage 500 VDC
Connector size 4.5 mm
Feature Anti-spark design
Temperature range -20°C to 120°C
Wire size 10 AWG

Recommended Use

The AMASS XT90-S connector is useful for high-current battery leads, ESC power connections, UAV power systems, RC models, and electronics projects where anti-spark connection behavior is preferred.

Please select the correct variant: male, female, or both, depending on your wiring setup.

For related hardware components, view our Hardware for Drones collection.

Support and Assistance

If you need help choosing the right connector or power component for your drone project, please contact Aeroboticshop.

Manufactured by AMASS.
