Herelink HD Video Transmission system V1.1

Herelink HD Video Transmission system V1.1

SKU:HX4-06210 & HX4-06211

Regular price €1.035,00 EUR
Regular price Sale price €1.035,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 8 left

Need more?

This product is available on backorder. Please note that the shipping time can take up to 2 weeks. Items in stock will be shipped directly.

Just add the amount you need and click on "Add to cart".

The Herelink HD video transmission system is an all-in-one ground control station, data telemetry, and remote controller. With a range of up to 12 km and 1080HD video capability, it is designed for Ardupilot, PX4, and Cube autopilots, but it is also compatible with other flight controllers.

  • Long range: up to 12 km range with 1080HD video transmission.
  • Comprehensive control: an integrated system for ground control, data telemetry, and remote control.
  • Wide compatibility: designed for Ardupilot, PX4, and Cube autopilots, compatible with other flight controllers.
  • High-Quality video: 1080P HD video with dual digital video inputs.
  • Custom software: features Solex TX and QGC ground station software with MAVlink support.
  • Advanced remote control: dual hall effect self-centering gimbals with removable sticks.
  • Versatile outputs: dual S.bus signal output for simultaneous control of autopilot and pan/tilt cameras.
  • Customizable: six customizable Mavlink buttons and Mavlink/Sbus hardware wheel.
  • RC Gimbal control: dedicated service independent from Solex TX/QGC.
  • Tethering and sharing: share video and telemetry via Wi-Fi ground station like Mission Planner.
  • Onboard processing: ARM Cortex A53 in both air and ground units for custom applications.

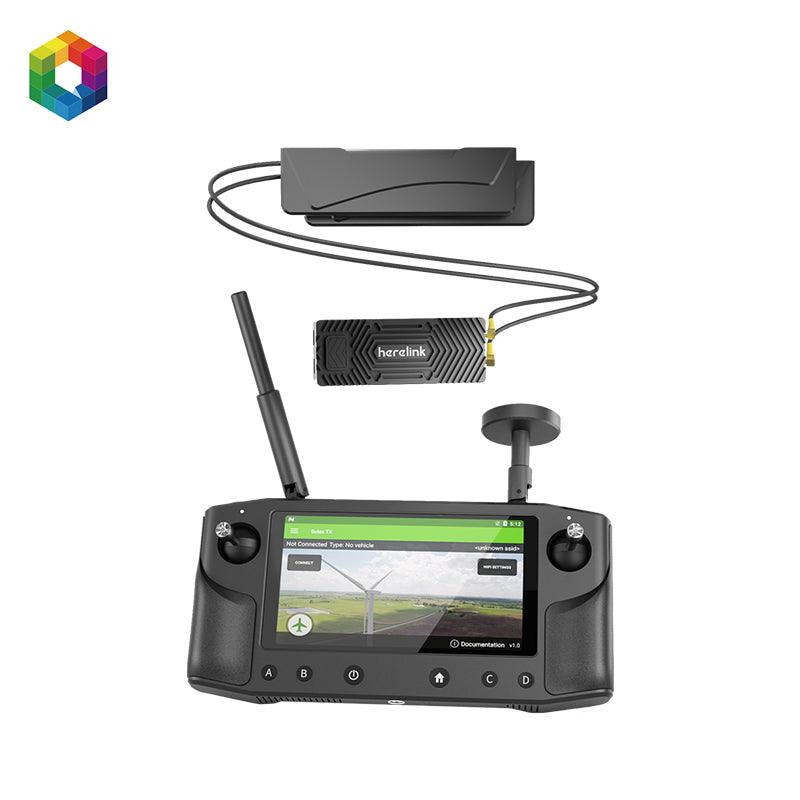

What's inside

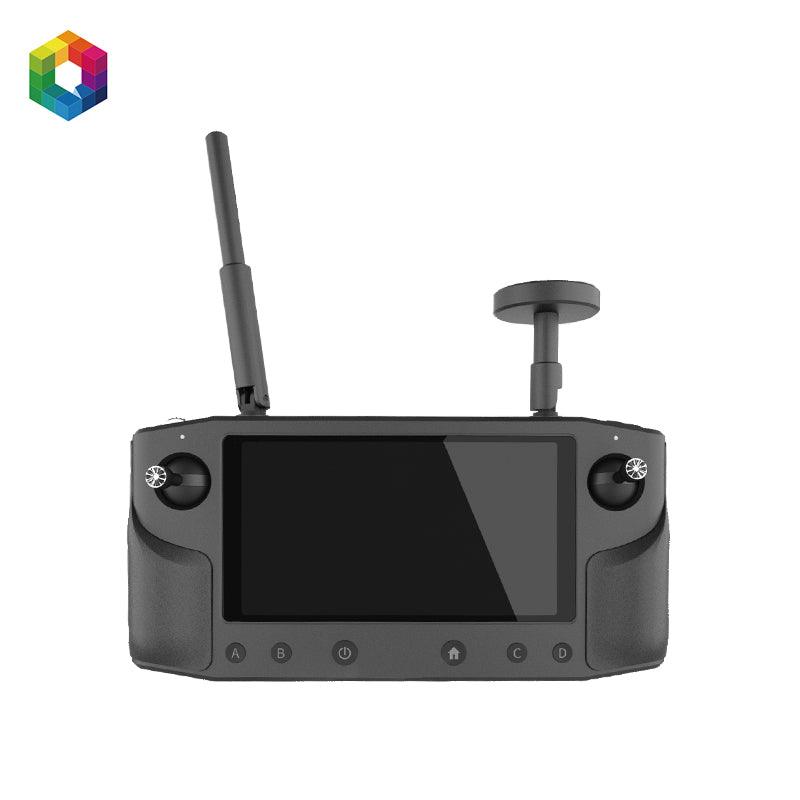

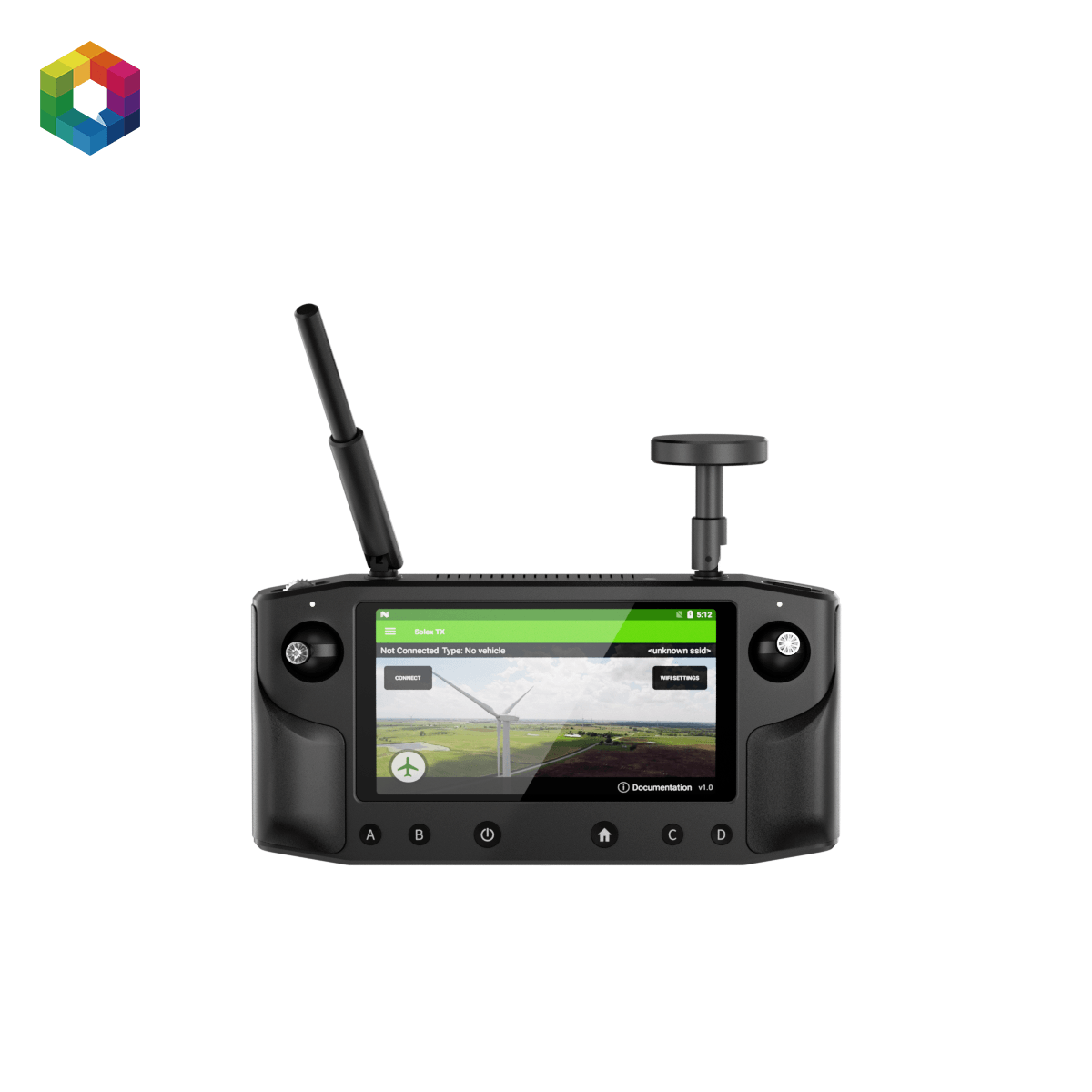

HX4-06122 Herelink Controller Set v1.1

  • 1x Controller Unit (HX4-06212)
  • 2x Controller Joysticks
  • 1x Omni-directional Antenna
  • 1x Directional Antenna

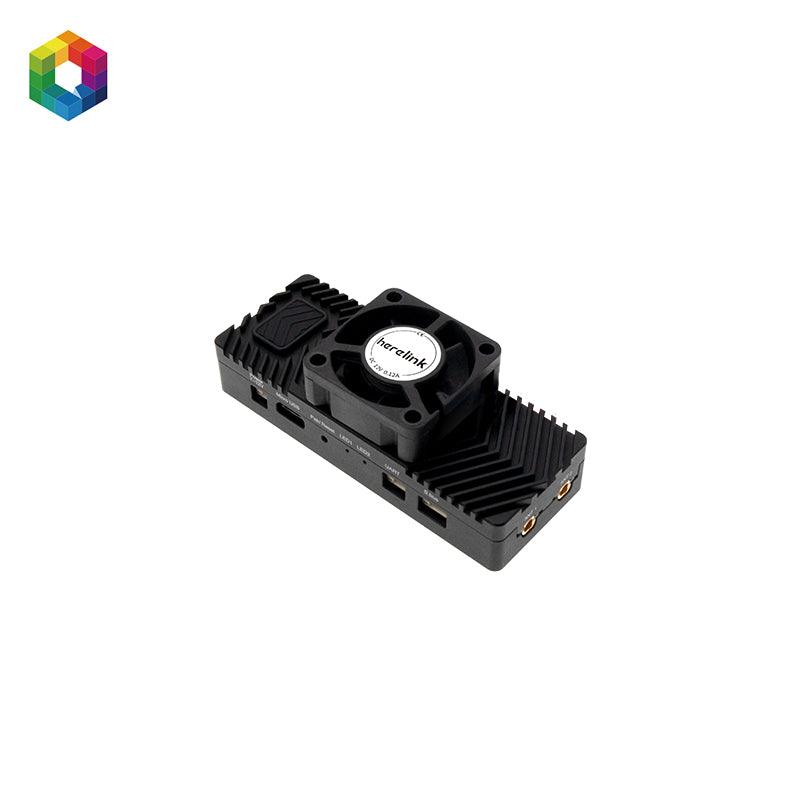

HX4-06210 Herelink Air Unit Set v1.1

  • 1x Herelink Air Unit
  • 1x Mounting Plate
  • 1x Screw Set
  • 1x Silicone Ring Set
  • 2x Taoglas Antennas
  • 1x Fan
  • 1x Cable Set
  • 1x HDMI Cable
  • 1x Set up tips card

Specifications

Ground & Air Unit

  • SOC: ARM Cortex A53 4 core 2.2GHz + Cortex A53 4 core 1.4GHz
  • Image Processing: Mali-T860 GPU
  • SDR: A7 + DSP
  • Memory:
    • Air Unit: LPDDR3: 1GB
    • Ground Station: LPDDR3: 2GB
    • EMMC: Air/Ground 4GB
  • Transmission Distance:
    • FCC: 20km
    • CE/SRRC: 12km
    • Image transmission delay: ≤ 110ms
    • Image transmission: 720p@30fps 1080p@30/60fps
    • Signal bandwidth: 20MHz/10MHz
  • Frequency Band:
    • 2.4GHz ISM
    • Receive sensitivity: -99dBm@20MHz BW
    • Interference recovery: < 1s

Ground Station

  • Screen: 5.46 inch 1080P, 16 million colors, capacitive touch screen
  • Audio: Built-in speaker × 1, built-in microphone × 2
  • Remote Control:
    • Hall effect gimbals with removable sticks x2
    • Scroll wheel ×1
    • Bottom button ×6 with backlight
    • Top button ×1 (right)
  • Wireless: Bluetooth/WIFI/GPS/2.4G map transmission ground
  • Inputs: microUSB ×1, Micro SD ×1 (supports maximum 64GB)
  • Antenna:
    • Circular (5dBi) ×1 detachable
    • Omni-directional (2dBi) ×1, detachable
    • Built-in Wi-Fi antenna
    • Built-in GPS antenna
    • External GPS antenna interface x1
  • Power: Built-in 4950 mAh Lipo Battery
  • Charging: Support micro USB port 5v 2A current charging
  • Power Consumption: The average power consumption does not exceed 4W (only picture transmission work, medium screen brightness, Wi-Fi off, GPS off)
  • Size: 217 × 106.5 × 31mm (not including external antenna and rocker)

Air Unit

  • Weight (antenna included): Herelink 1.1: 98g
  • Size: 78.5×30×15mm
  • Signal Bandwidth: 20MHz/10MHz
  • Power Consumption: The average power consumption does not exceed 4W
  • Micro HDMI 1: Camera video signal input (Recommend)
  • Micro HDMI 2: Camera video signal input
  • Power Input: Recommended supply voltage ~7V: minimum 6V, maximum 12V (avoid sharing BEC with servos)
  • UART Interface: 3.3V UART
  • S.bus Interface: Dual RCout, S.bus1 and S.bus2
  • Micro USB: Used for debugging and upgrading, supports OTG mode (no need for external power for USB device)
  • Button: Used for pairing and state reset
  • Indicator Lights 1, 2: Used to indicate state for pairing and video transmission
  • MMCX Antenna Jack 1, 2: Used for signal transmission and ground communication
  • SD Slot: (only supported by Airunit 1.1) For future usage
  • ETH Interface: (only supported by Airunit 1.1) Network protocol device access

Support and assistance

For more information, visit our support page or check the Herelink user guides.
