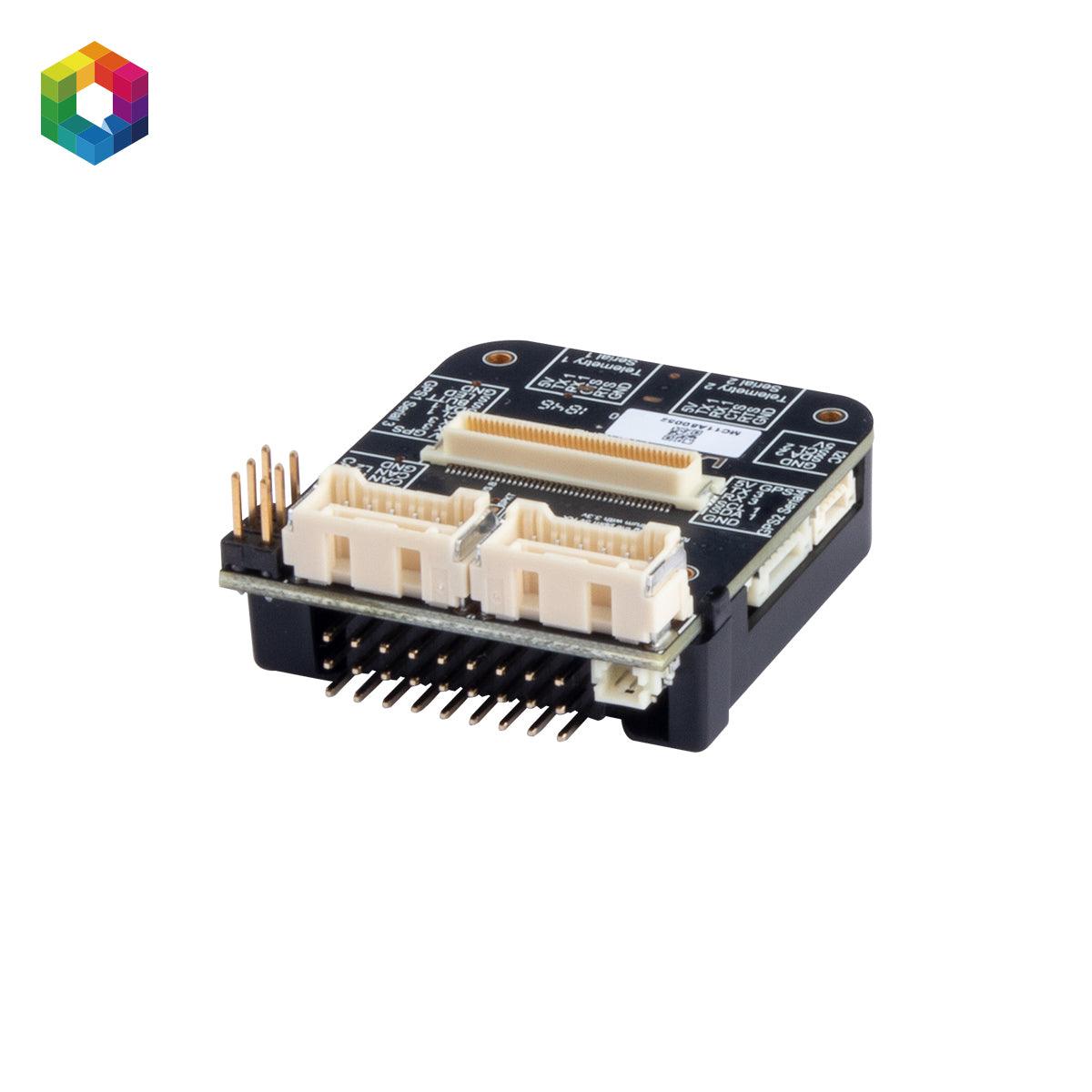

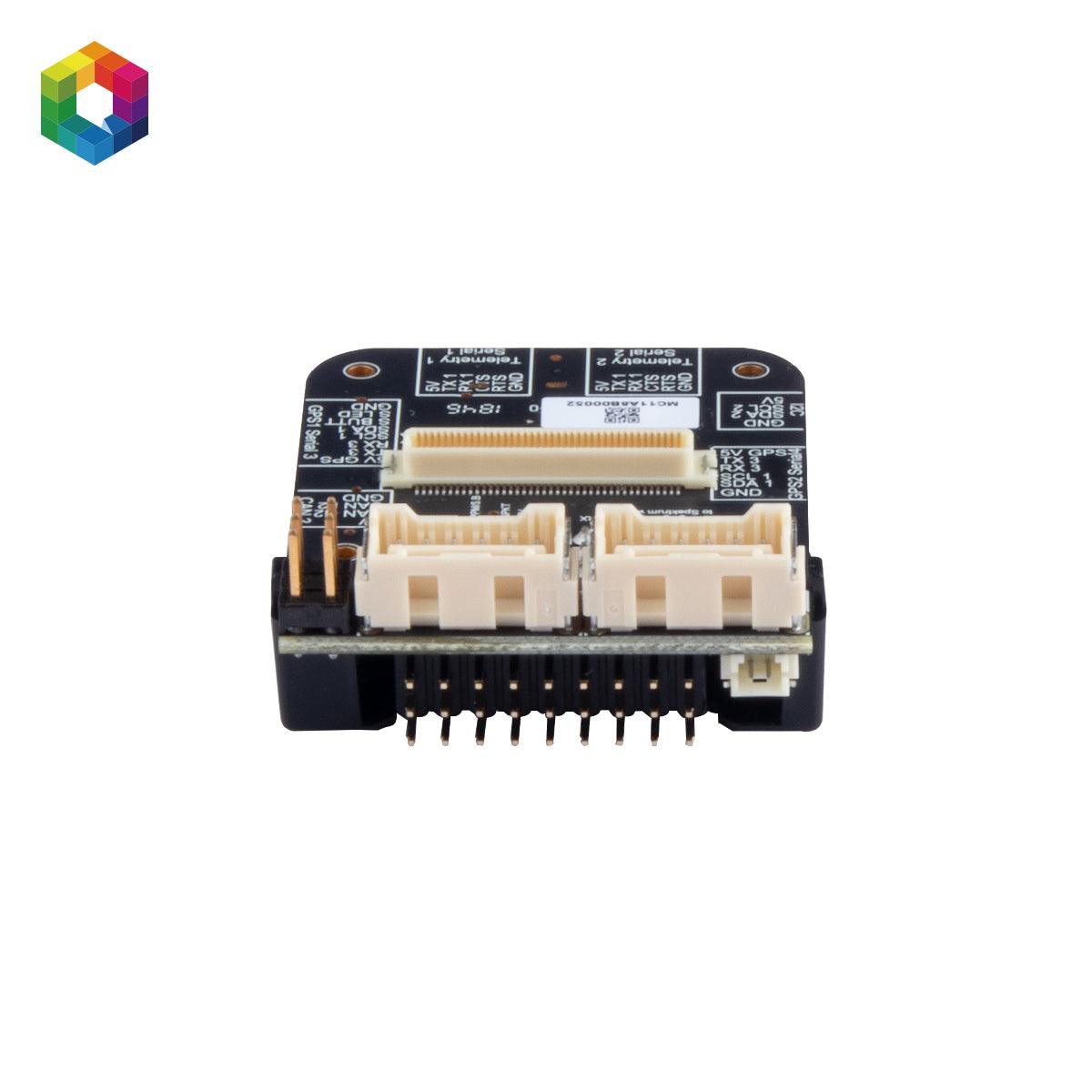

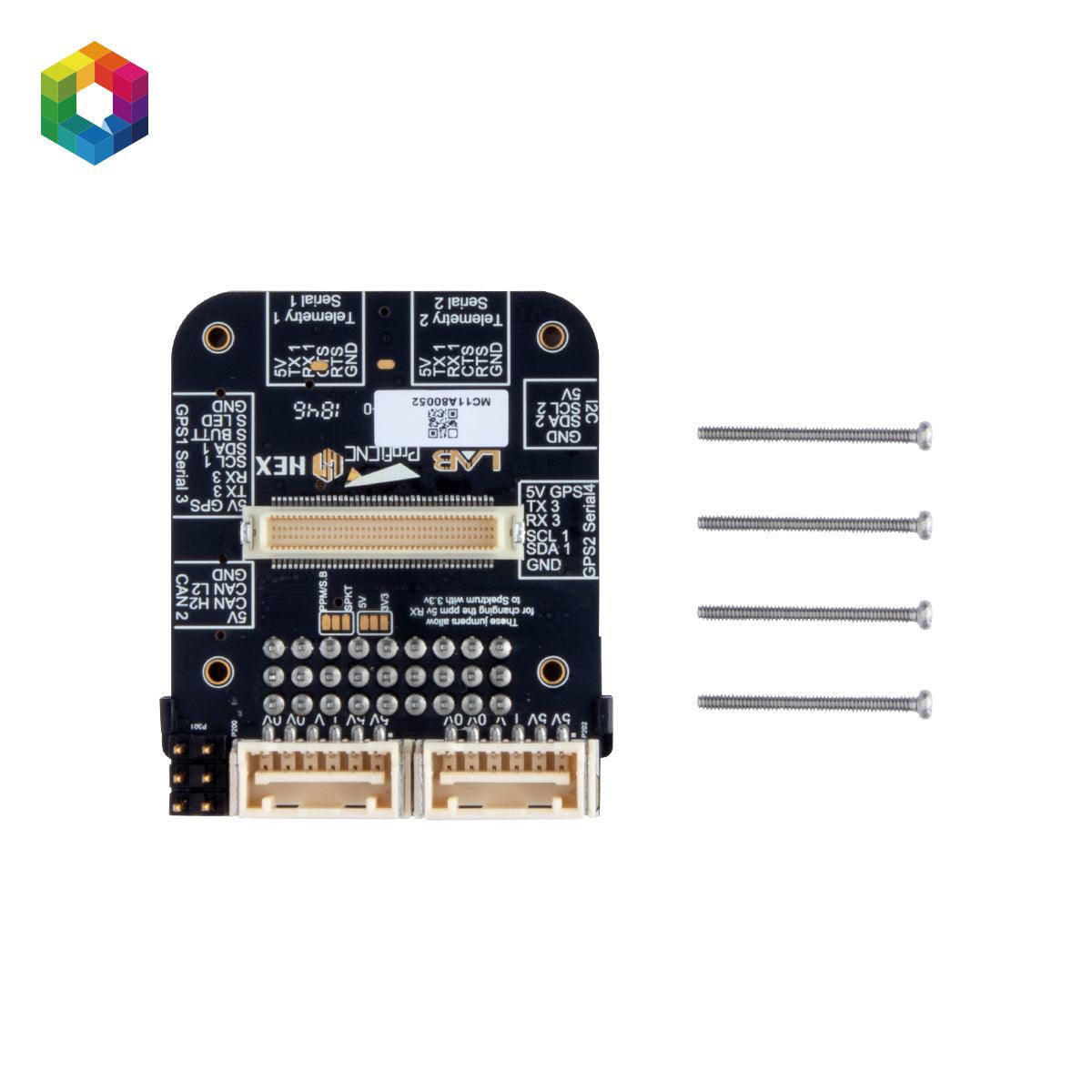

CubePilot Mini Carrier Board for Compact UAV Builds
Important: Cube autopilot not included.
This product is the CubePilot Mini Carrier Board only. The Cube autopilot module is sold separately. Please make sure you have a compatible Cube autopilot before ordering.
The CubePilot Mini Carrier Board is a compact carrier board for CubePilot autopilots in space-constrained UAV, robotics, unmanned vehicle, and unmanned vessel applications. It is designed for smaller builds where a standard carrier board takes too much space.
This carrier board is compatible with Cube Orange and Cube Purple autopilots and provides the necessary interfaces for power, telemetry, GPS, CAN, S.Bus, PPM, main outputs, auxiliary outputs, and debugging.
Key Features
- Compact CubePilot carrier board – Designed for small UAVs, robotics platforms, unmanned vehicles, and unmanned vessels.
- Compatible with Cube Orange and Cube Purple – Suitable for compact CubePilot autopilot integrations.
- Multiple communication interfaces – Supports telemetry, GPS, CAN2, I2C2, S.Bus, PPM, and debug connections.
- Main and auxiliary outputs – Includes MAIN OUT 1-8 and AUX OUT 1-6 for actuator and system integration.
- Power input support – Designed for 4 V to 5.7 V operational power input.
- Recommended with Mauch power components – We recommend using a suitable Mauch BEC and sensor for power supply and monitoring.
Technical Specifications
| Product type | Mini carrier board for CubePilot autopilots |
| Compatible autopilots | Cube Orange and Cube Purple |
| Power input voltage | 4 V - 5.7 V operational input |
| Rated input current | 2.5 A |
| Rated power | 14 W |
| USB input | 4 V - 5.7 V / 250 mA |
| Servo rail input voltage | 4 V - 10.5 V |
| Waterproof rating | Not waterproof; external protection required |
| Operating temperature | -10°C to 55°C |
| Size | 47.5 x 38.5 x 17.8 mm |
| Weight | 15 g |
Interfaces
- TELEM1 and TELEM2
- GPS1 and GPS2
- Buzzer interface
- POWER1 and POWER2
- CAN2
- I2C2
- S.Bus and PPM
- FMU debug
- BATT2 sense
- MAIN OUT 1-8
- AUX OUT 1-6
Recommended Use
The CubePilot Mini Carrier Board is best suited for compact drone and robotics builds where size and weight are important. It is useful for smaller multirotors, unmanned vehicles, unmanned vessels, and prototype platforms using compatible CubePilot autopilots.
For suitable power components, view our Power Management for Drones collection. For compatible autopilots, browse our Autopilots and Controllers for Drones collection.
Before You Order
Please note: Cube autopilot sold separately.
This product is only the Mini Carrier Board. You need a compatible CubePilot autopilot module, such as Cube Orange or Cube Purple, to complete your setup. If you are unsure which parts you need, please contact Aeroboticshop before ordering.
Support and Assistance
For technical setup information, visit the CubePilot Mini Carrier Board documentation. If you need help choosing the right carrier board, autopilot, or power supply, please contact Aeroboticshop.
Manufactured by CubePilot.
