Airbot Mini Carrier Board PRO v2 – Compact Carrier & PDB for Cube Autopilots
Airbot Mini Carrier Board PRO v2 – Compact Carrier & PDB for Cube Autopilots
SKU:ABS001
Low stock: 2 left
Couldn't load pickup availability

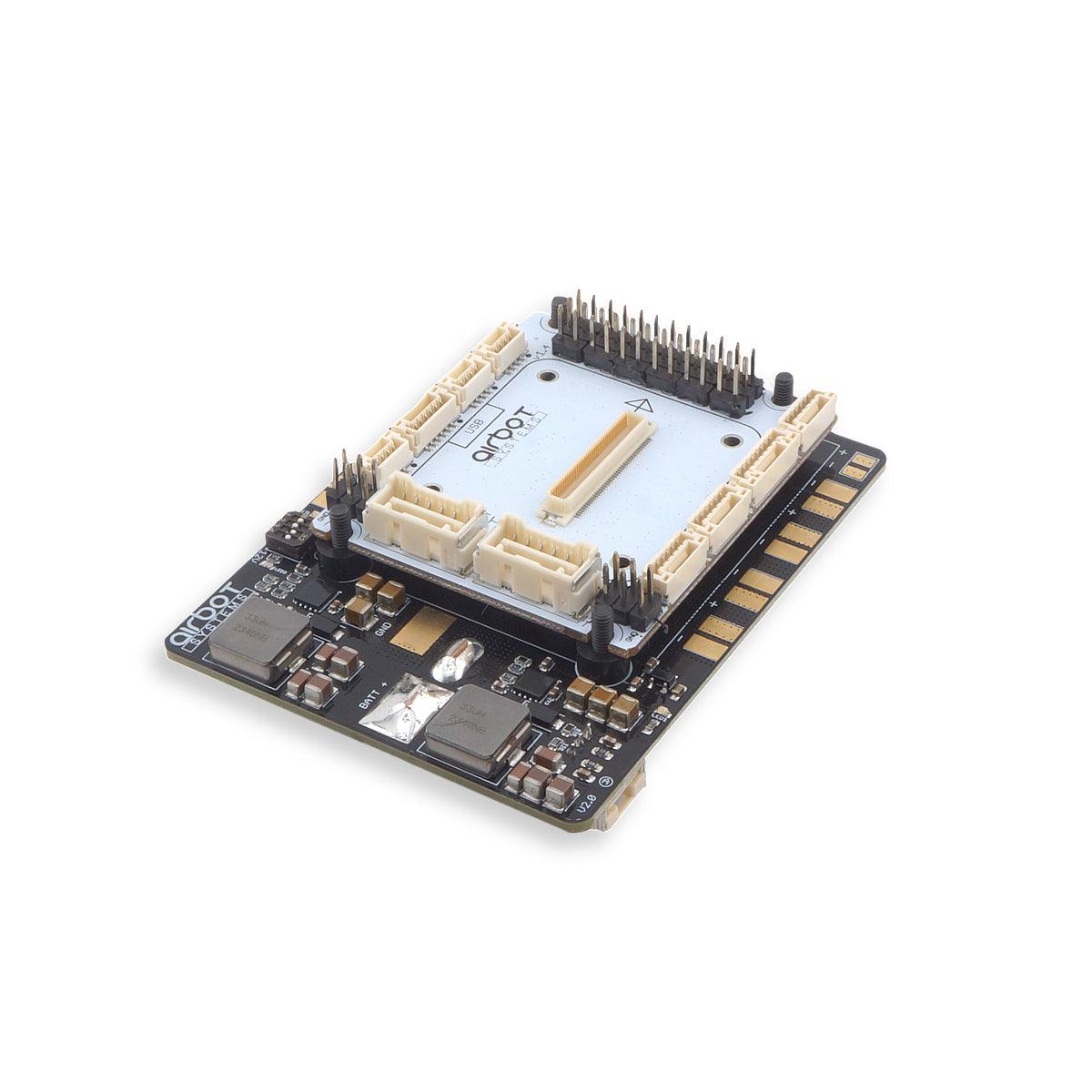

All‑in‑One Compact Power & Control: Airbot Mini Carrier Board PRO v2
The Airbot Mini Carrier Board PRO v2 offers a premium space-saving solution to mount your Cube (Pixhawk 2.1), combining power distribution, redundant power supply, current/voltage monitoring, and RC wiring—all in a board no larger than 50.5 × 57.5 mm. Designed for UAV integrators who need robust performance in tight spaces, this board is ideal for drones, ground vehicles, or robotics.
Key Features
-
✅ Compact dimensions – Only 50.5 × 57.5 mm, adds ~24.6 mm height with Cube docs.cubepilot.org+9aeroboticshop.com+9aeroboticshop.com+9docs.cubepilot.org+2airbot-systems.gitbook.io+2docs.cubepilot.org+2.
-
✅ Redundant power via CubePilot PSM – Dual 5.3 V/3 A rails, switching automatically if one fails irlock.com+2airbot-systems.gitbook.io+2docs.cubepilot.org+2.
-
✅ Integrated Mini PDB PRO v2 – Dual power converters, current & voltage probes; supports 100 A or 200 A versions docs.cubepilot.org+6aeroboticshop.com+6nwblue.com+6.
-
✅ RC signal distribution – 8 ESC PWM outputs; selectable PPM/S.Bus/Spectrum input rails airbot-systems.gitbook.io+1docs.cubepilot.org+1.
-
✅ AUX power rail options – Unified AUX pins for external power injection airbot-systems.gitbook.io+1docs.cubepilot.org+1.
-

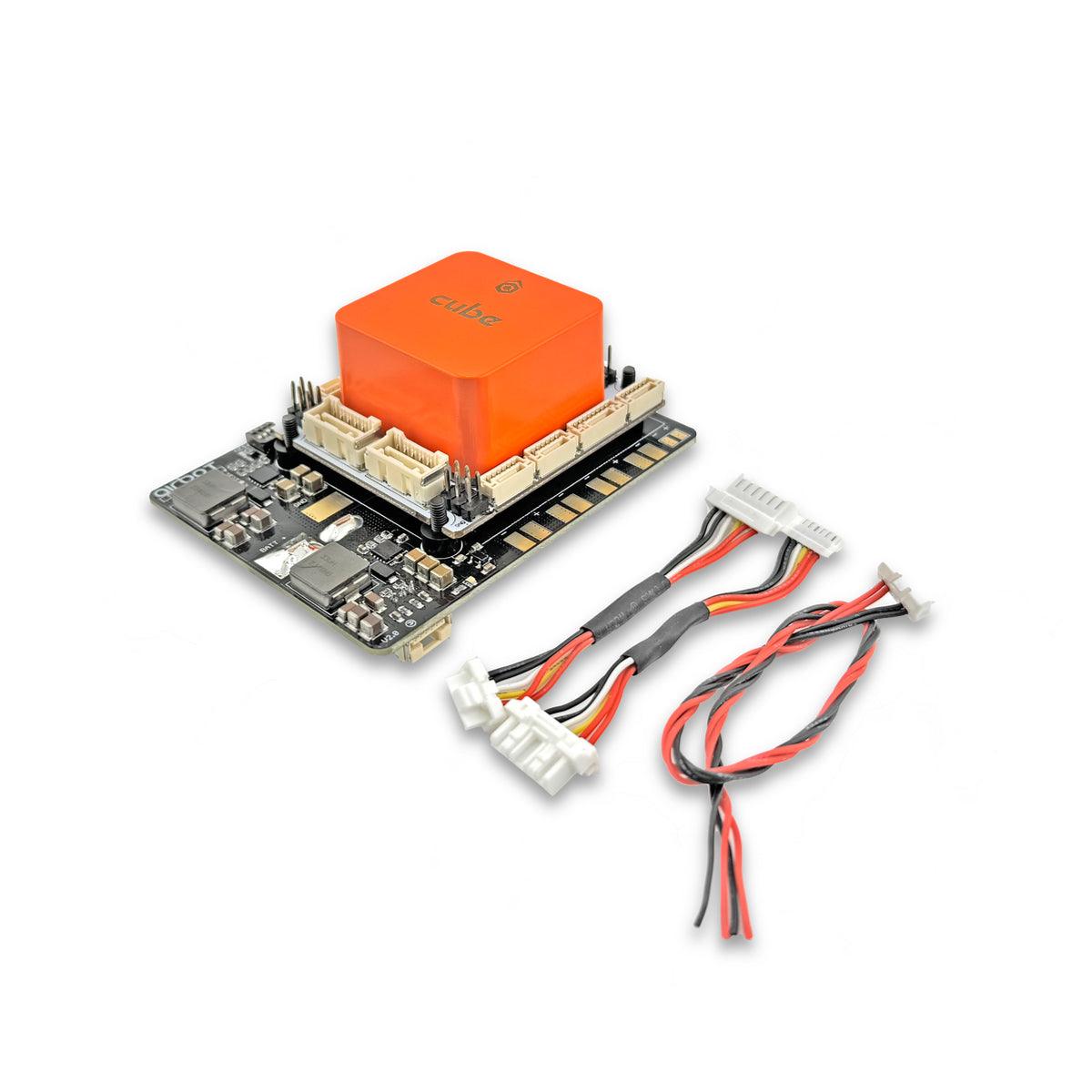

✅ Pixhawk Cube ecosystem compatibility – Fully compatible with Cube Orange/Orange+ and Pixhawk flight stacks docs.cubepilot.org+4docs.cubepilot.org+4suasnews.com+4.

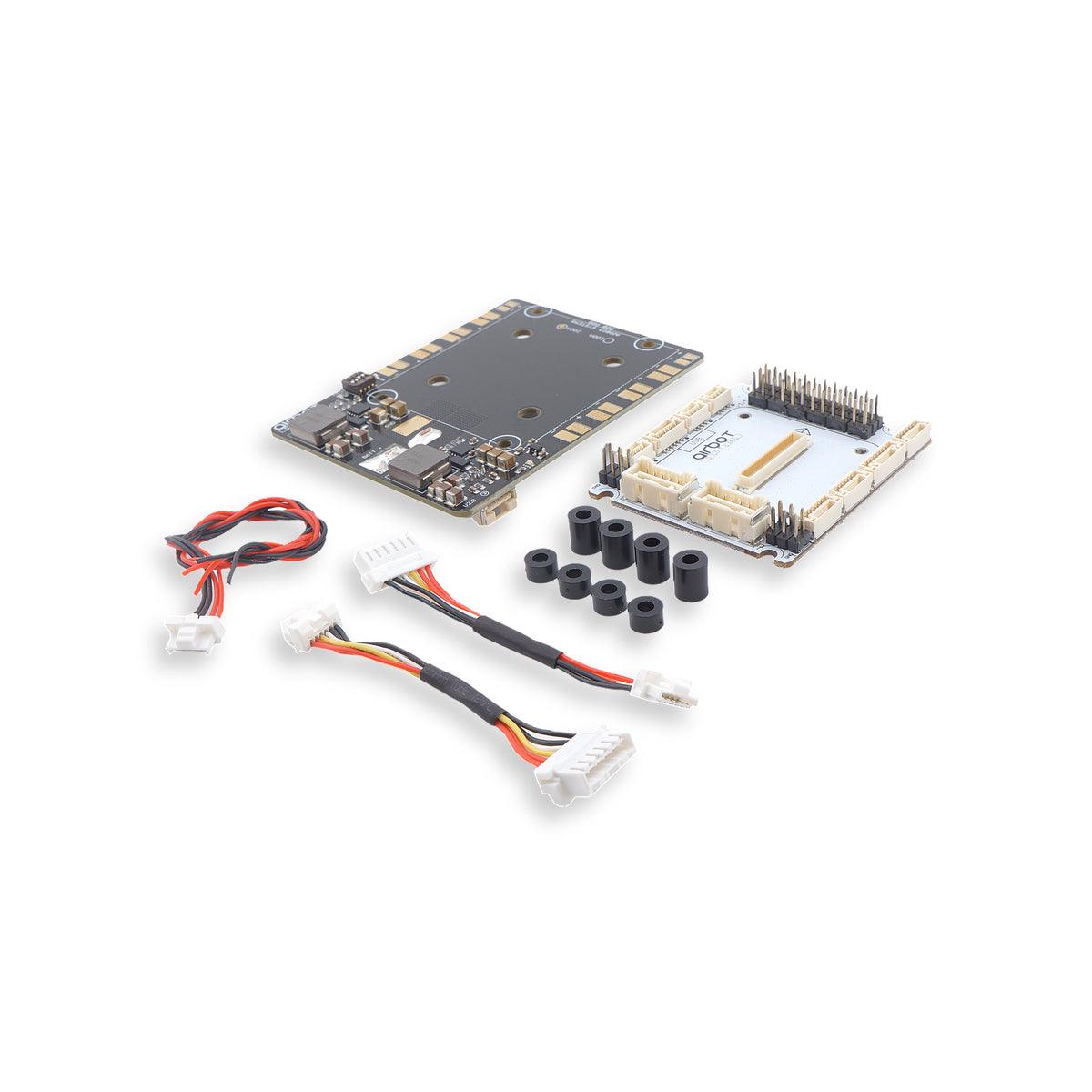

What's Included
Full Set (100 A or 200 A)
-

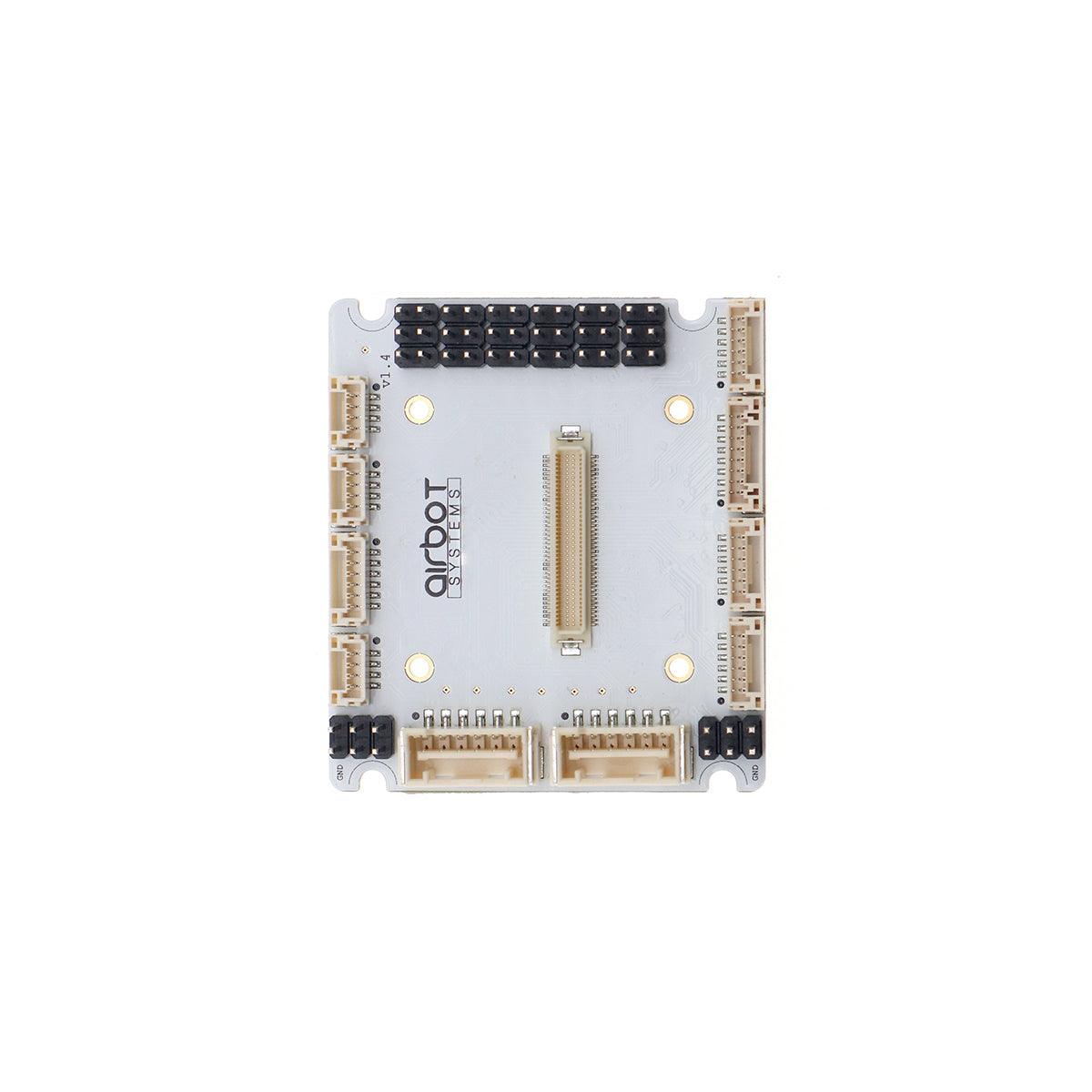

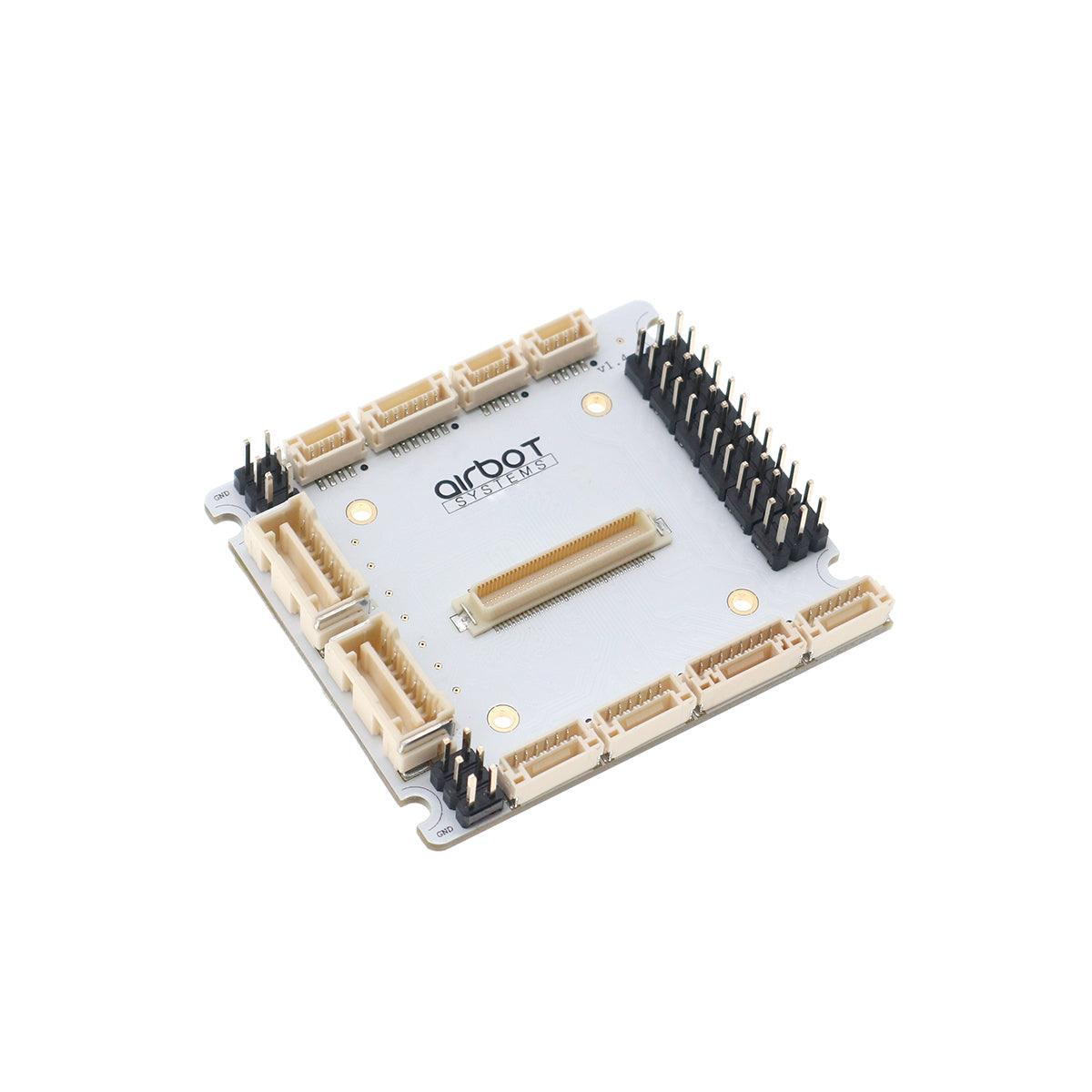

Mini Carrier Board PRO v2
-
Mini PDB PRO v2
-
4 × M3 × 8 mm nylon spacers
-
4 × M3 × 4 mm nylon spacers
-
2 × Cube power cables
-
1 × accessories power cable airbot-systems.gitbook.io+9aeroboticshop.com+9irlock.com+9
PDB PRO v2 Only
-
Mini PDB PRO v2
-
4 × M3 × 8 mm nylon spacers
-
2 × Cube power cables
-
1 × accessories power cable
Technical Specifications
| Feature | Specification |
|---|---|
| Board size (carrier + Cube) | 50.5 × 57.5 mm; ~24.65 mm tall aeroboticshop.com+9aeroboticshop.com+9suasnews.com+9 |
| Carrier board weight | ~19 g (incl. connectors & PSM) |
| PDB size | 65.5 × 85 mm |
| PDB weight | ~44 g |
| Maximum current handling | 100 A or 200 A versions |
| Voltage input capacity | Up to 50.4 V (12S) per rail |

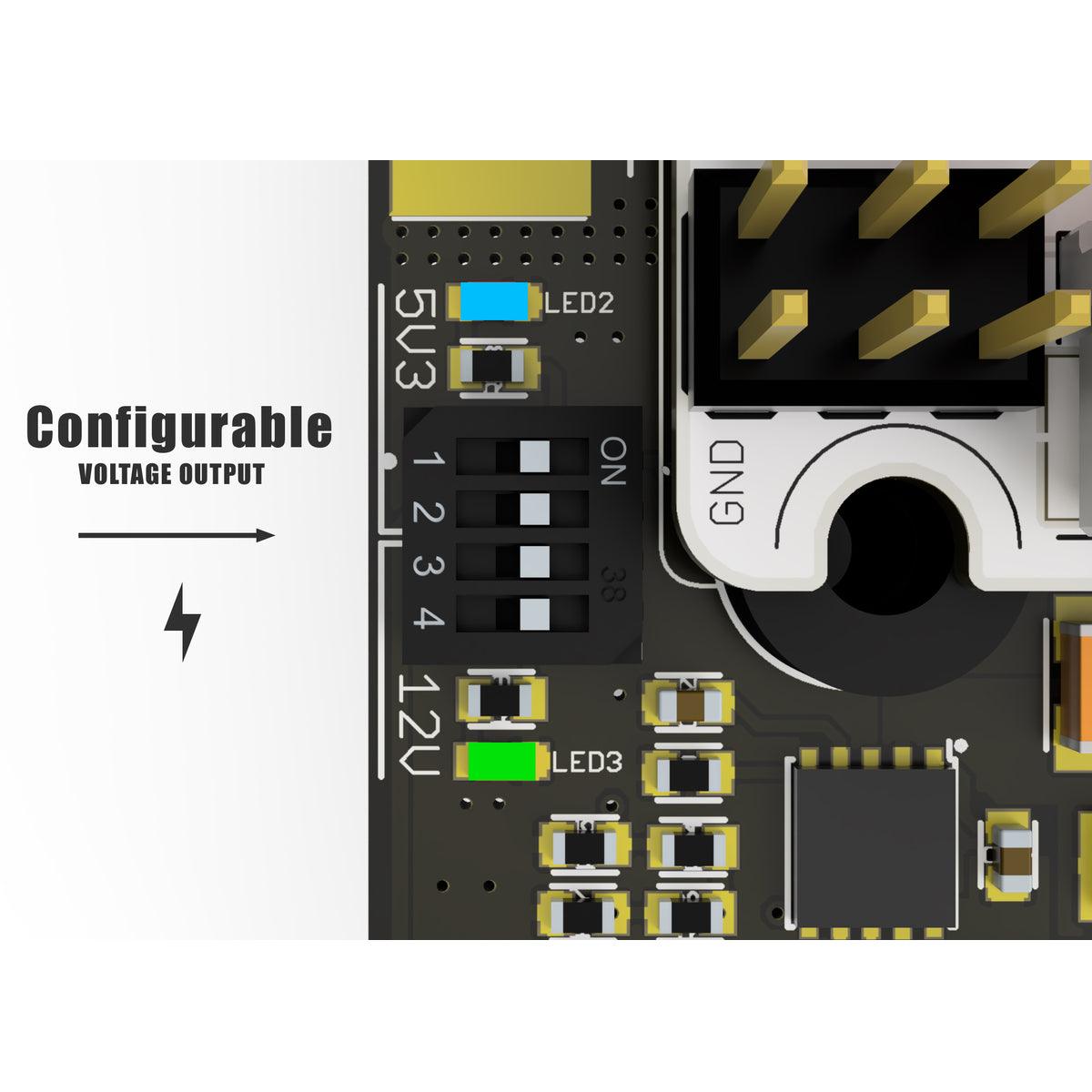

| Voltage output | 5.3 V (3 A nominal, 4 A peak) ± optional 12 V |
| Total system weight | ~68 g (complete set) |
Why Choose PRO v2?
-
Ultra-compact integration: Save space on frames—board is only ~5 cm wide docs.cubepilot.org+2airbot-systems.gitbook.io+2irlock.com+2.
-
Power redundancy built-in guards against single-source failure.
-
Comprehensive telemetry: voltage & current monitoring enables smarter power management.
-
Field-ready simplicity: clean wiring, stacked combo design, standard mounting hardware.
-
Fully CubePilot-compatible: aligns with Pixhawk ecosystem wiring and protocols youtube.com+6airbot-systems.gitbook.io+6suasnews.com+6.
Common Applications
-
UAVs with size constraints – racing, VTOL, compact multirotors.
-
Ground and marine robotics – rugged, compact autopilot integration.
-
Prototype platforms – simplified setup for test-bed builds.
-
Professional inspection drones – clean install, robust power rollout.
Order Now at Aeroboticshop
The Airbot Mini Carrier Board PRO v2 is available now:
-
✔ Free shipping within NL from €100
-
✔ Official Airbot & CubePilot reseller
-
✔ Dedicated technical support
➡️ Order Airbot Mini Carrier Board PRO v2 now and streamline your UAV electronics setup.
Support and assistance
For more information, please check the user manual or visit our support page.
