SpektreWorks Kore Carrier Board for CubePilot Autopilots
Important: Cube autopilot not included.
This product is the Kore carrier board only. The Pixhawk 2.1 Cube / CubePilot autopilot module is sold separately. Please make sure you have a compatible Cube autopilot before ordering.

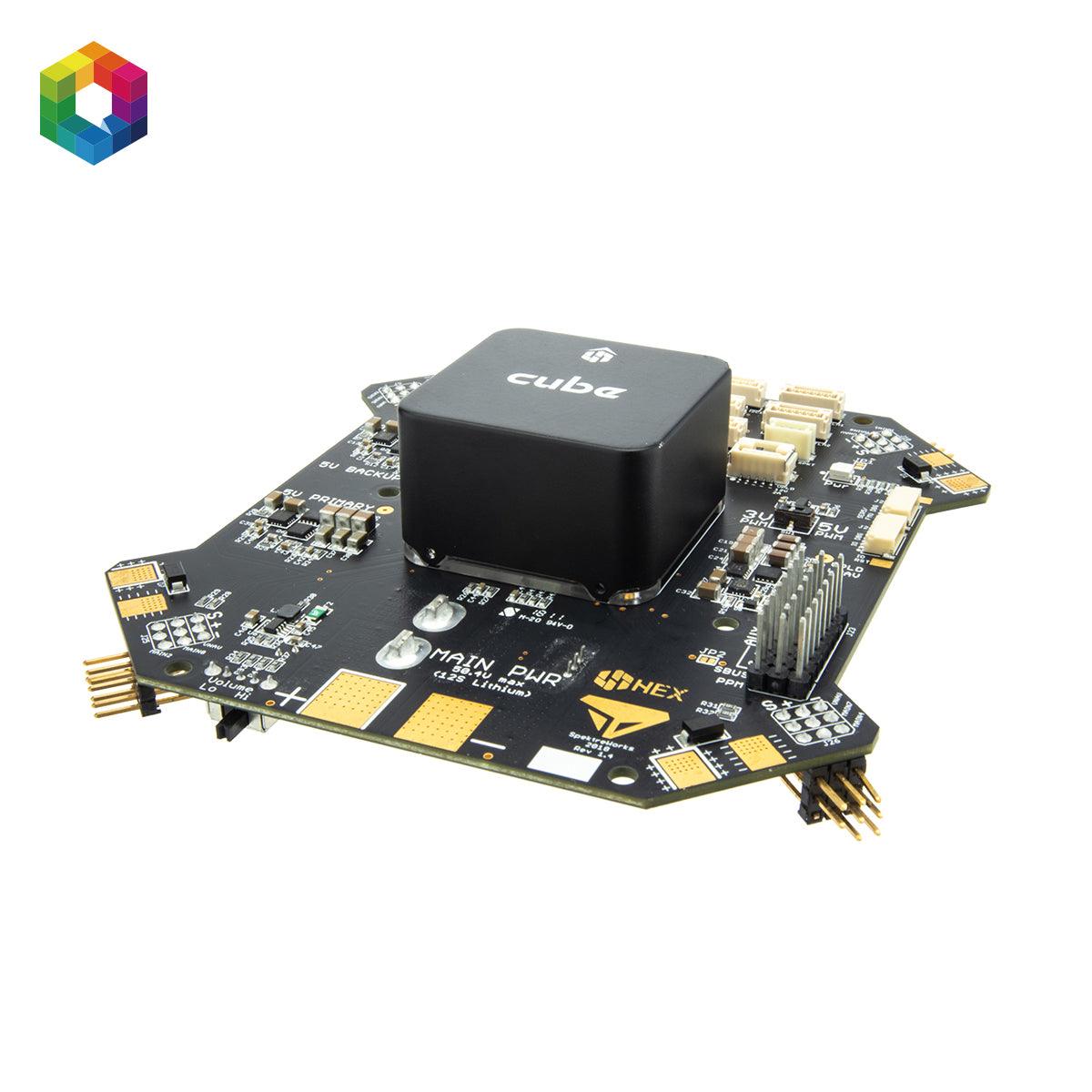

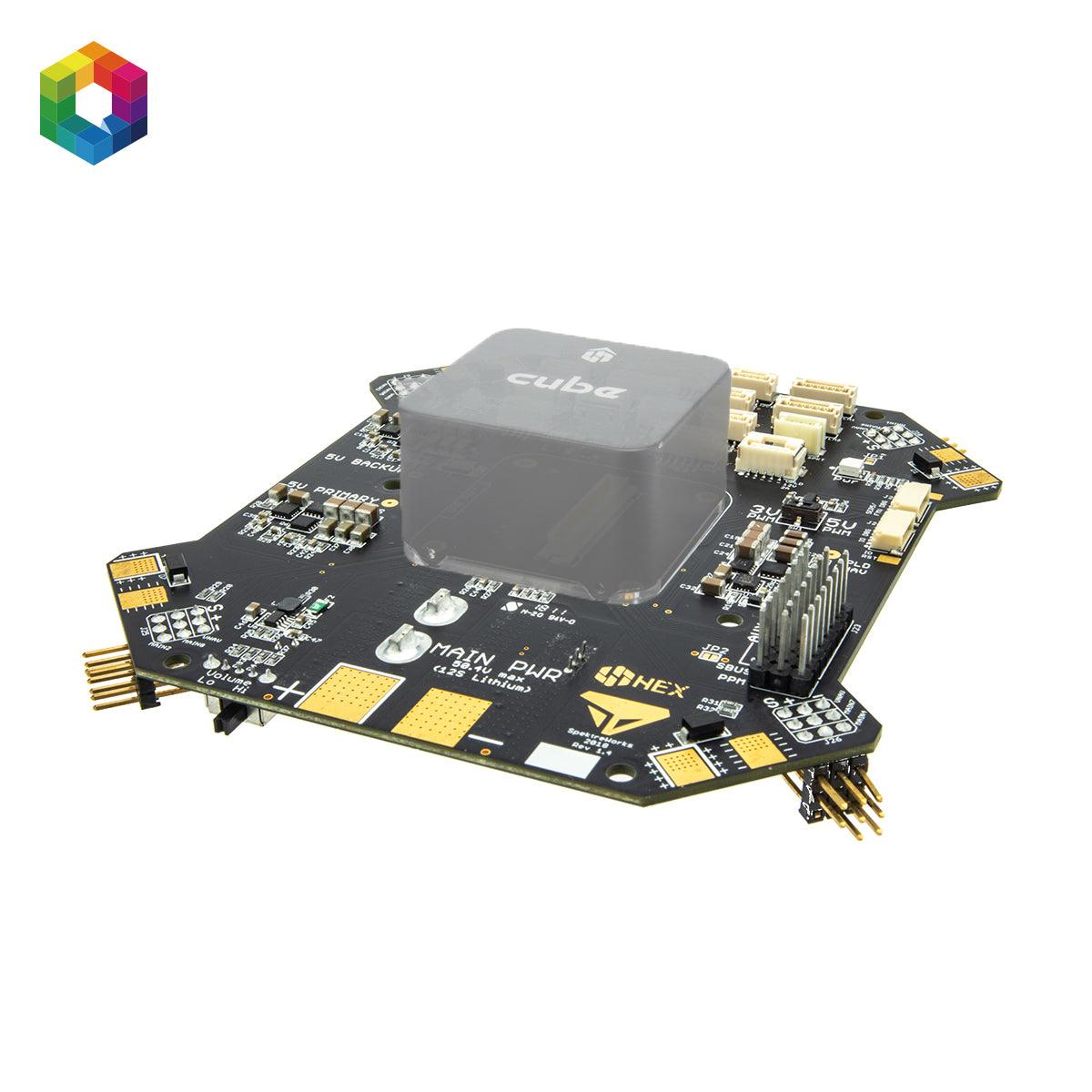

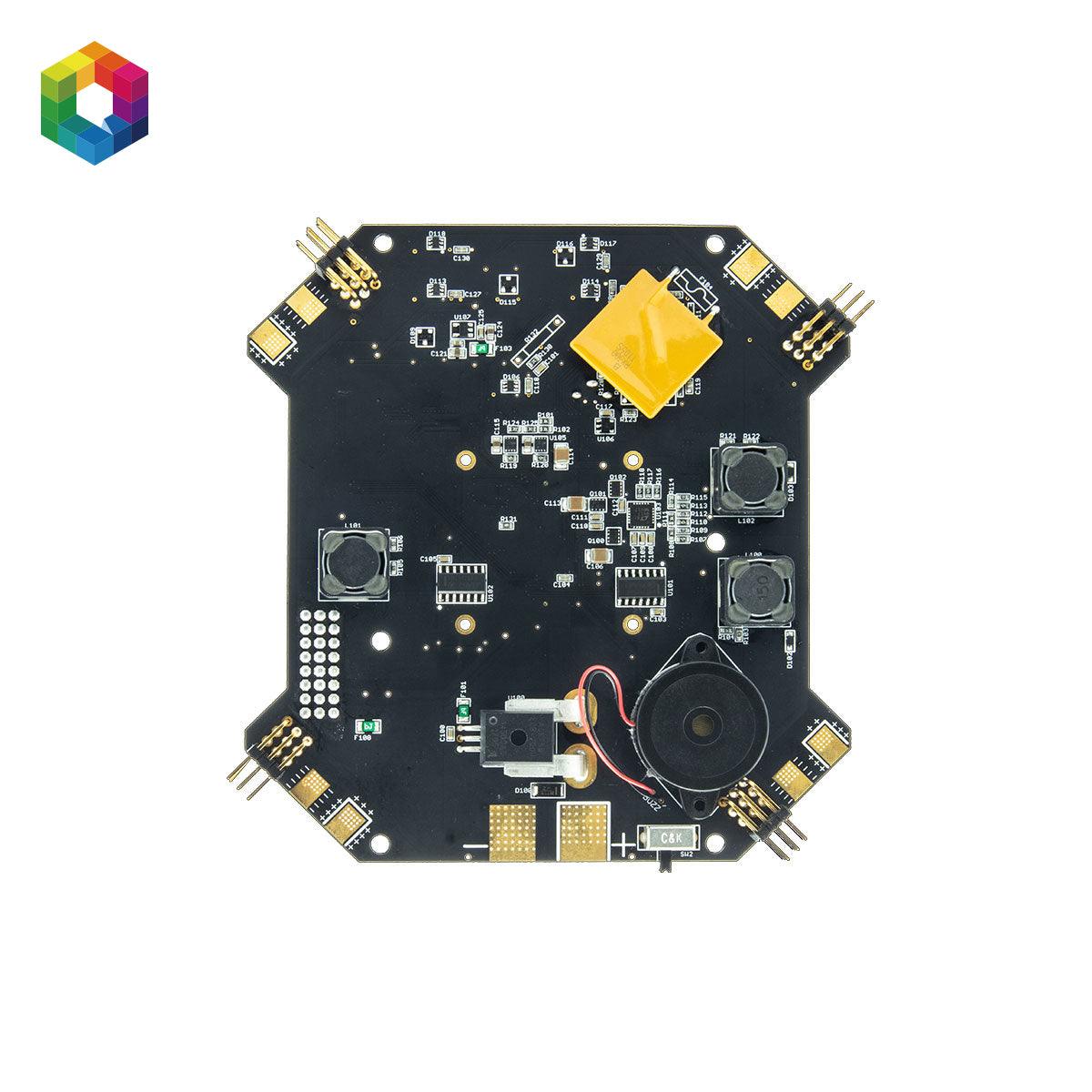

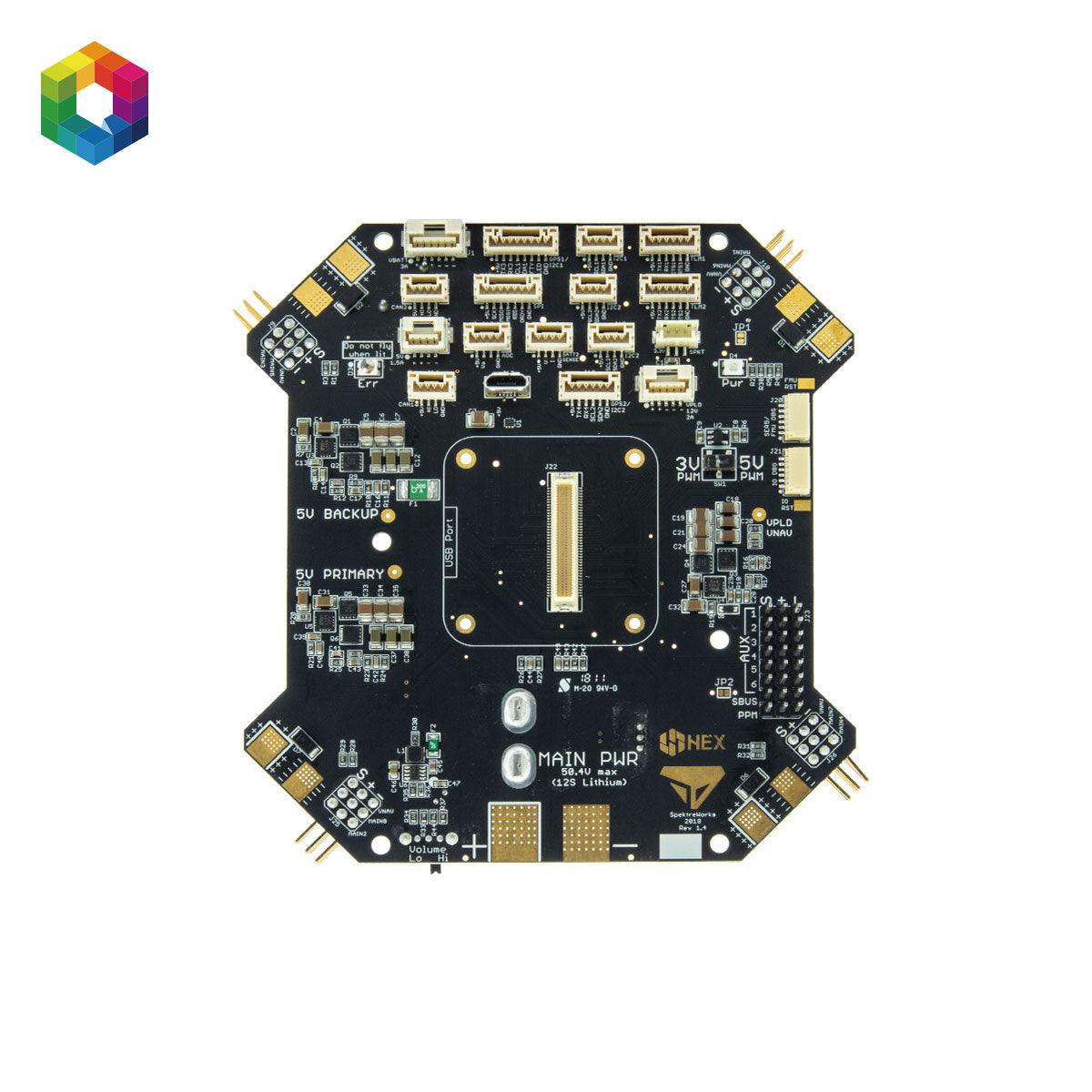

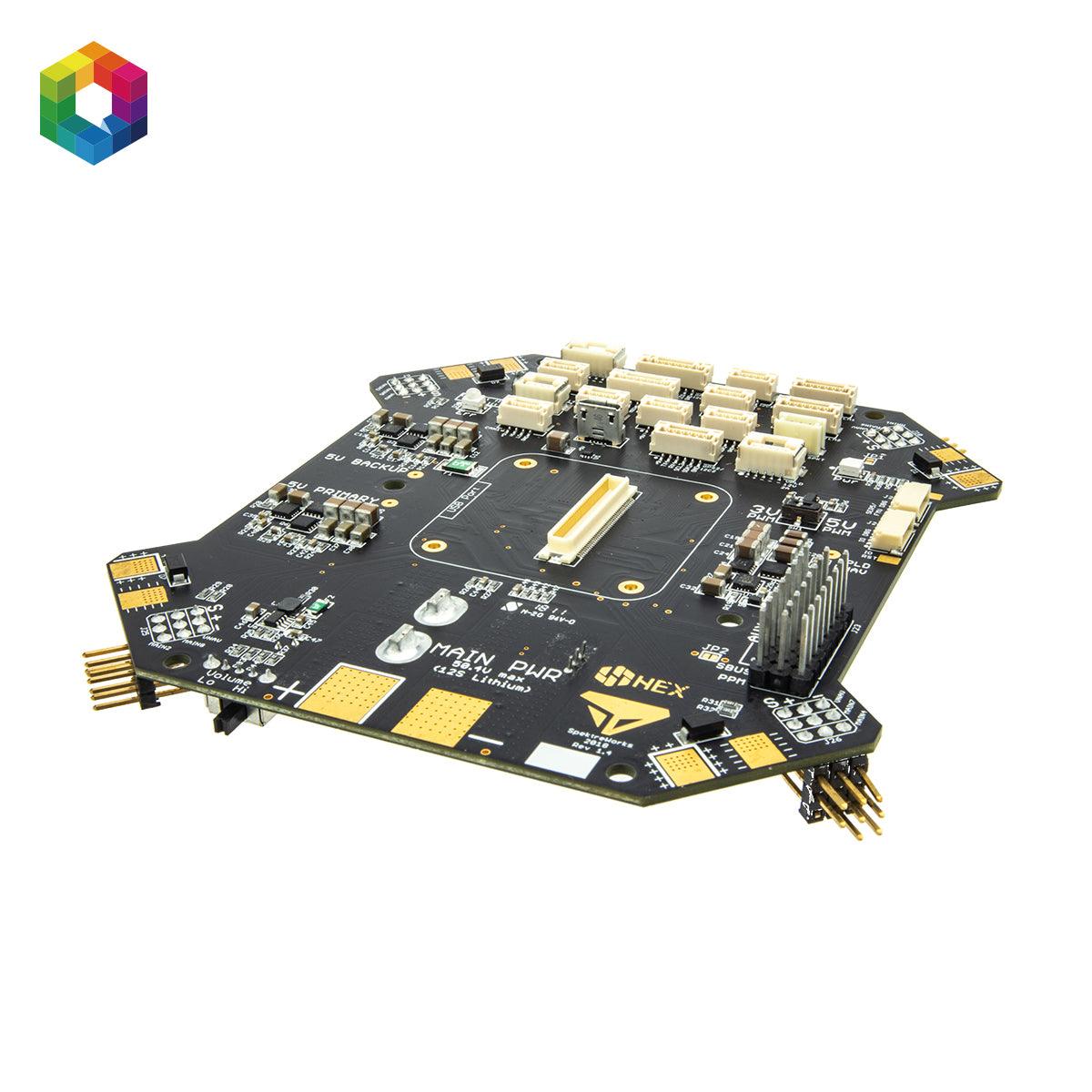

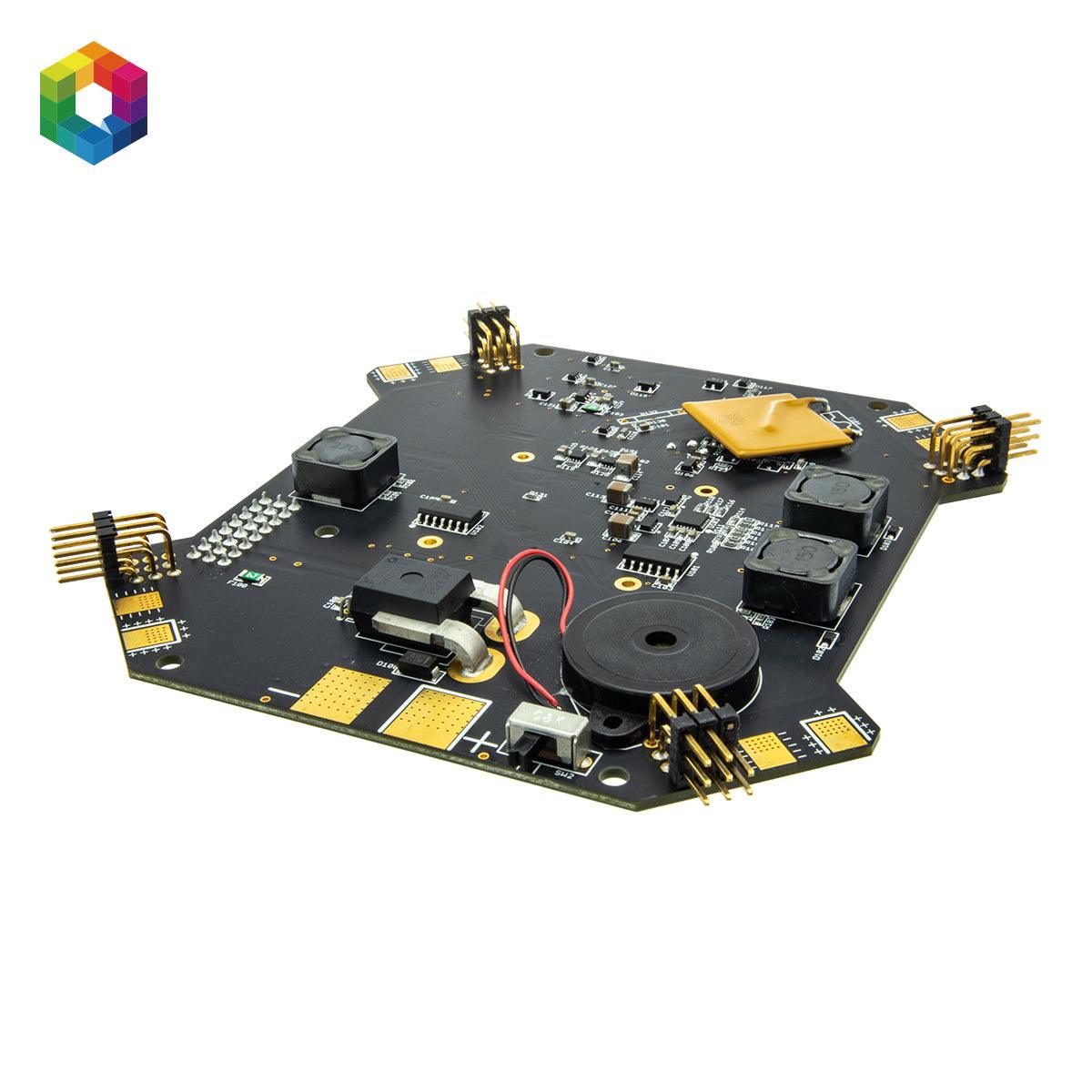

The SpektreWorks Kore Carrier Board is a high-current carrier board and power distribution solution for CubePilot autopilot systems. It is designed for multirotor UAV builds that need integrated power distribution, current and voltage sensing, payload power, and convenient ESC signal routing.
With a built-in PDB rated for up to 140A continuous current, redundant power supplies, payload power outputs, and connector access for Pixhawk Cube functions, the Kore carrier board is suitable for advanced UAV integrations and professional multirotor platforms.
Key Features
- Carrier board for CubePilot autopilots – Designed for Pixhawk 2.1 Cube / CubePilot style autopilot modules.
- Integrated power distribution – Built-in PDB rated up to 140A continuous current with high-current surge support.
- Voltage and current sensing – Integrated sensing for UAV power monitoring.
- Payload power outputs – Includes 5 V, 12 V, and direct battery payload power options with resettable fuses.
- Convenient ESC routing – Power and signal outputs positioned for multirotor frame integration.
- Redundant power supplies – Designed to support flight-critical components.
- Pixhawk Cube connector access – Provides connectors for Cube autopilot functions, including debugging access for IO and FMU processors.
Technical Specifications
| Product type | Carrier board and power distribution board for CubePilot autopilots |
| Battery support | Up to 12-cell lithium battery / 50.4 V |
| Continuous current | Up to 140A continuous |
| Surge current | Up to 280A surges |
| Power distribution | Built-in PDB with ESC power and signal routing |
| Sensing | Built-in voltage and current sense |
| Payload power | 5 V, 12 V, and direct battery power outputs with resettable fuses |
| PWM level selector | Selectable 3.3 V or 5 V PWM voltage level |
| Compatible connector format | Compatible with standard ProfiCNC carrier board connector ports |
Connector and Cable Notes
- Standard cables: 4-pin JST GH and 6-pin JST GH
- 5 V payload power: 4-pin Clik-Mate 1.25 mm
- 12 V payload power: 5-pin Clik-Mate 1.25 mm
- Battery payload power: 6-pin Clik-Mate 1.25 mm
Recommended Use
The Kore carrier board is suitable for multirotor UAV builders who need an integrated carrier board and high-current power distribution setup for a CubePilot autopilot. It is especially useful for larger UAVs with multiple ESCs, payload power requirements, and professional wiring needs.
For compatible CubePilot autopilots and carrier boards, view our Autopilots and Controllers for Drones collection. For related power components, browse Power Management for Drones.
Before You Order
Please note: Cube autopilot sold separately.
This product does not include the Pixhawk 2.1 Cube / CubePilot autopilot module. If you are unsure whether this carrier board is compatible with your Cube autopilot or UAV power setup, please contact Aeroboticshop before ordering.
Support and Assistance
For technical setup information, refer to the CubePilot documentation. If you need help choosing the right carrier board, autopilot, or power distribution setup, please contact Aeroboticshop.
Manufactured by CubePilot.
