Here 3+ RTK GNSS/GPS combo

Here 3+ RTK GNSS/GPS combo

SKU:HX4-06213, HX4-06019

Regular price €379,00 EUR
Regular price Sale price €379,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 3 left

Need more?

This product is available on backorder. Please note that the shipping time can take up to 2 weeks. Items in stock will be shipped directly.

Just add the amount you need and click on "Add to cart".

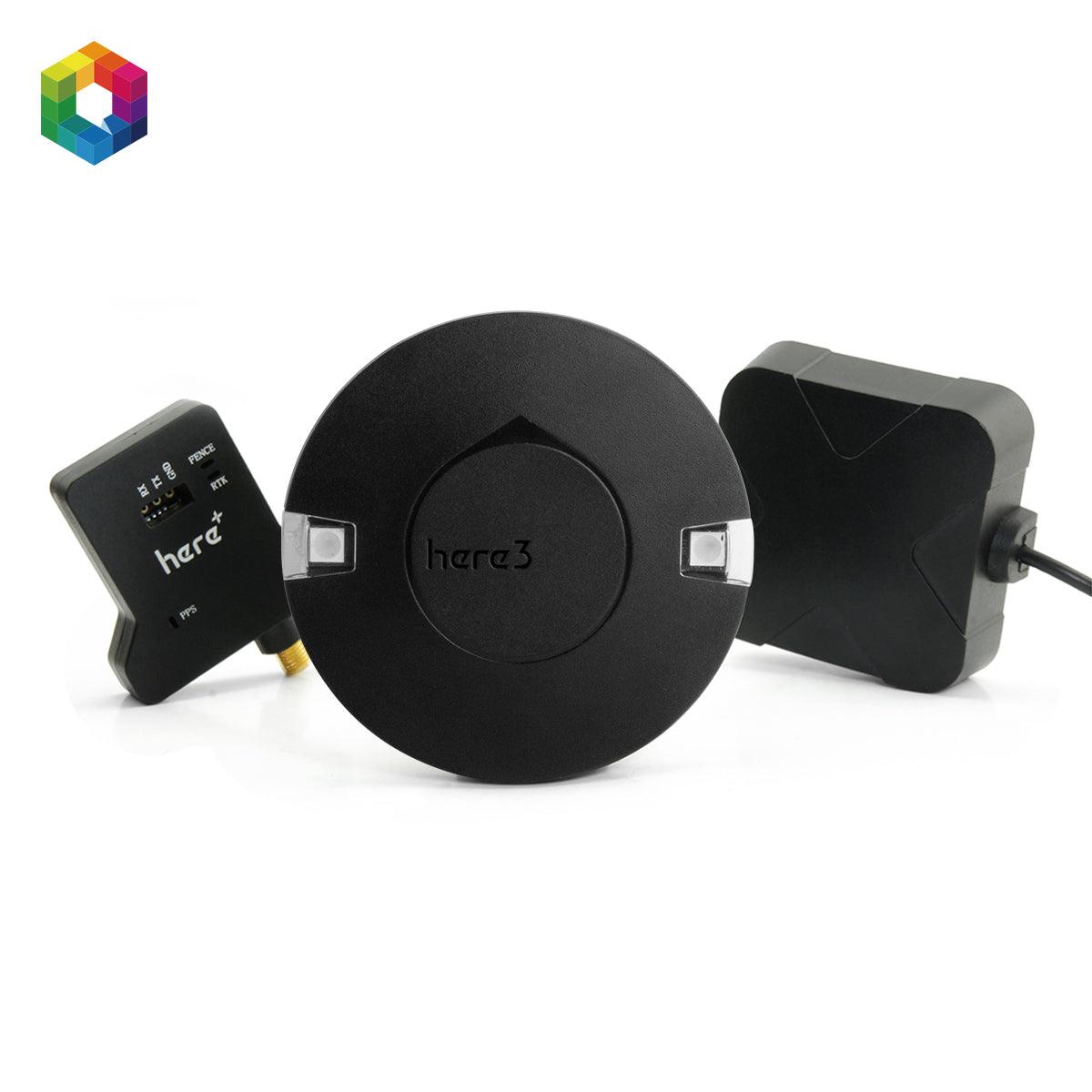

The Here 3+ RTK GNSS/GPS set is a combo set, featuring both the Here 3 and Here+ RTK base. This set provides a cost-effective solution for achieving centimeter-level precision on your drone. The GPS connects easily via the CAN bus on your Cube autopilot and is compatible with most other flight controllers with CAN support.

  • High precision: achieves centimeter-level GNSS positioning for accurate navigation.
  • Integrated RTK: provides fast integration with Real Time Kinematics (RTK) technology.
  • Compact and efficient: the smallest, lightest, and most energy-efficient RTK module.
  • Versatile solution: includes both base and rover variants for a complete solution.
  • Easy connectivity: connects effortlessly via the CAN bus on Cube autopilot and other compatible flight controllers.

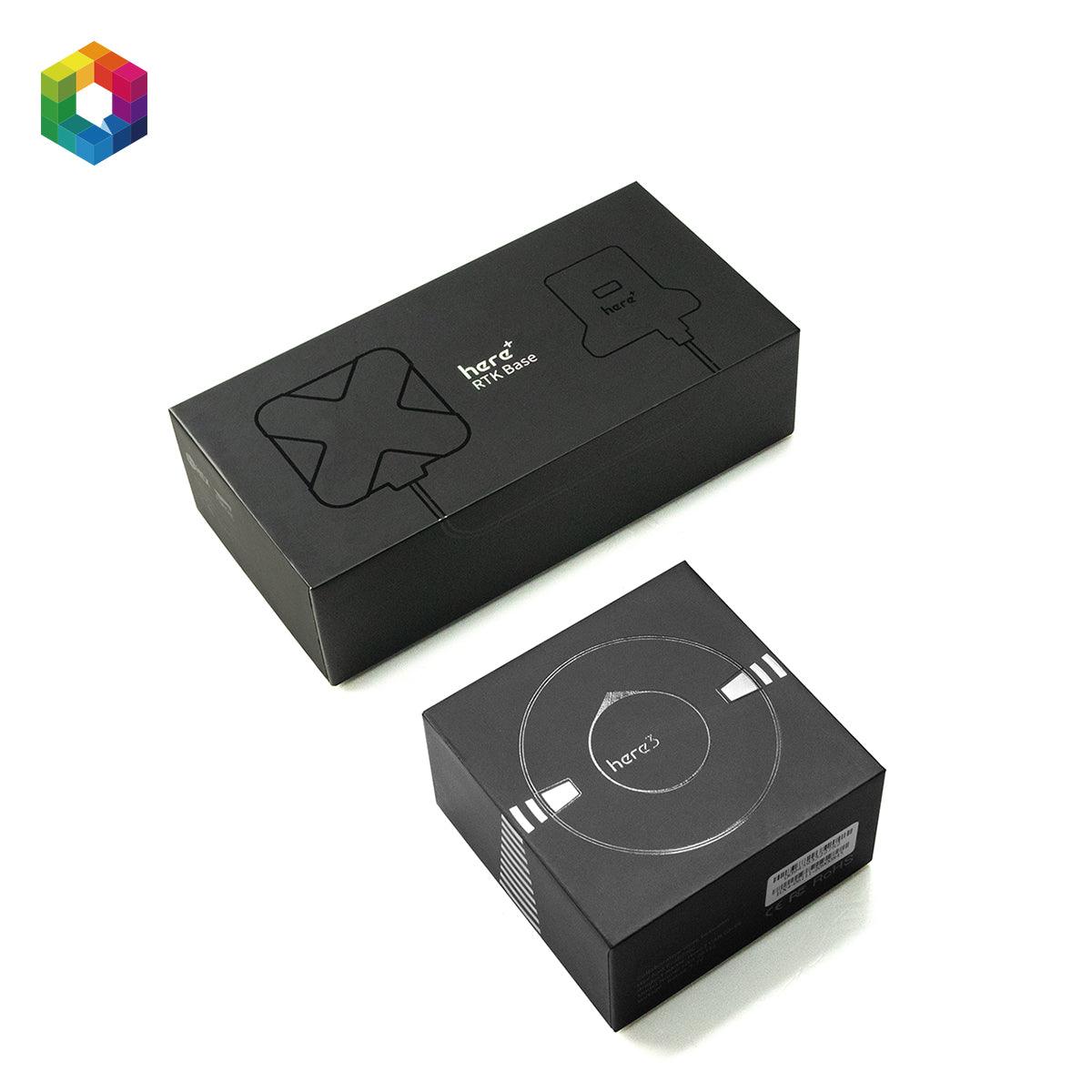

What's inside

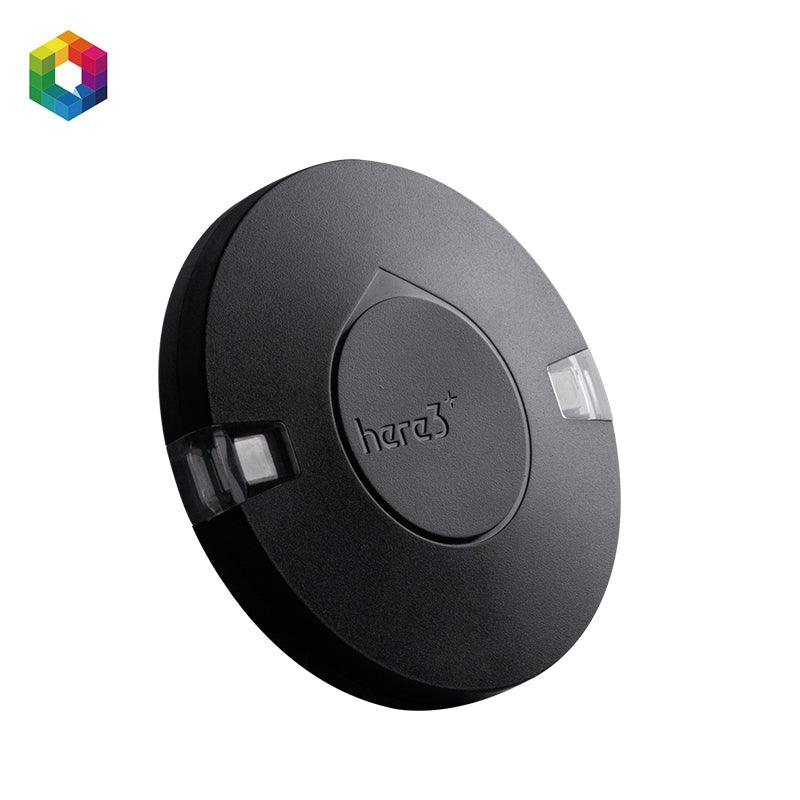

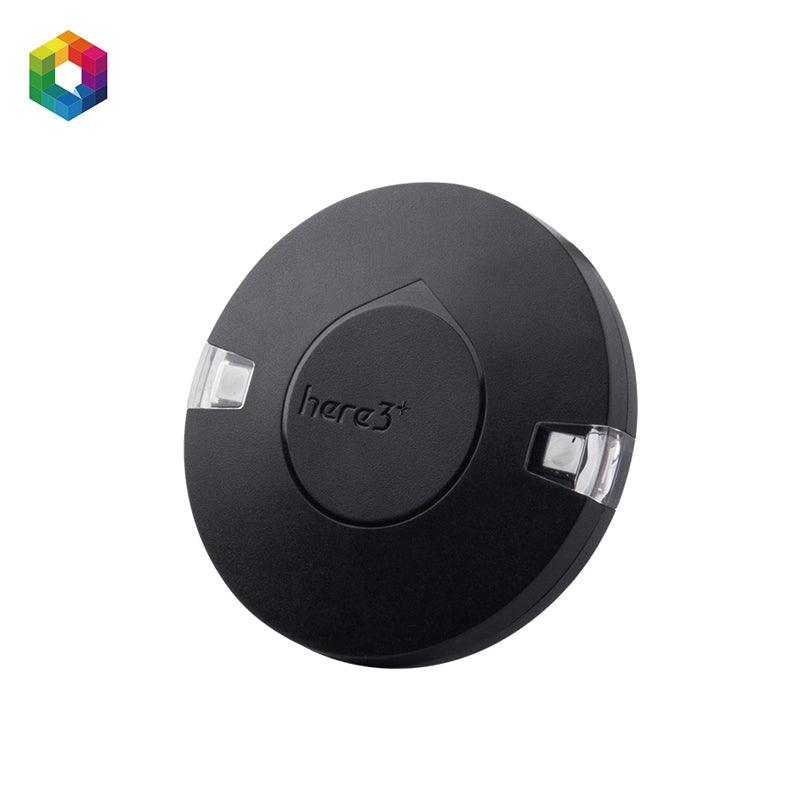

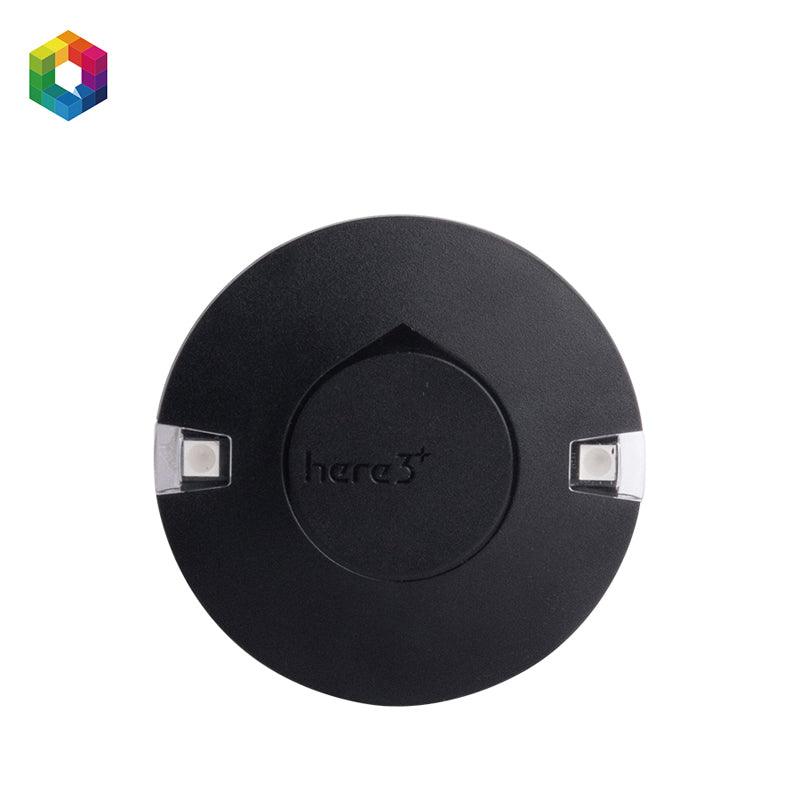

  • 1x Here 3+ RTK GNSS/GPS Rover

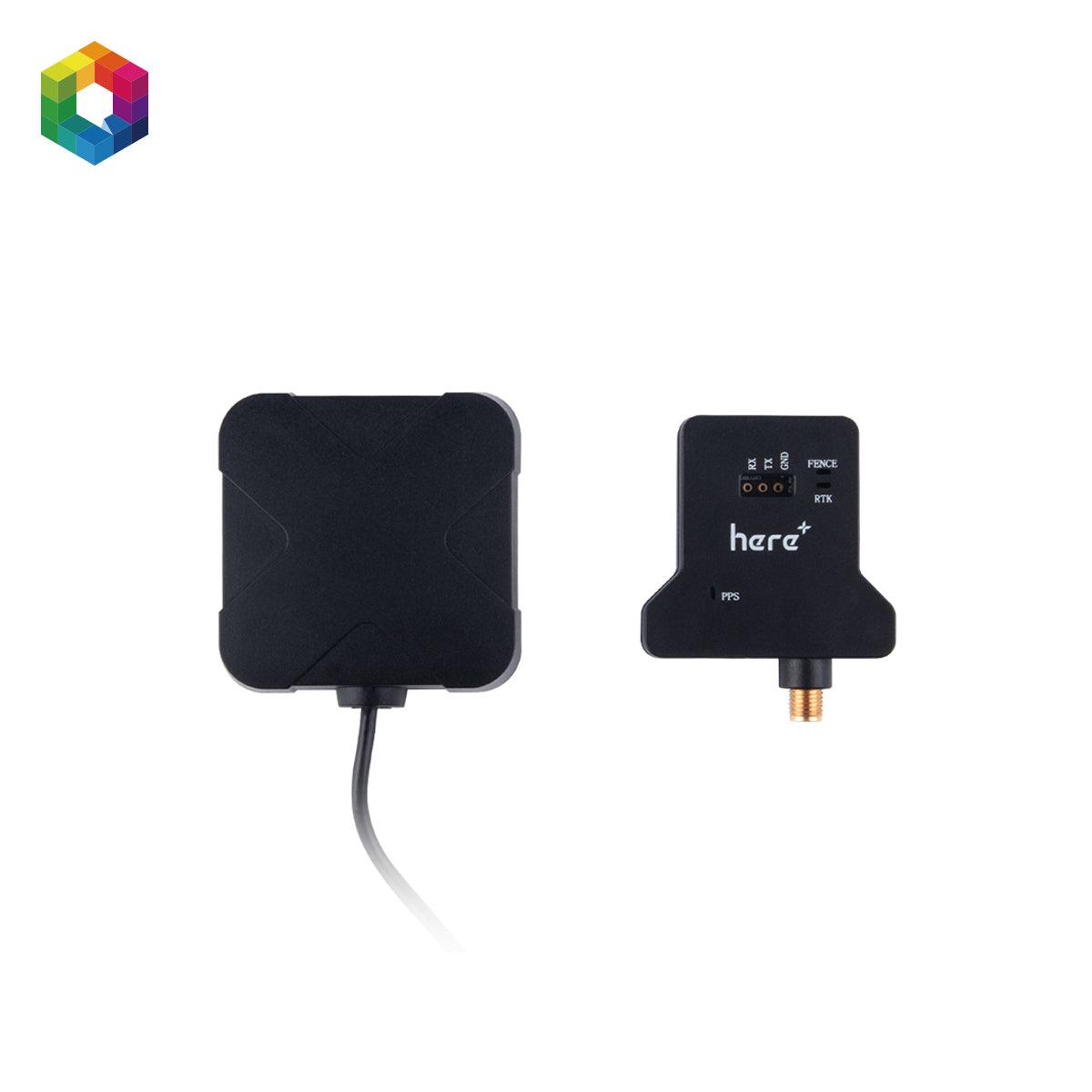

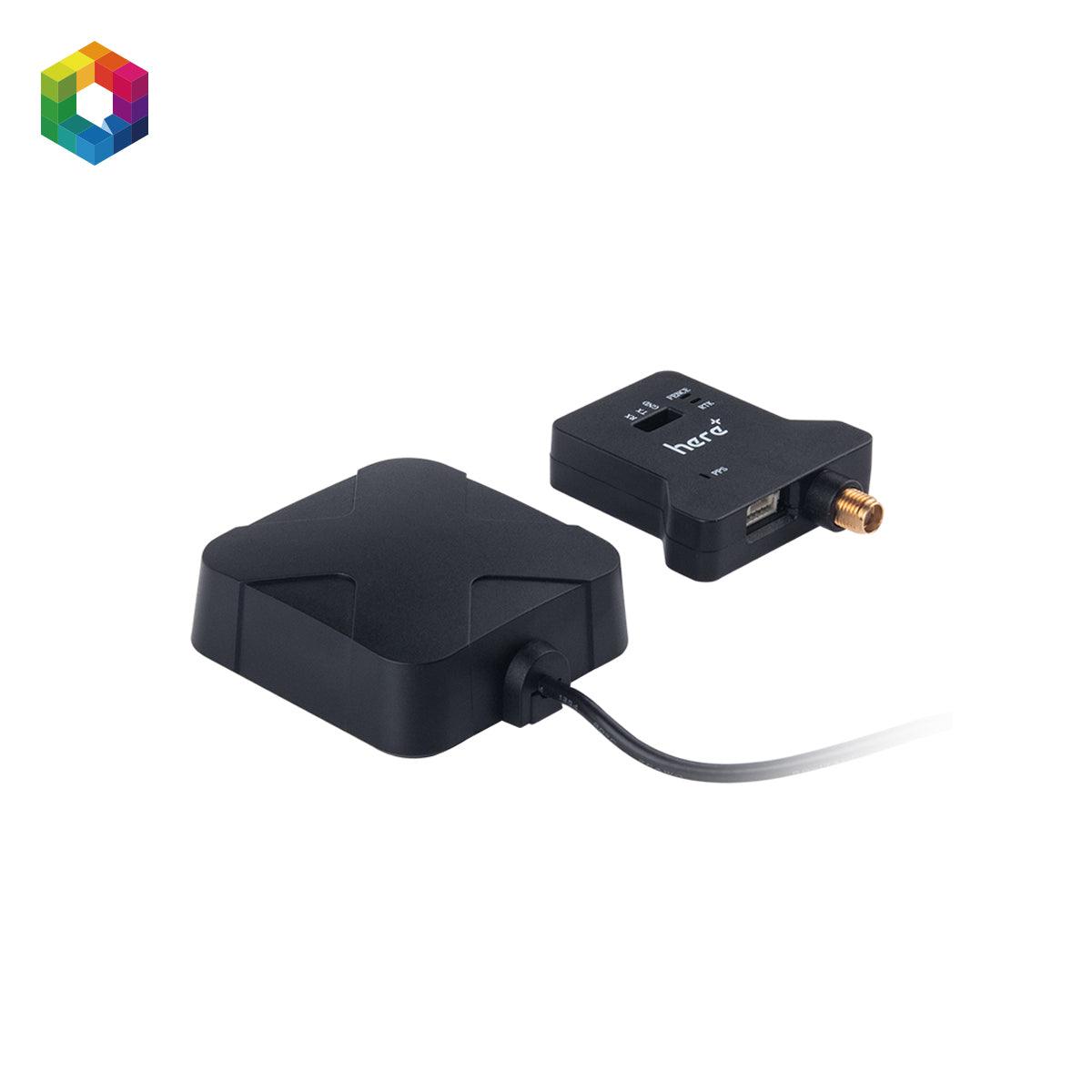

  • 1x Here+ RTK Base

Specifications

  • Receiver type: u-blox M8 high precision GNSS modules (M8P)
  • Satellite constellation: GPS L1C/A, GLONASS L1OF, BeiDou B1I
  • Positioning accuracy:
    • 3D FIX: 2.5 m
    • RTK: 0.025 m
  • Processor: STM32F302
  • IMU sensor: ICM20948
  • Navigation updat rate: max. 8Hz
  • Communication protocol: CAN
  • Operating temperature: -40℃ to 85℃
  • Dimenson rover: 68mm x 68mm x 16mm
  • Weight: 48.8g

Support and assistance

If you need any advice or additional information about this product or your drone project, feel free to contact us.

Manufactured by CubePilot

View full details
