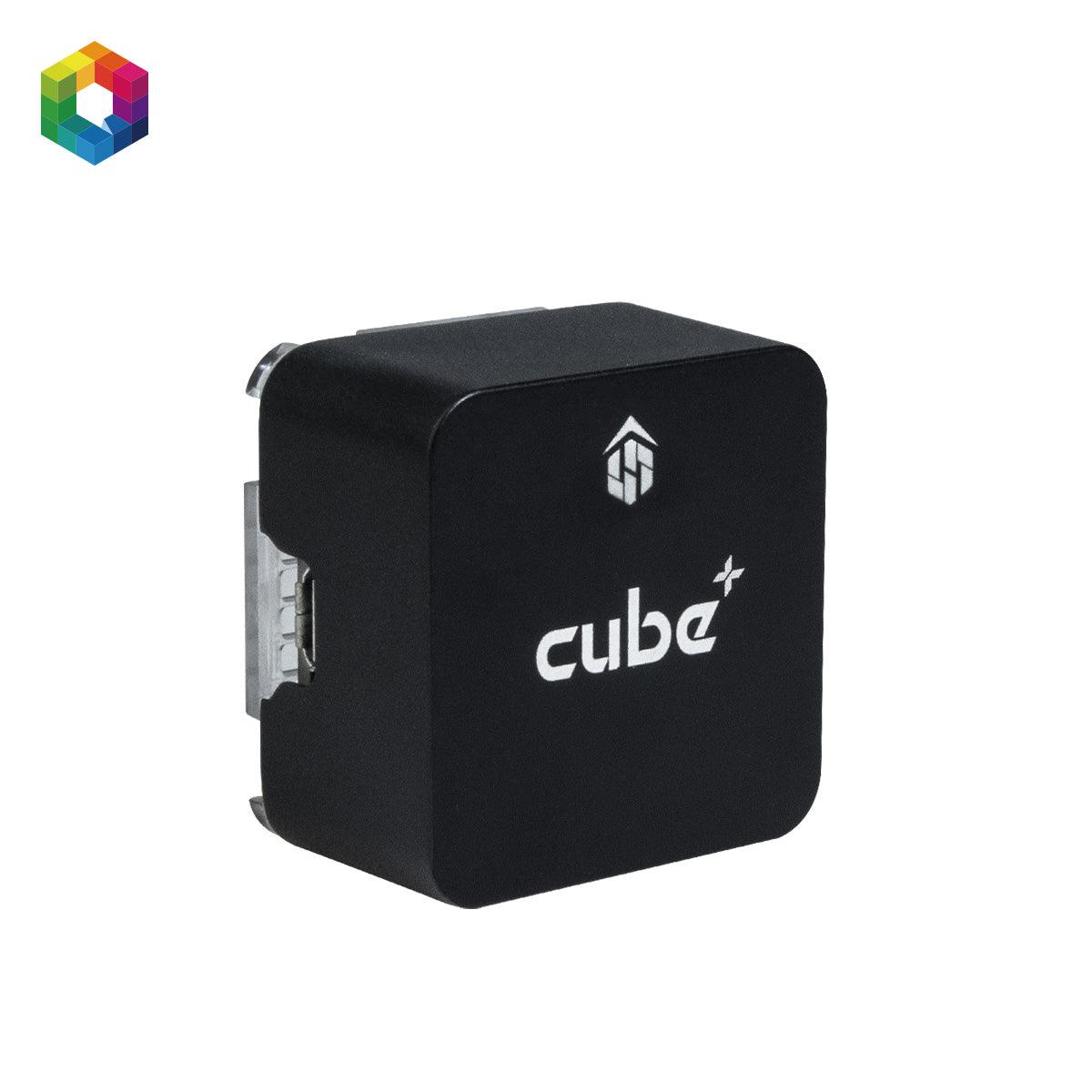

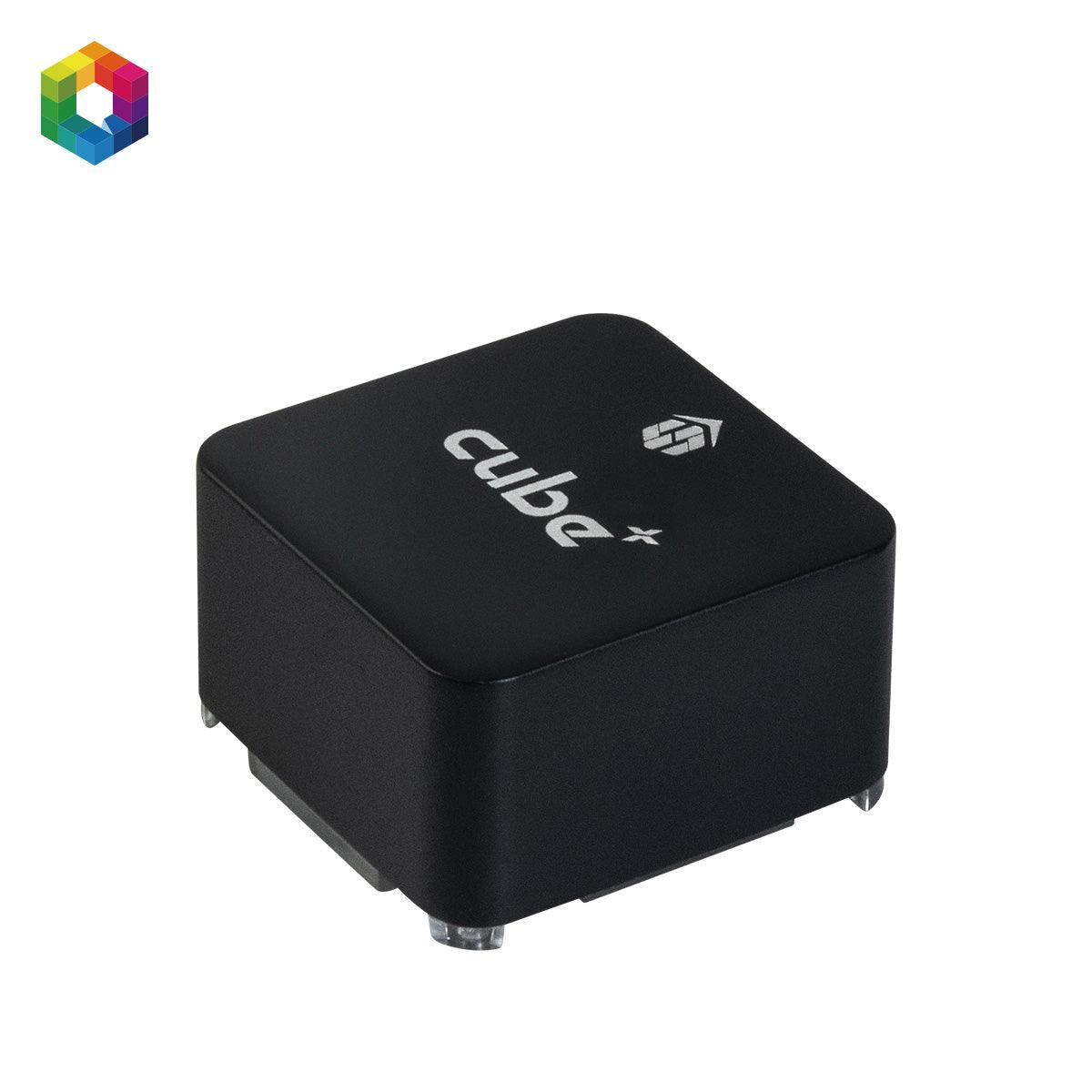

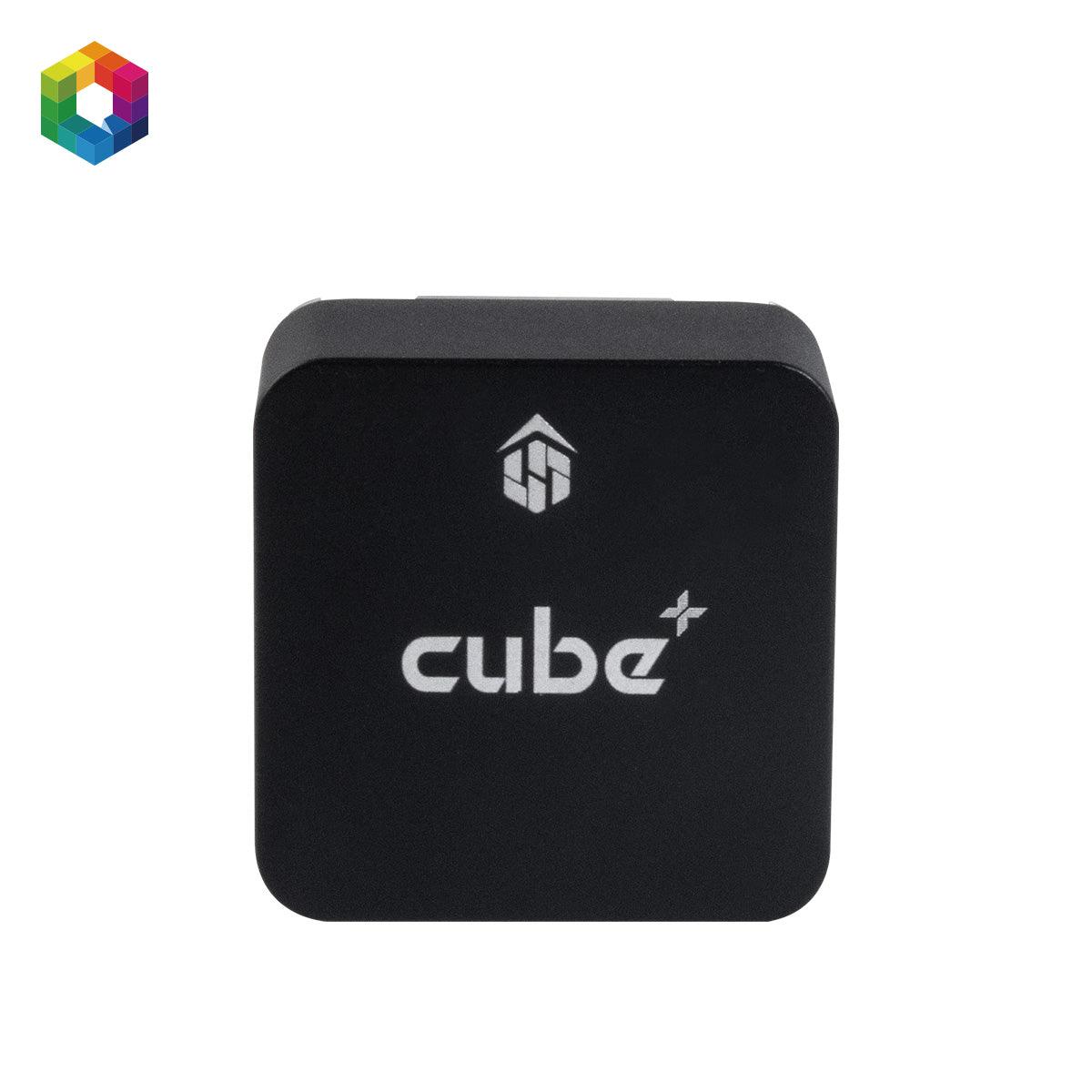

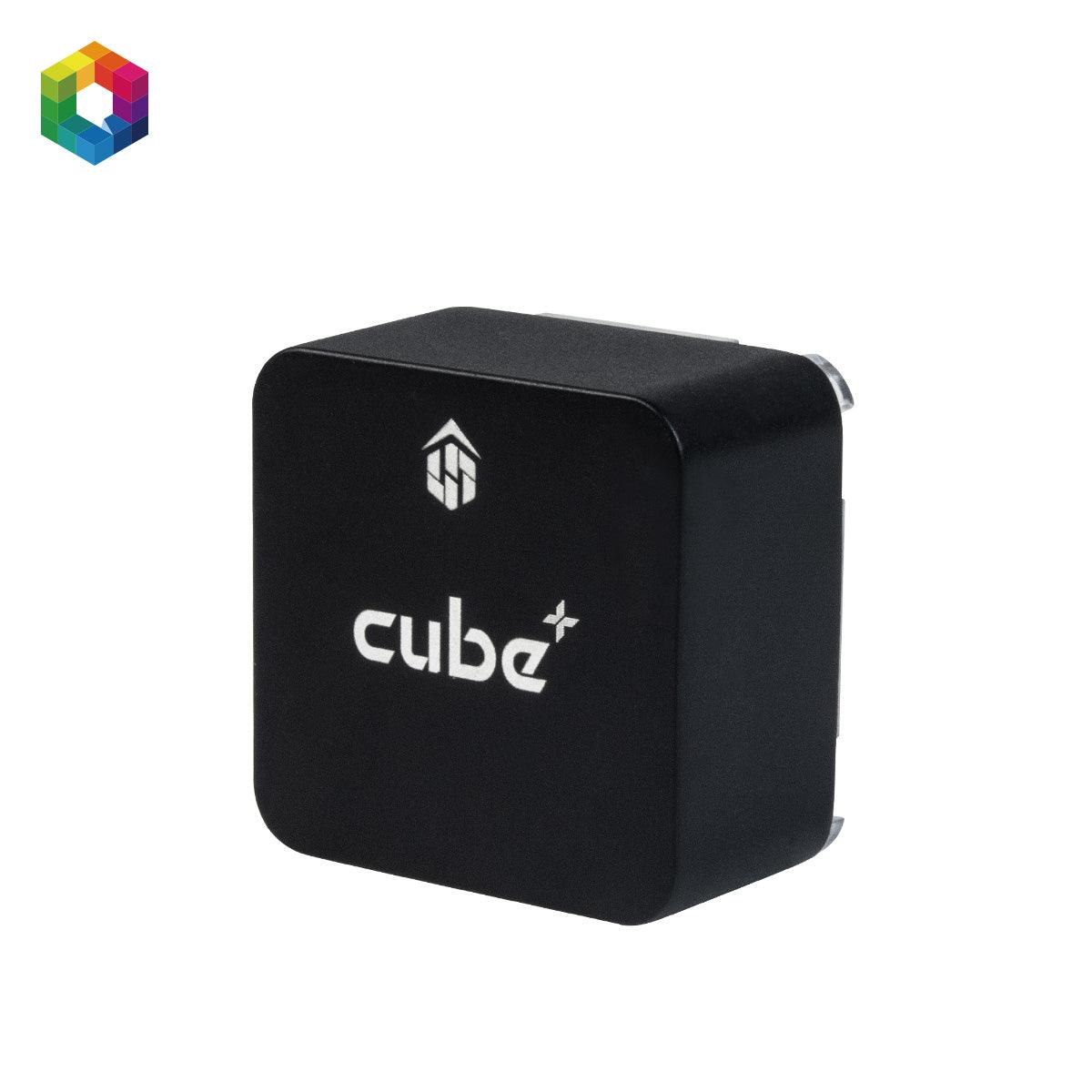

The Cube Black

The Cube Black

SKU:HX4-06005

Regular price €899,00 EUR
Regular price Sale price €899,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Need more?

This product is available on backorder. Please note that the shipping time can take up to 2 weeks. Items in stock will be shipped directly.

Just add the amount you need and click on "Add to cart".

The Cube Black is an End Of Live product. For new designs please switch to the Cube Orange+. If you need this product, please contact us before placing a order.

Specifications

  • STM32F427 Rev 3 Flight management unit
  • STM32F100 I/O processor with pass through capabilities for failsafe
  • 3 IMU's
  • 1 Fixed 10 Axis IMU on the main Main board. (MPU9250 3 axis Accell, 3 axis gyro, and 3 axis mag, MS5611 Barometer)
  • 2 Vibration Isolated and heat controlled 9DOF IMU's and an isolated Baro. (MPU9250 3 axis Accell, 3 axis gyro, and 3 axis mag, LSM303D 3 axis Accelerometer, 3Axis Magnatometer, L3GD20 3 Axis GyroMS5611 Barometer)

I/O ports

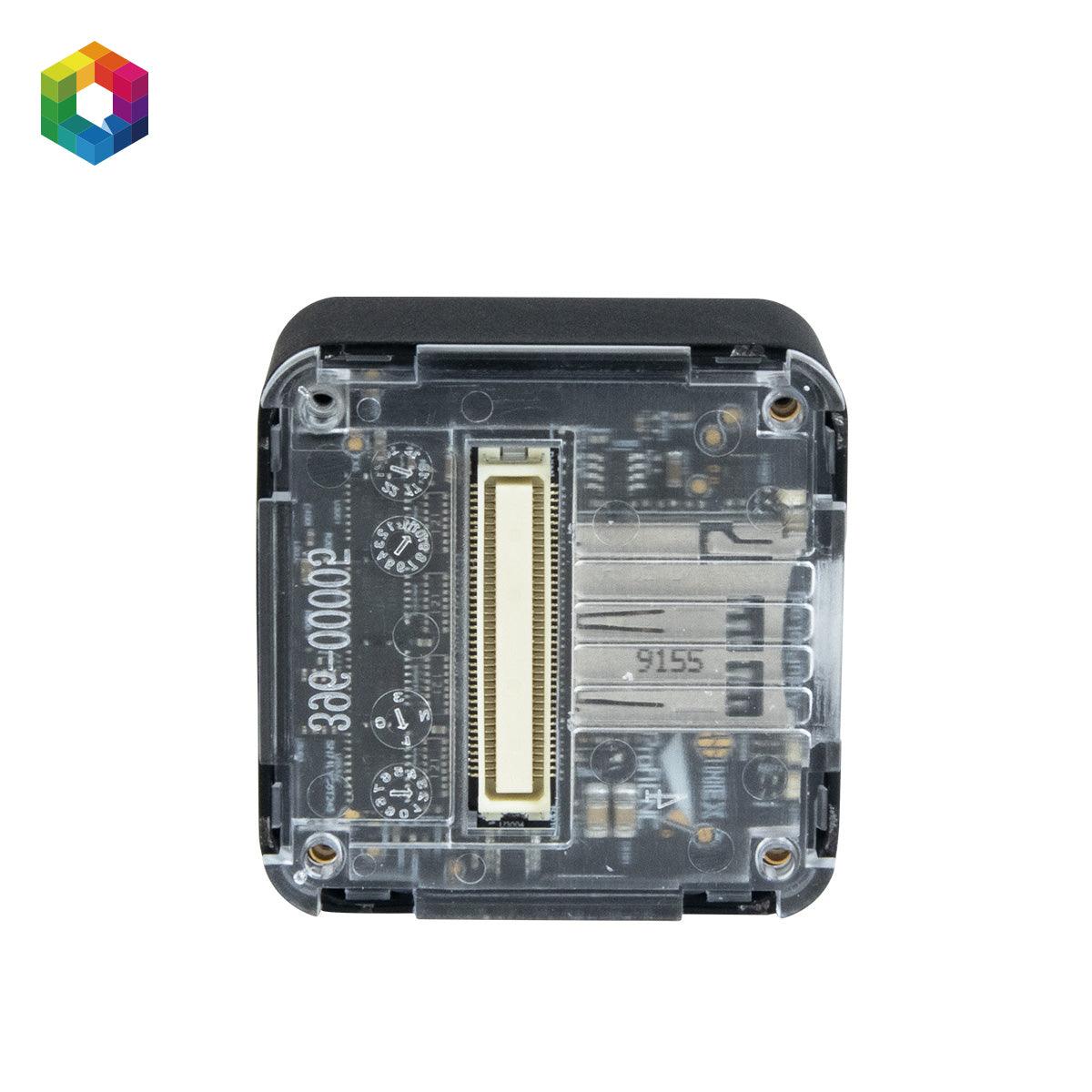

  • All connections are via an 80 pin DF17 connector on the base. the following connections are included.
  • 2x CAN (pins reserved for a 3rd Can bus on next years model)
  • 2x I2C
  • 5x Serial (1 reserved for debug)
  • 2x SWD debug ports
  • 2x Power input V+I
  • 1x Analogue input (one of the power inputs can be used as Analogue if you need)
  • Buzzer raw pwm
  • Safety switch
  • 8 x I/O connected PWM out (Solder option for 3.3 or 5v levels, default 3.3)(opto drive capable 10mA each)
  • 6 x Aux FMU connected I/O (PWM or alternate function)
  • Servo rail I/O backup power (10.5v Max)
  • 2x 5.4v power in pins. All other pins are reserved DNC
All information and how to install the flightcontroller is found on: https://docs.cubepilot.org/user-guides/autopilot/the-cube-module-overview
