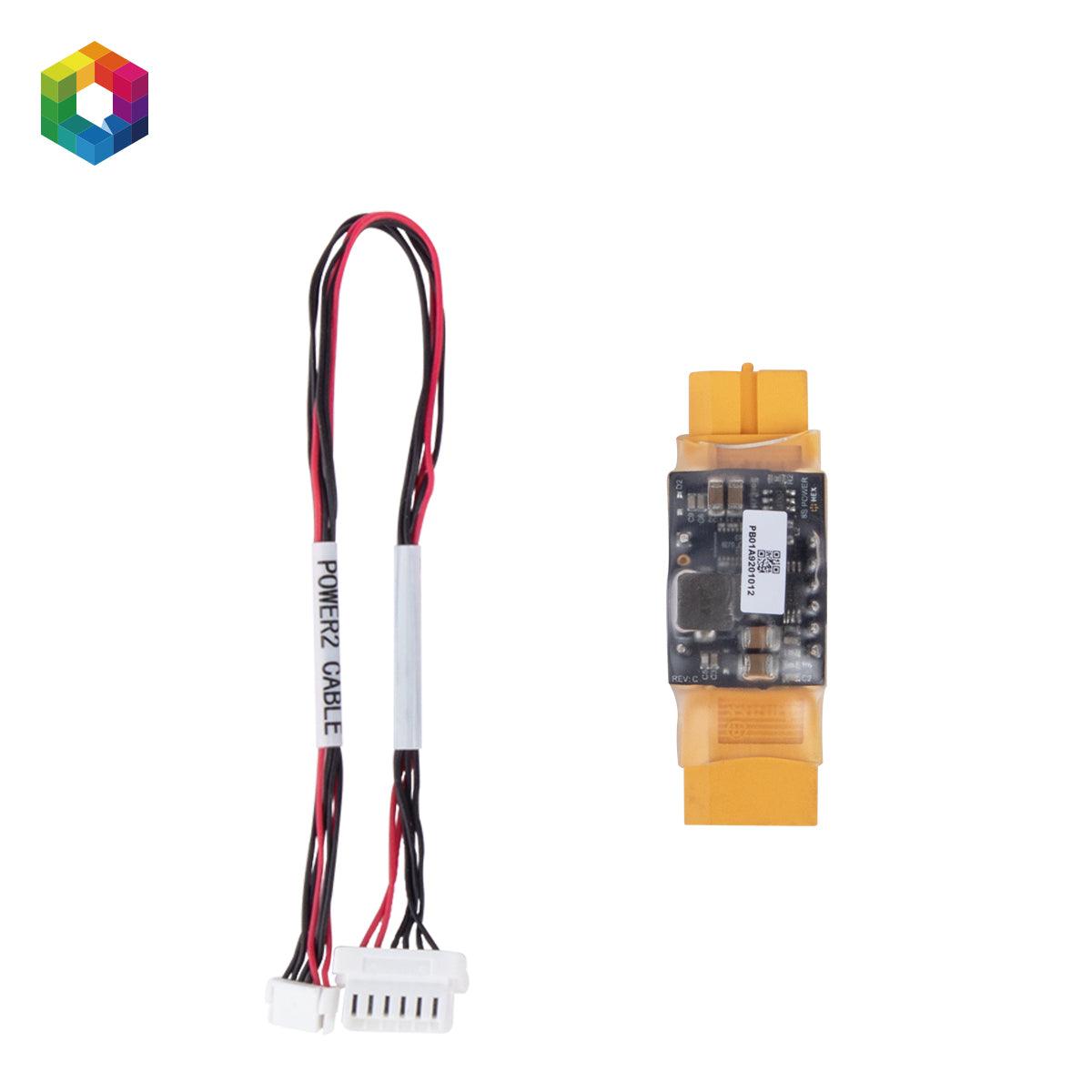

CubePilot Power Brick Mini for Pixhawk 2.1 and Cube Autopilots
The CubePilot Power Brick Mini is a compact power module for Pixhawk 2.1 and CubePilot autopilot systems. It provides a stable power supply to the Cube while also sending current and voltage measurements to the autopilot for battery monitoring.
This module is useful for drone builders who need a lightweight power module for compact UAVs, robotics platforms, and Pixhawk-based systems. It connects to the POWER1 port on the Cube carrier board and can be used with POWER2 when a second battery monitor is installed.
Key Features
- Power module for Pixhawk 2.1 / Cube – Designed to power CubePilot autopilot systems.
- Current and voltage monitoring – Provides battery telemetry data to the autopilot.
- Compact and lightweight – 14 g module suitable for smaller UAV builds.
- Supports up to 8S input – Suitable for battery systems up to 8S.
- 30A continuous current sensing – Supports current monitoring up to 30A continuous.
- XT60 option available – Available with or without XT60 connector depending on your setup.
What's Included

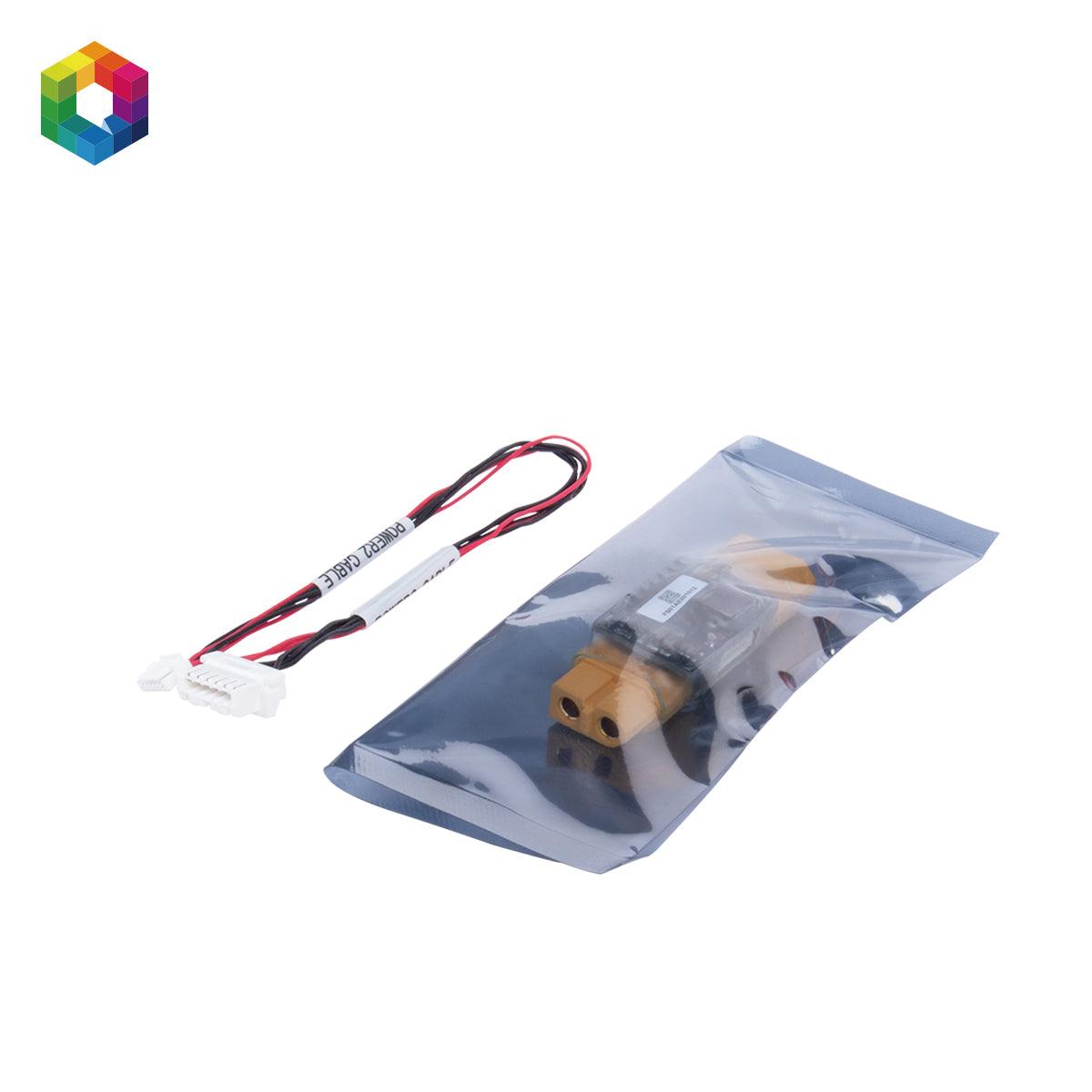

- 1x Power Brick Mini, with or without XT60 depending on selected variant
Technical Specifications
| Product type | Power module / current and voltage sensor |
| Maximum input voltage | 8S |
| Continuous current sensing | 30A |
| Burst current | 100A maximum burst |
| Connector options | XT60 or without XT60 |
| Weight | 14 g |
| Size | 53 x 18 x 14 mm |
Connection Notes
Connect the Power Brick Mini to the POWER1 port using the power cable. If your setup uses a second battery monitor, connect that monitor to the POWER2 port. The Cube autopilot powers on when the battery is connected.
The XT60 side of the power module connects to the motor system and other loads, depending on your wiring configuration.
Recommended Use
The CubePilot Power Brick Mini is suitable for compact UAV builds that need reliable autopilot power and battery telemetry. For higher-current systems, consider a power sensor or power module with a higher current rating.
For related power modules, BECs, and sensors, view our Power Management for Drones collection.
Support and Assistance
If you need help choosing the right power module or current sensor for your CubePilot setup, please contact Aeroboticshop.
Manufactured by CubePilot.
